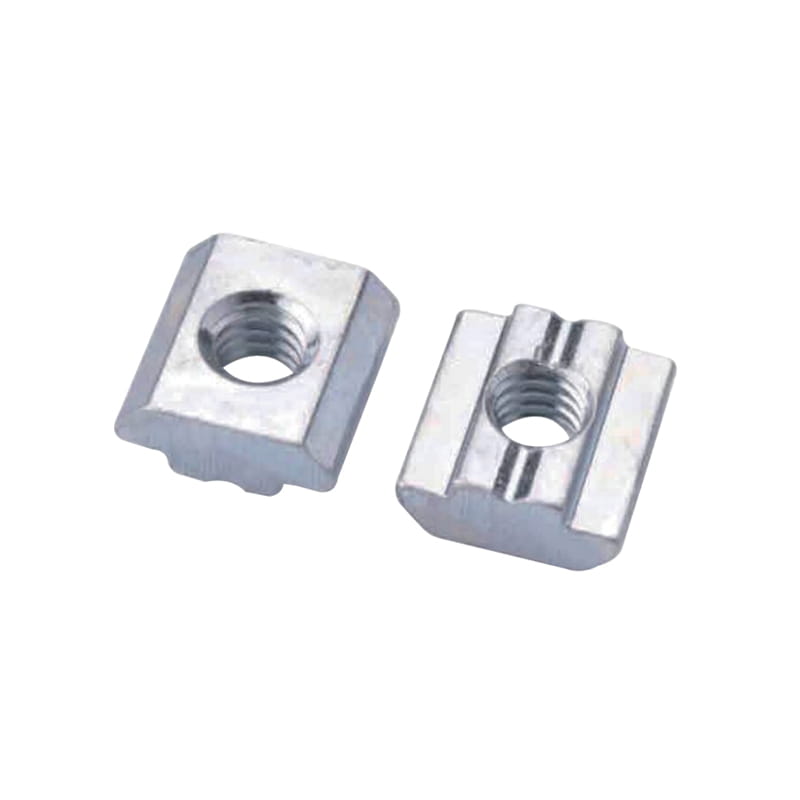

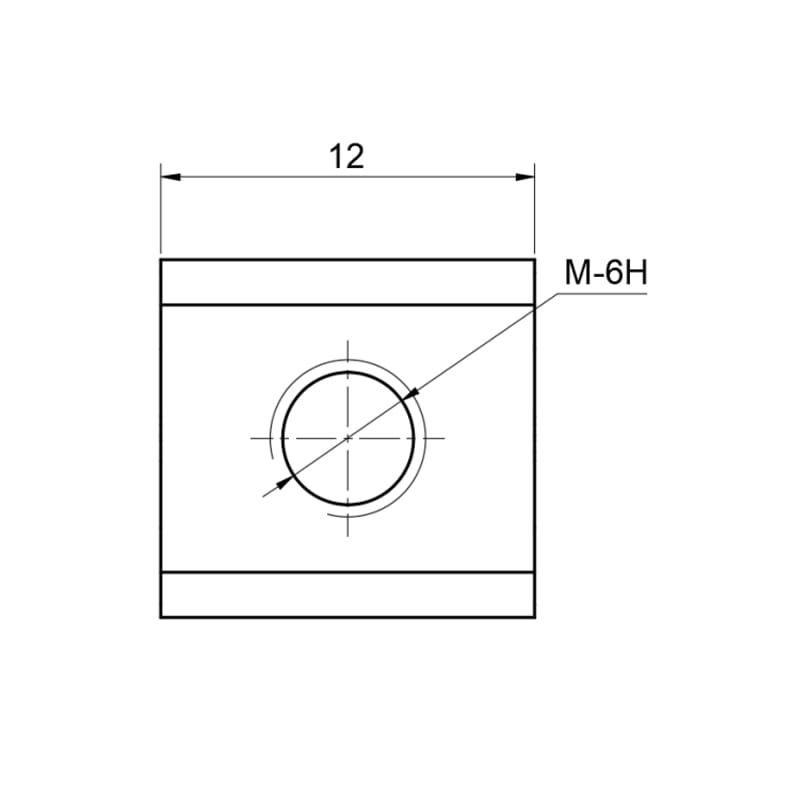

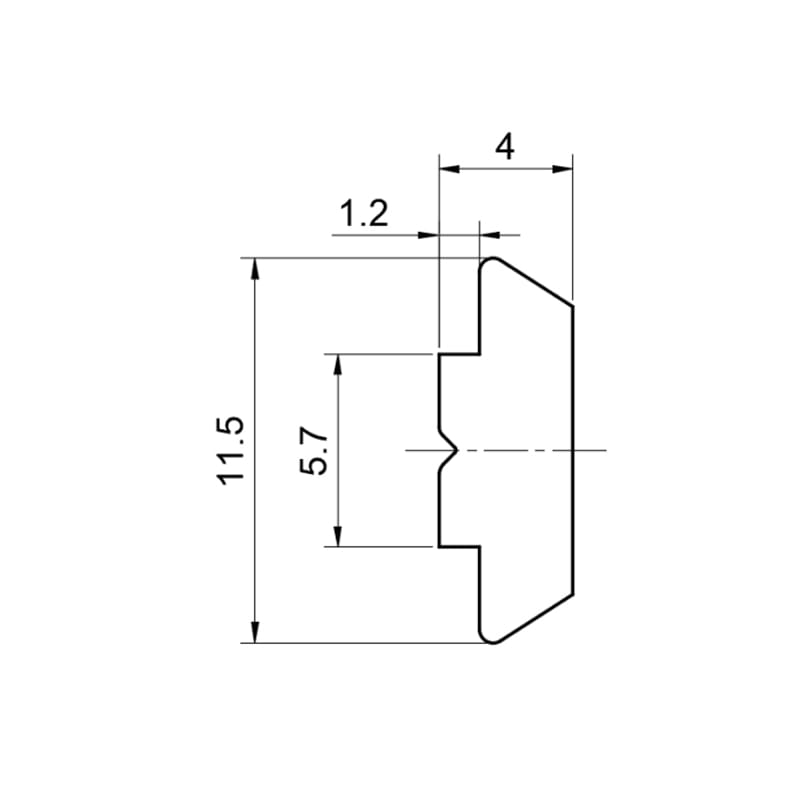

Carbon steel /Stainless steel slider nut slot 6

Part No.	Thread	Surface	Material	Weight(g)
2101.006.000	M3	Zinc plated	Carbon steel	3.40
2101.006.001	M4	Zinc plated	Carbon steel	3.10
2101.006.002	M5	Zinc plated	Carbon steel	2.80
2101.006.003	M6	Zinc plated	Carbon steel	2.50
2107.006.000	M3	Plain	SS304	3.40
2107.006.001	M4	Plain	SS304	3.10
2107.006.002	M5	Plain	SS304	2.80
2107.006.003	M6	Plain	SS304	2.40

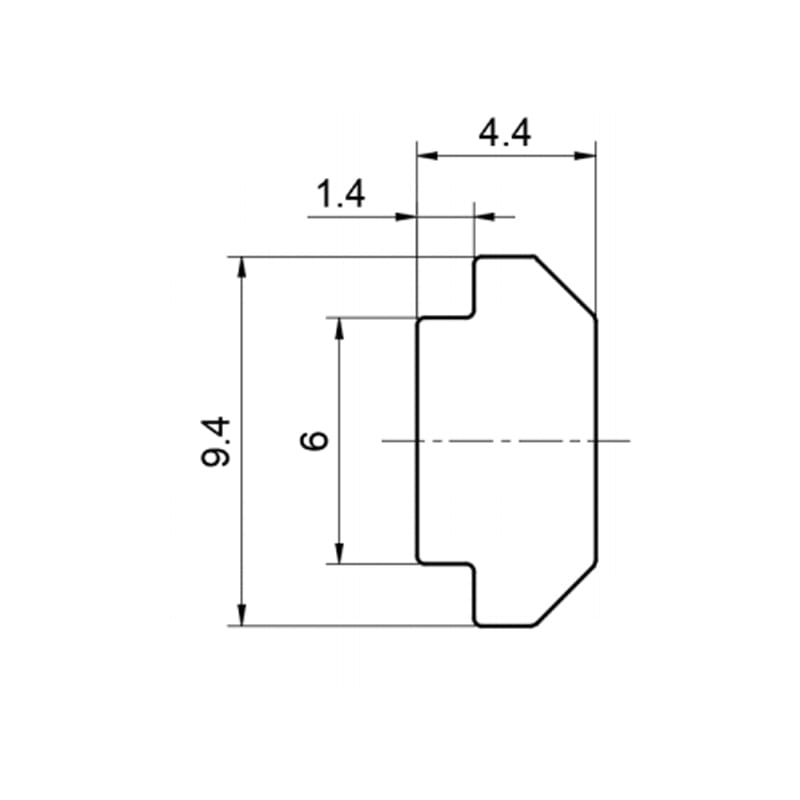

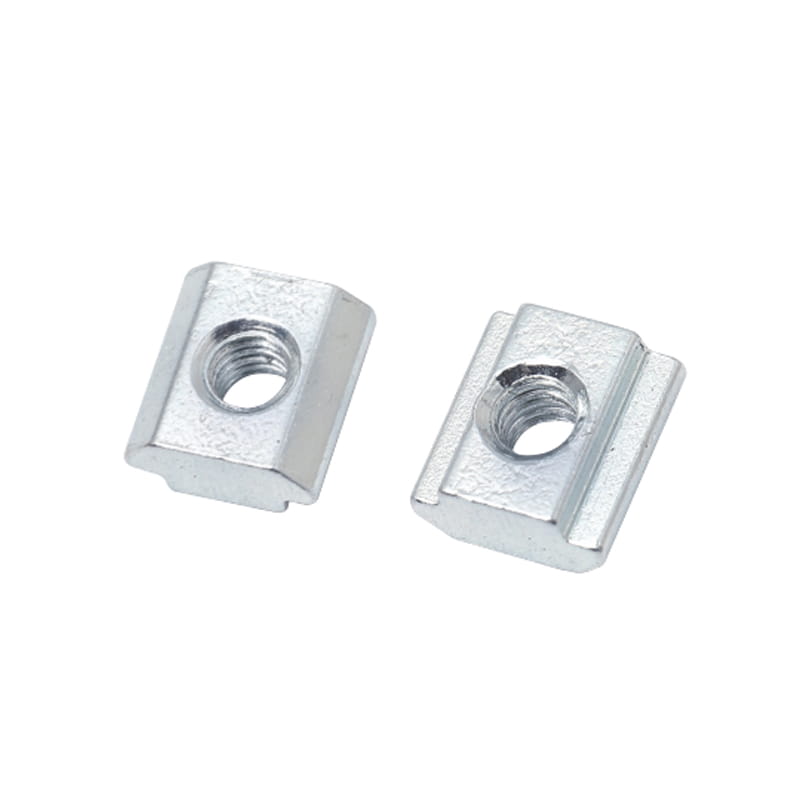

Carbon steel slider nut slot 6

Part No.	Thread	Surface	Material	Weight(g)
2110.006.000	M3	Zinc plated	Carbon steel	3.00
2110.006.001	M4	Zinc plated	Carbon steel	2.70
2110.006.002	M5	Zinc plated	Carbon steel	2.40
2110.006.003	M6	Zinc plated	Carbon steel	2.10

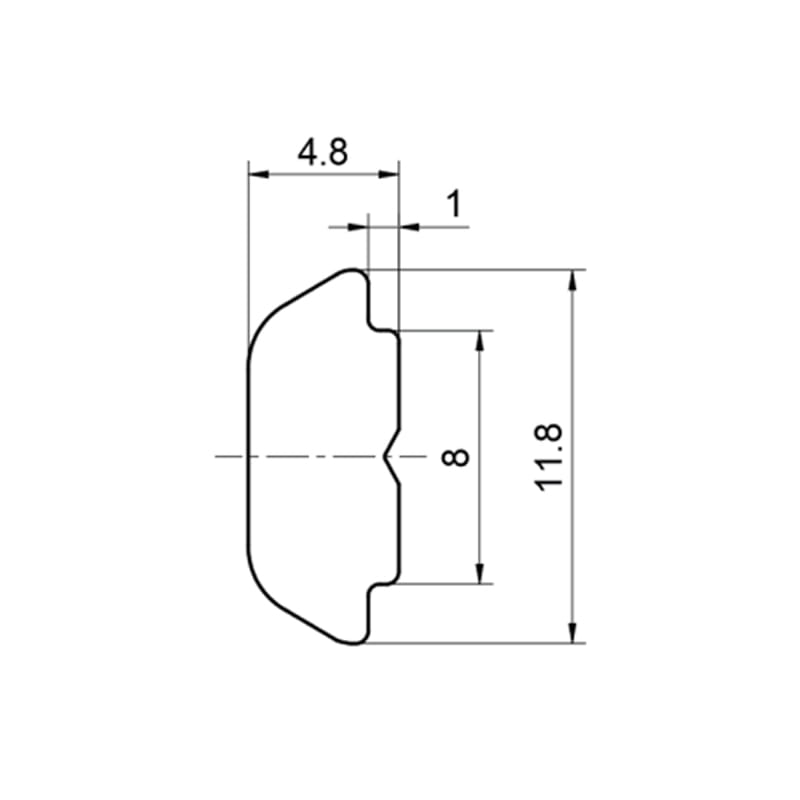

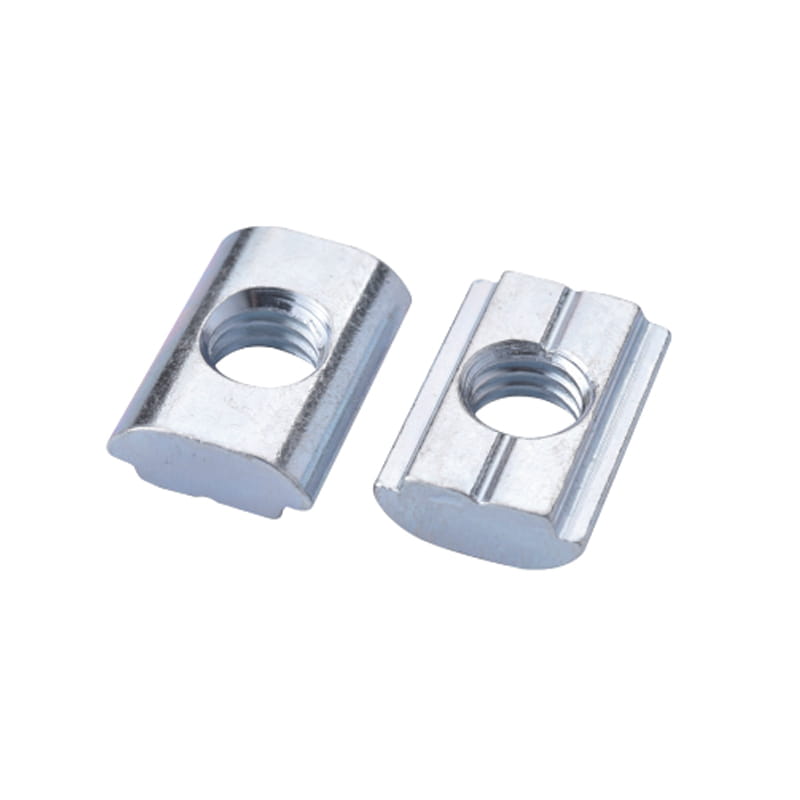

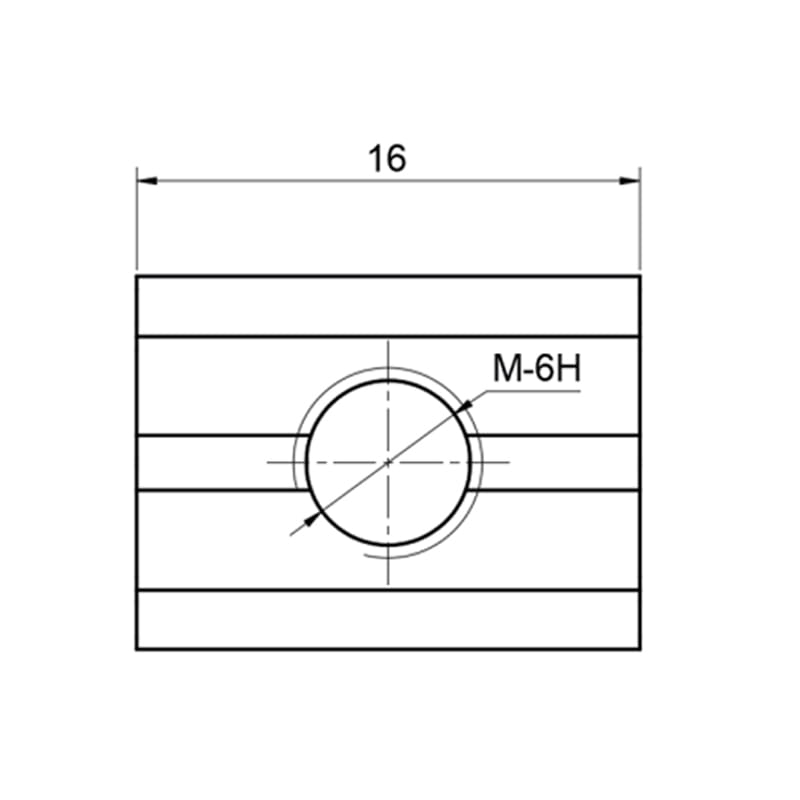

Carbon steel slider nut slot 8

Part No.	Thread	Surface	Material	Weight(g)
2112.008.001	M4	Zinc plated	Carbon steel	4.80
2112.008.002	M5	Zinc plated	Carbon steel	4.50
2112.008.003	M6	Zinc plated	Carbon steel	4.20
2112.008.004	M8	Zinc plated	Carbon steel	3.90
2112.008.008	1/4-20	Zinc plated	Carbon steel	4.00
2112.008.009	5/16-18	Zinc plated	Carbon steel	3.70

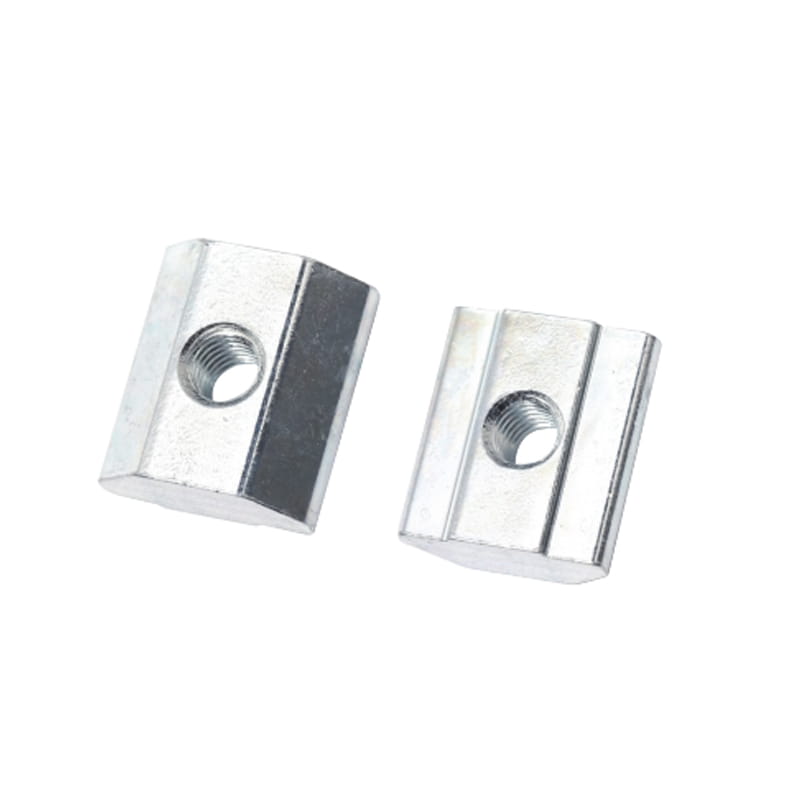

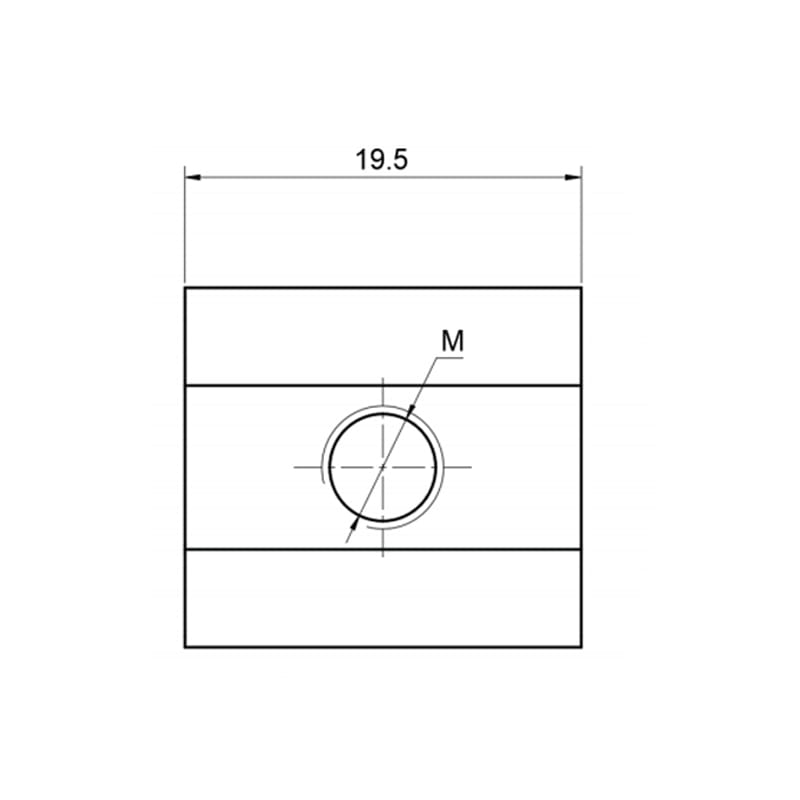

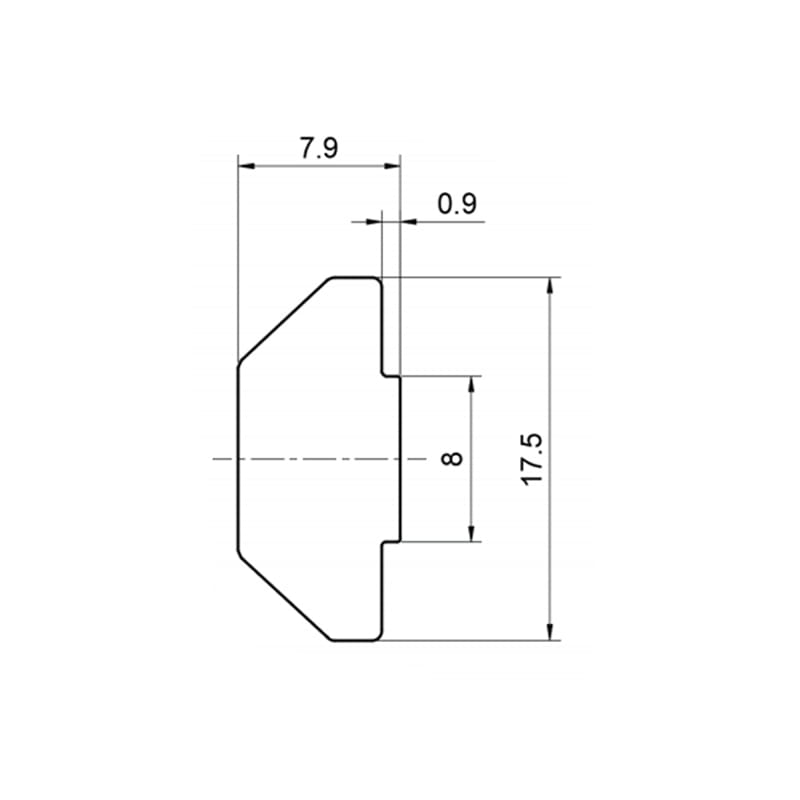

Carbon steel slider nut slot 8

Carbon steel slider nut slot 8

Contact us

Part No.

Thread

Surface

Material

Weight(g)

2118.008.003

M6

Zinc plated

Carbon steel

16.70

2118.008.004

M8

Zinc plated

Carbon steel

14.20

×

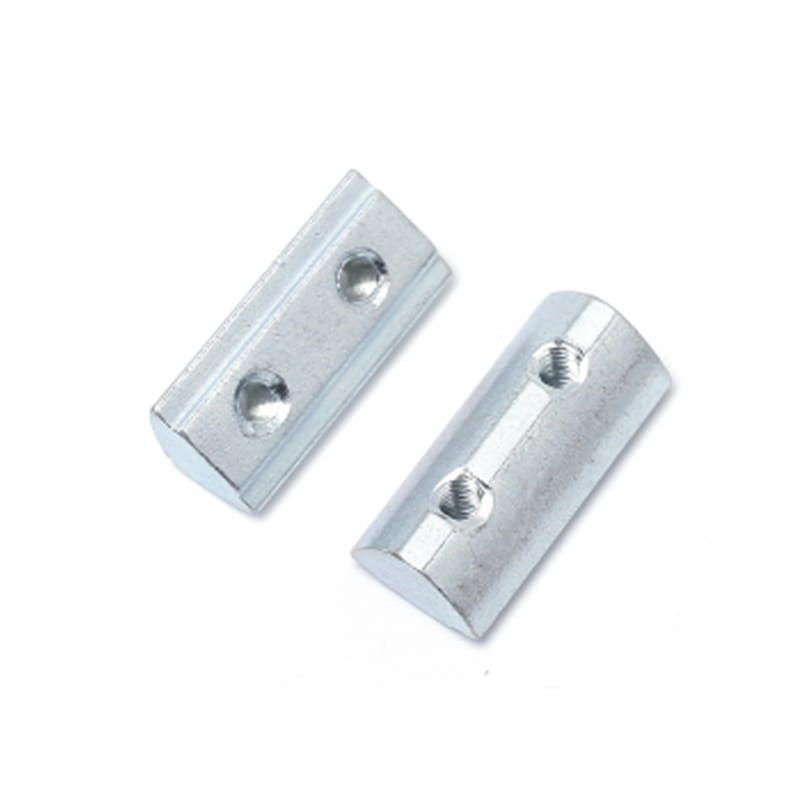

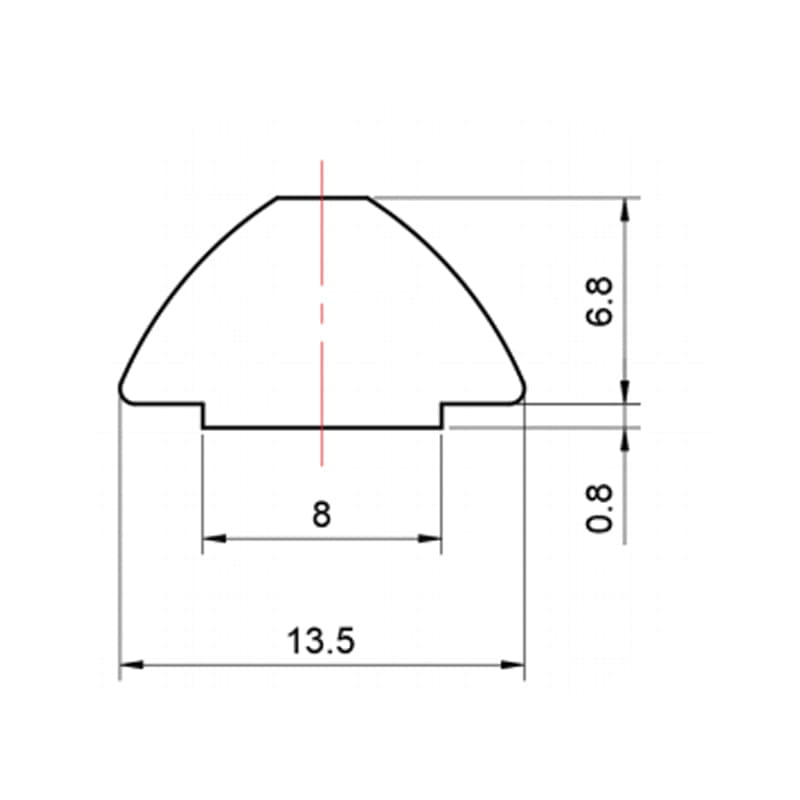

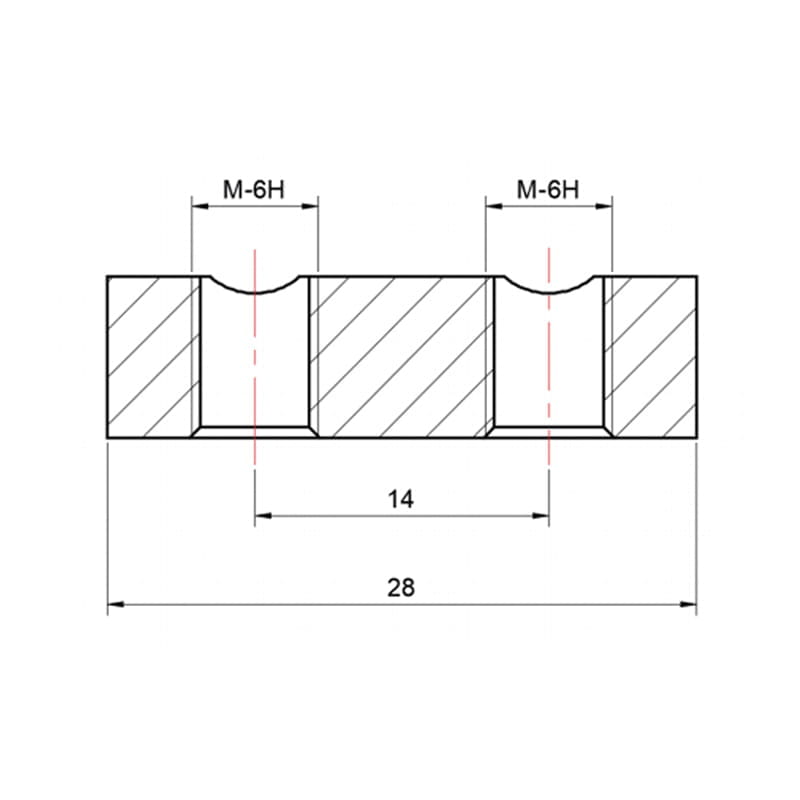

Carbon steel slider nut slot 8

Part No.	Thread	Surface	Material	Weight(g)
2135.008.001	M4	Zinc plated	Carbon steel	13.00
2135.008.002	M5	Zinc plated	Carbon steel	12.70
2135.008.003	M6	Zinc plated	Carbon steel	12.40
2135.008.004	M8	Zinc plated	Carbon steel	12.10

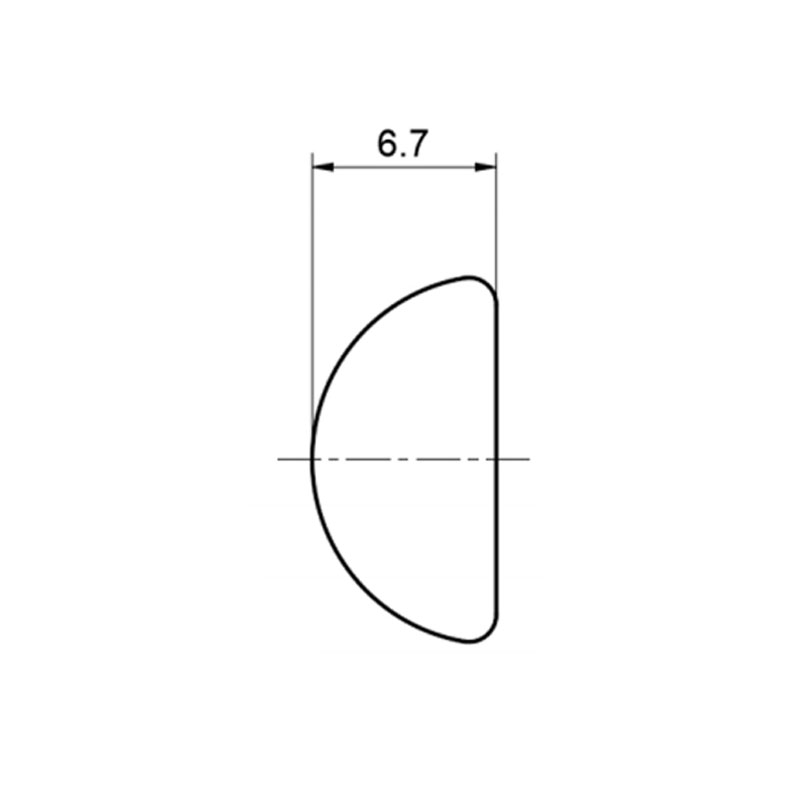

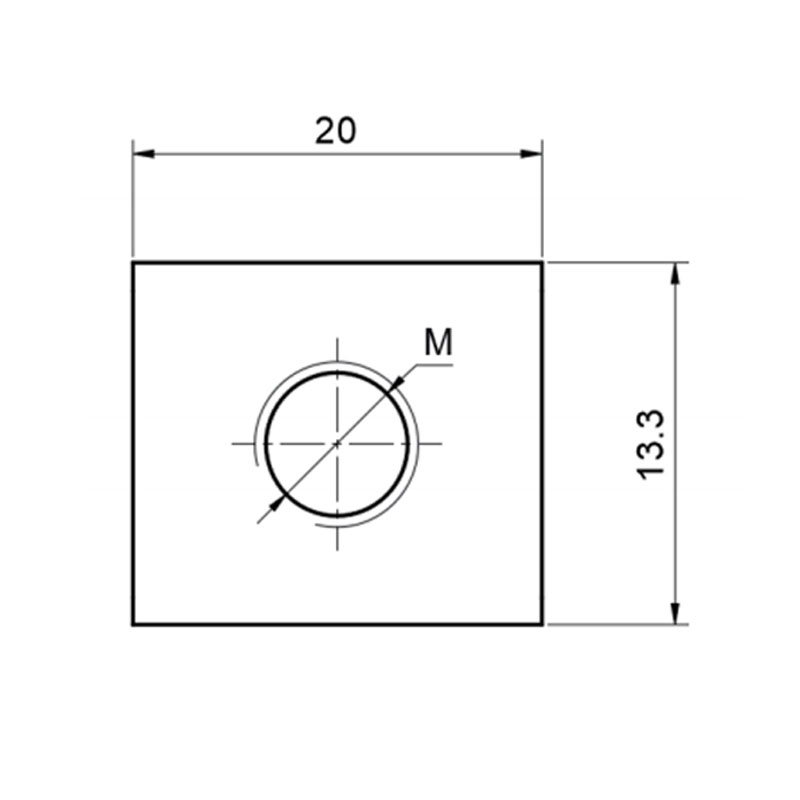

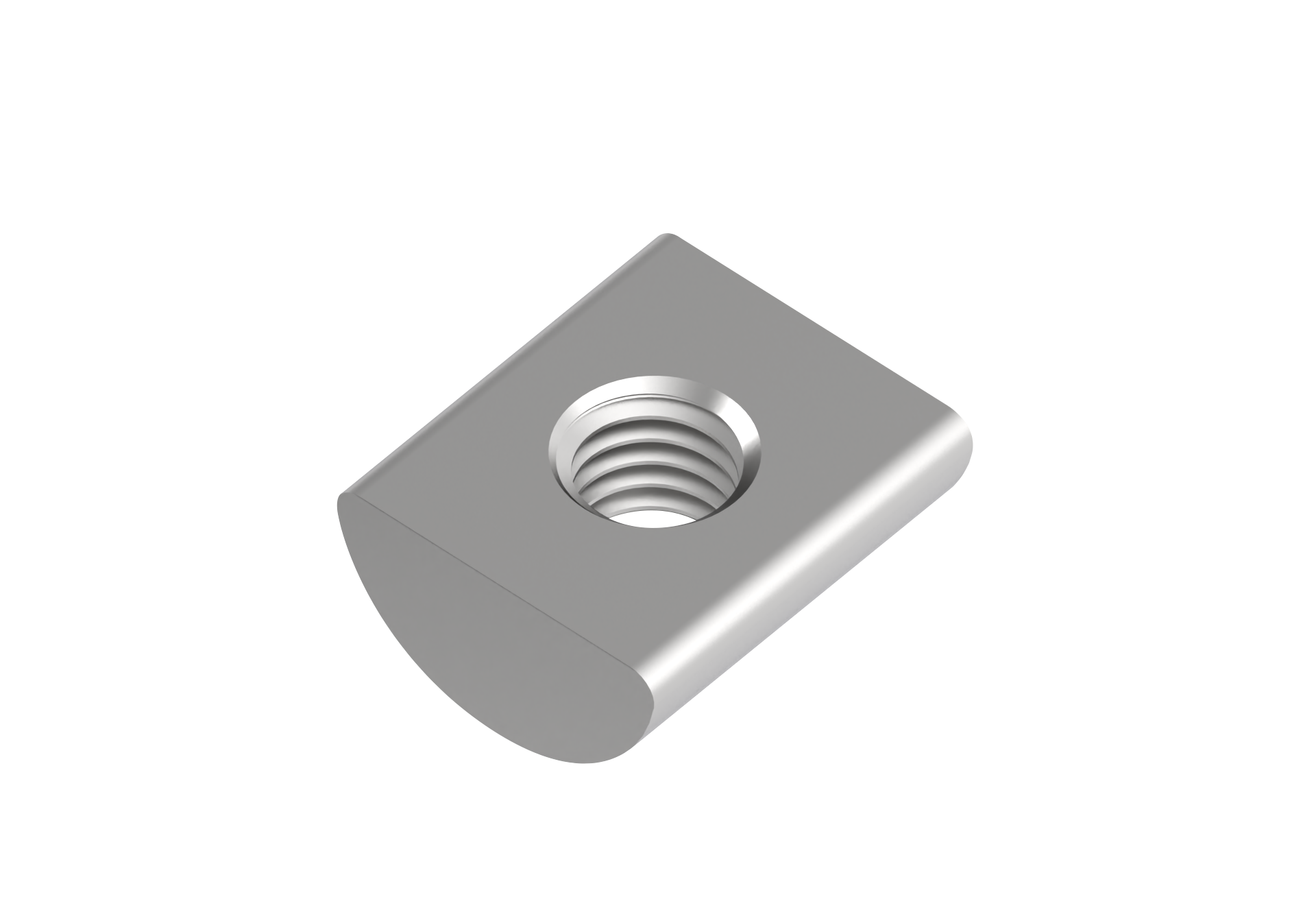

Carbon steel slider nut slot 8

Carbon steel slider nut slot 8

Contact us

Part No.

Thread

Surface

Material

Weight(g)

2144.008.003

M6

Zinc plated

Carbon steel

7.40

2144.008.004

M8

Zinc plated

Carbon steel

9.00

×

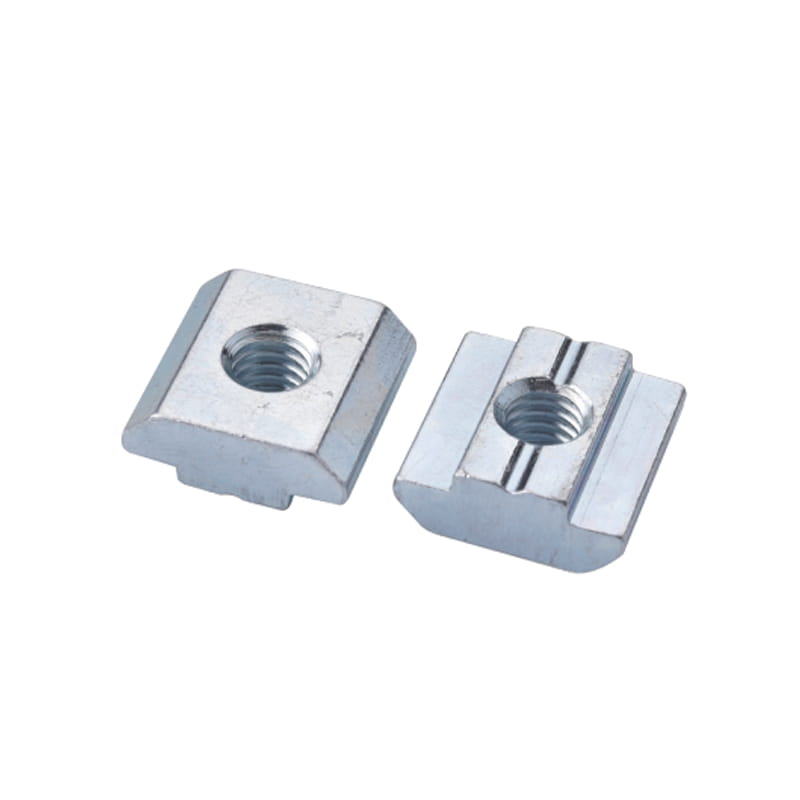

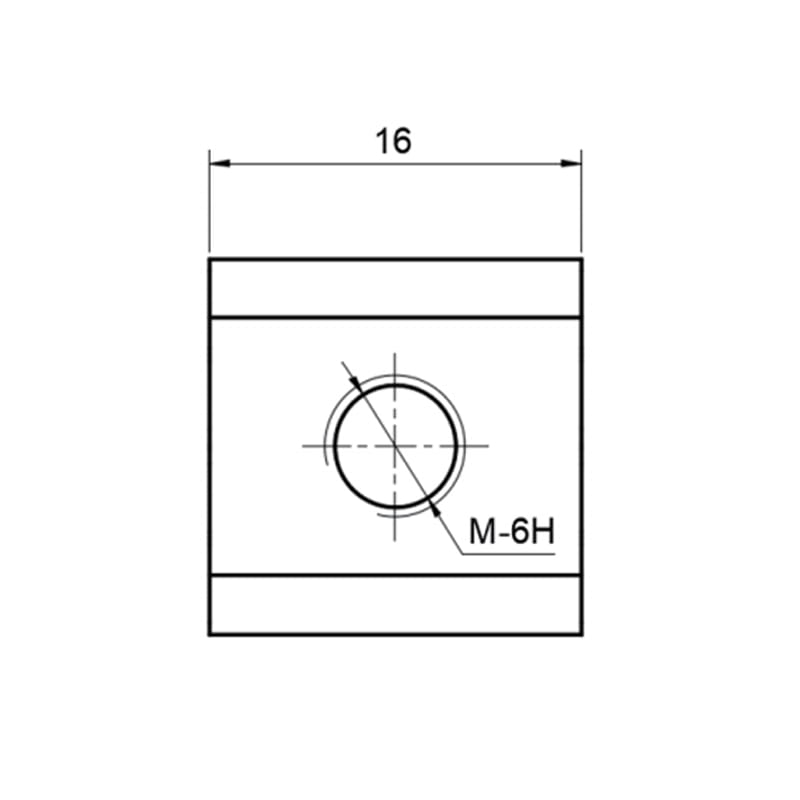

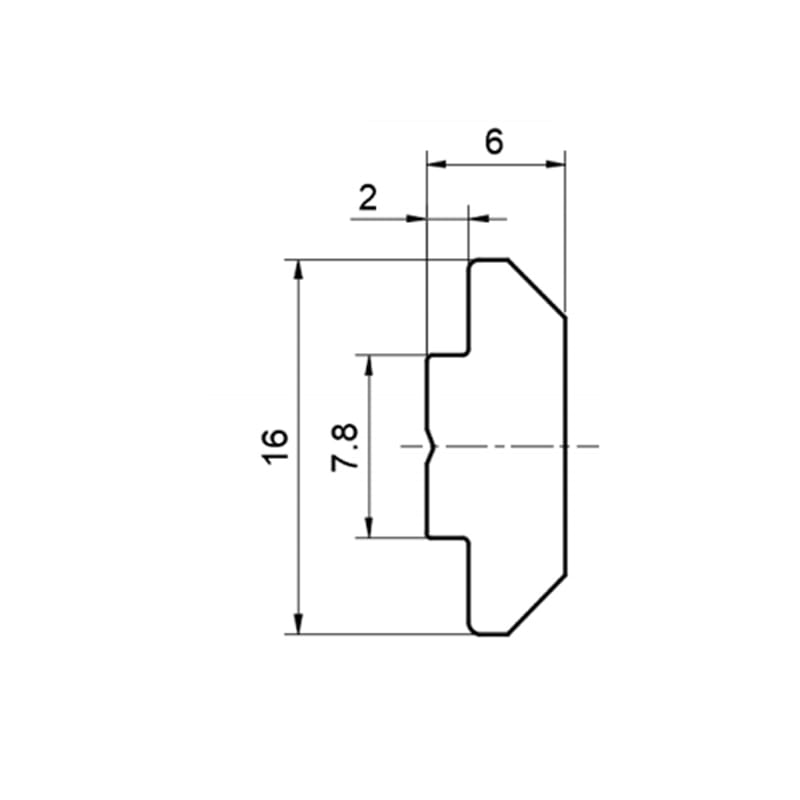

Carbon steel slider nut slot 8

Part No.	Thread	Surface	Material	Weight(g)
2II1.008.001	M4	Zinc plated	Carbon steel	8.40
2111.008.002	M5	Zinc plated	Carbon steel	8.10
2111.008.003	M6	Zinc plated	Carbon steel	7.70
2111.008.004	M8	Zinc plated	Carbon steel	6.80
2111.008.008	1/4-20	Zinc plated	Carbon steel	7.70
2111.008.009	5/16-18	Zinc plated	Carbon steel	6.80

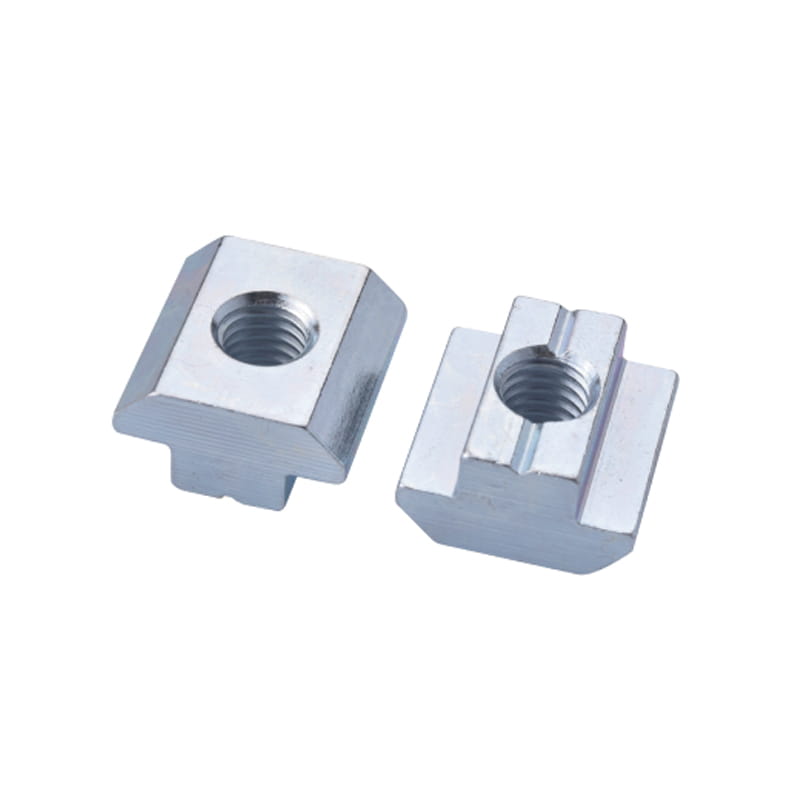

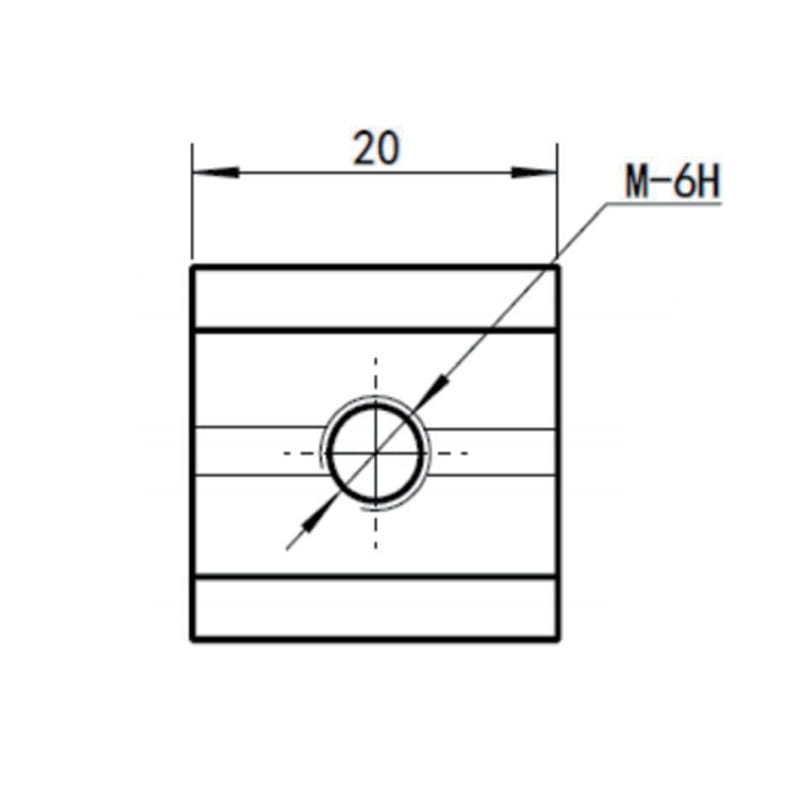

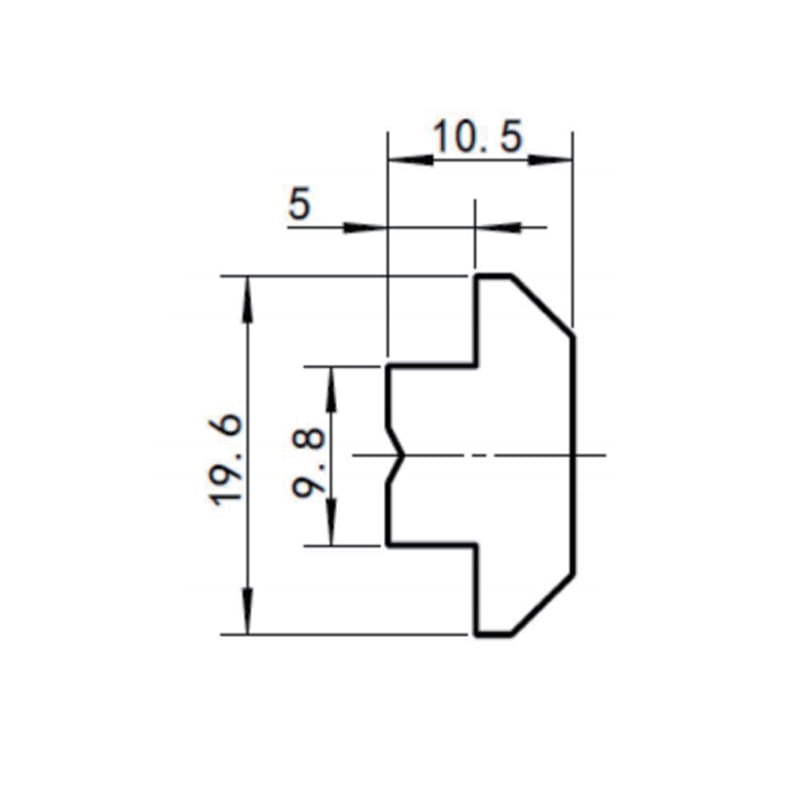

Carbon steel slider nut slot 10

Part No.	Thread	Surface	Material	Weight(g)
2125.010.001	M4	Zinc plated	Carbon steel	21.20
2125.010.002	M5	Zinc plated	Carbon steel	20.70
2125.010.003	M6	Zinc plated	Carbon steel	20.00
2125.010.004	M8	Zinc plated	Carbon steel	18.55
2125.010.005	M10	Zinc plated	Carbon steel	18.00

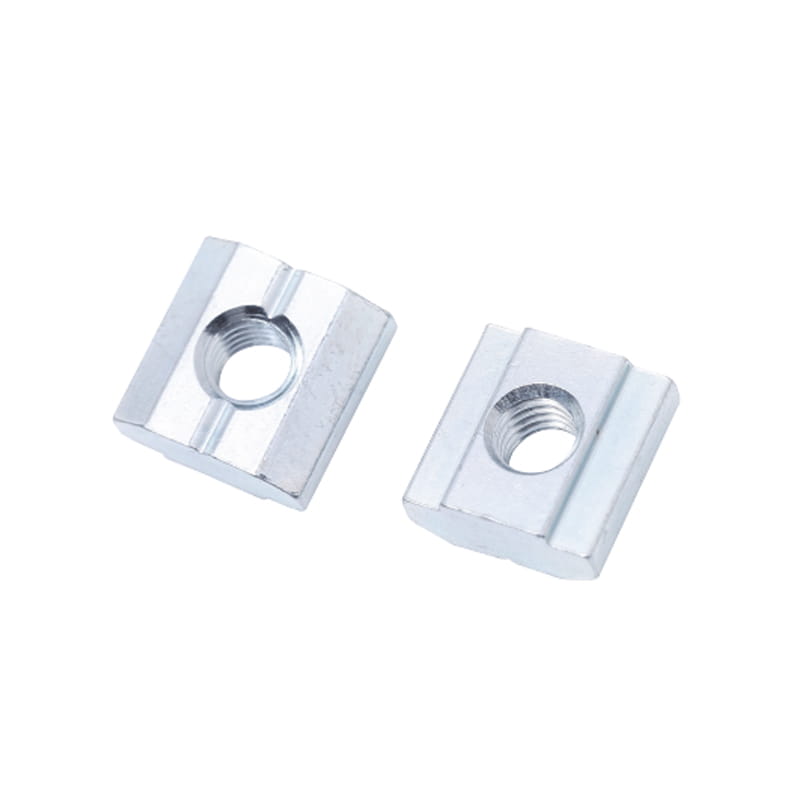

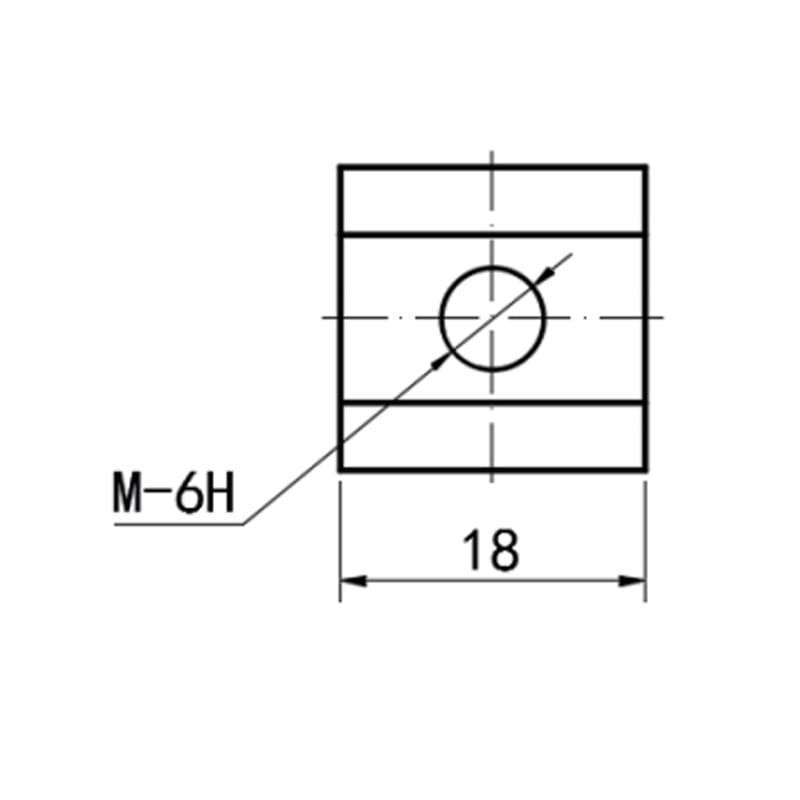

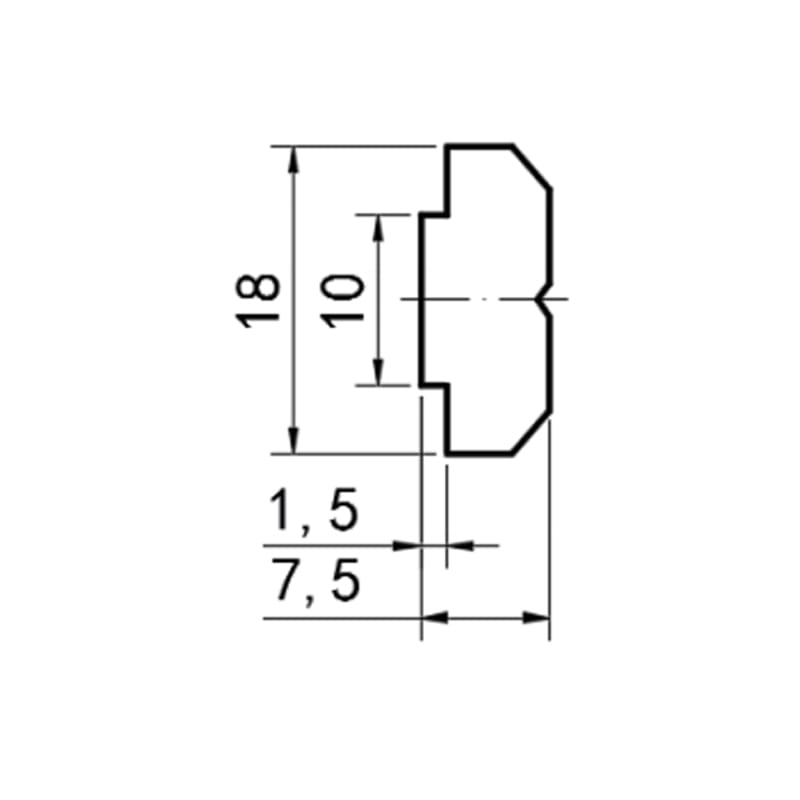

Carbon steel slider nut slot 10

Part No.	Thread	Surface	Material	Weight(g)
2131.010.001	M4	Zinc plated	Carbon steel	14.80
2131.010.002	M5	Zinc plated	Carbon steel	13.70
2131.010.003	M6	Zinc plated	Carbon steel	12.60
2131.010.004	M8	Zinc plated	Carbon steel	11.80

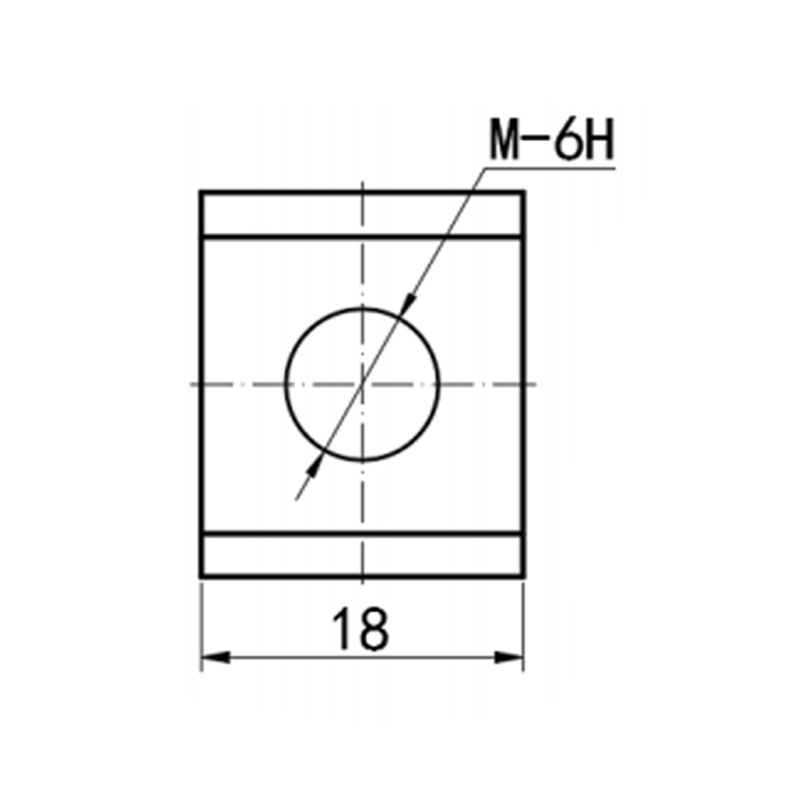

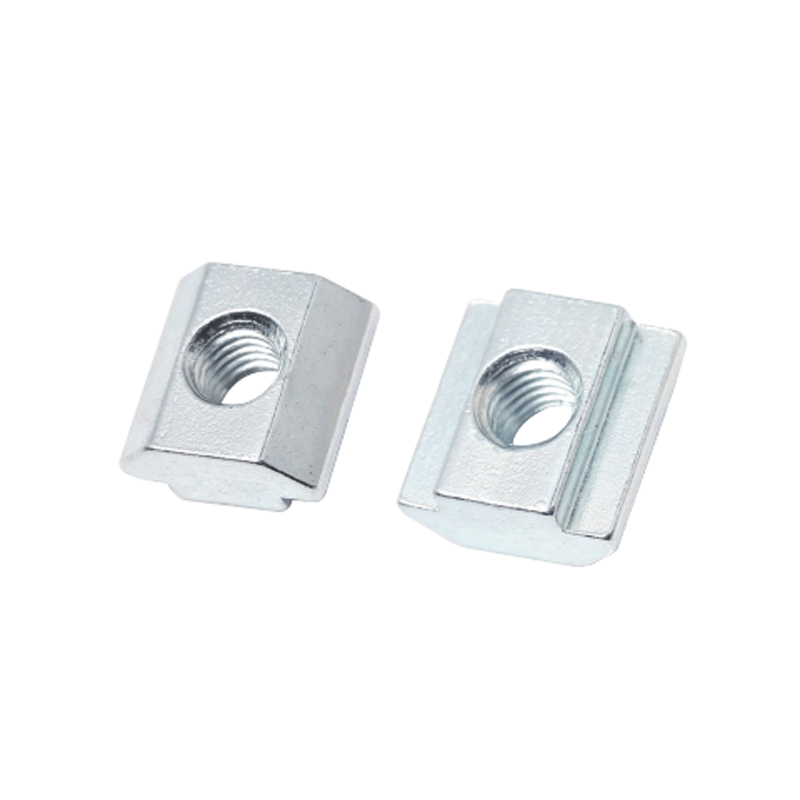

Carbon steel slider nut slot 10

Part No.	Thread	Surface	Material	Weight(g)
2142.010.001	M4	Zinc plated	Carbon steel	16.50
2142.010.002	M5	Zinc plated	Carbon steel	15.50
2142.010.003	M6	Zinc plated	Carbon steel	14.50
2142.010.004	M8	Zinc plated	Carbon steel	13.50

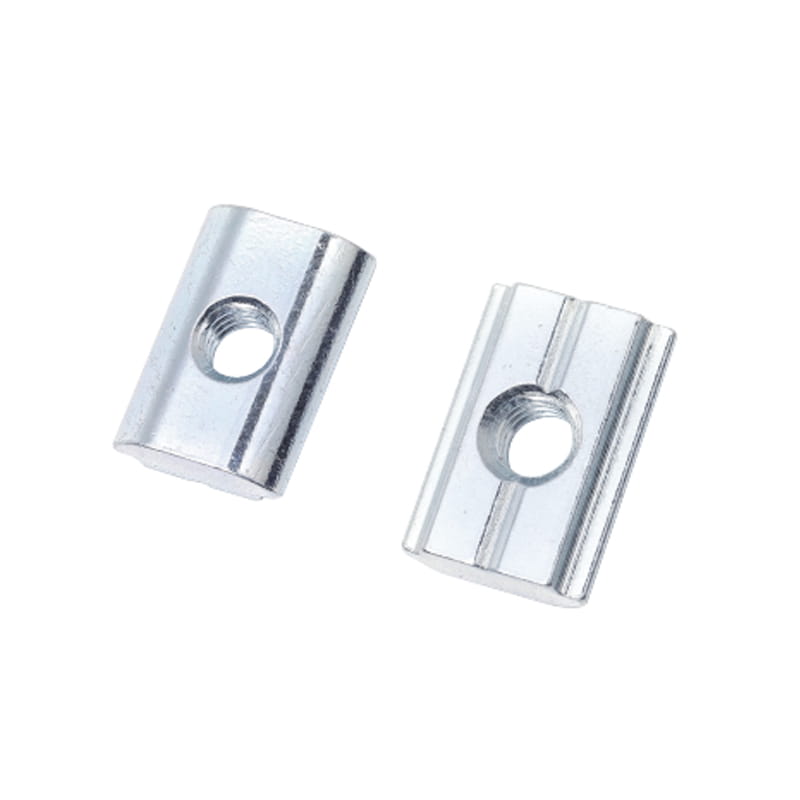

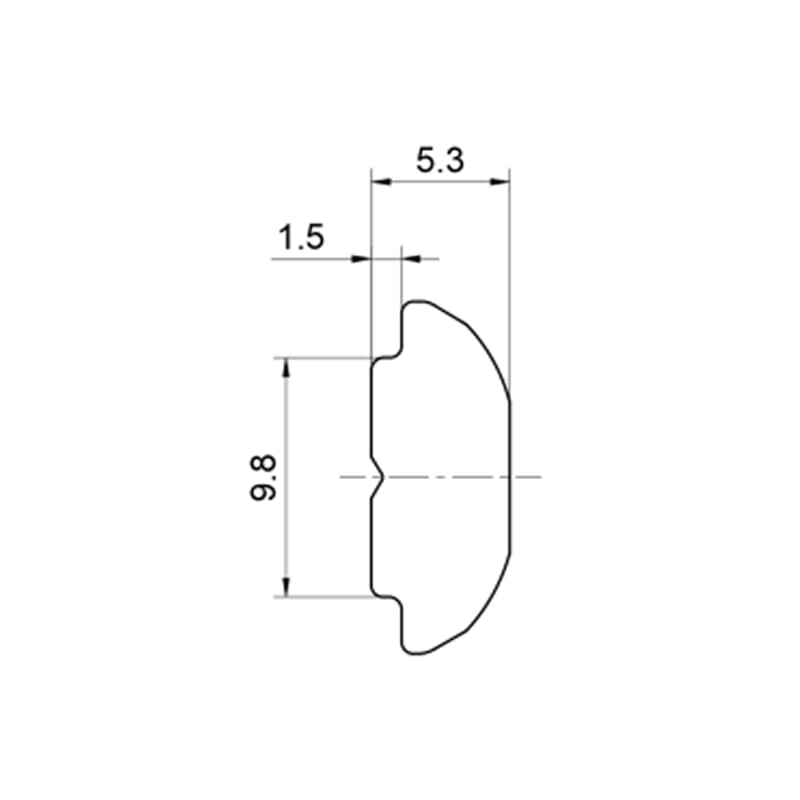

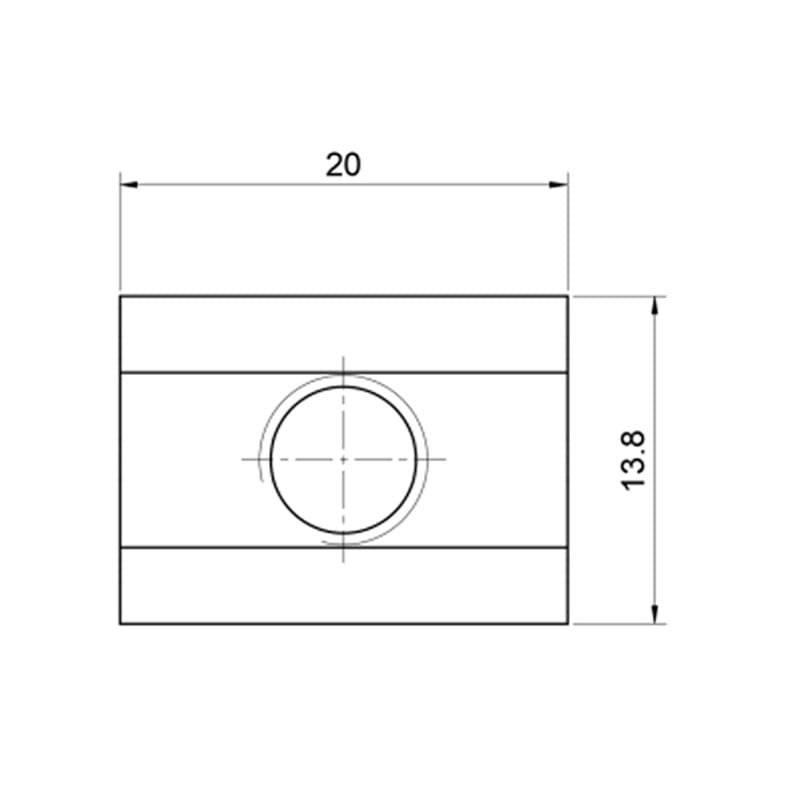

Carbon steel slider nut slot 10

Part No.	Thread	Surface	Material	Weight(g)
2I32.010.001	M4	Zinc plated	Carbon steel	9.45
2132.010.002	M5	Zinc plated	Carbon steel	9.20
2132.010.003	M6	Zinc plated	Carbon steel	8.70
2132.010.004	M8	Zinc plated	Carbon steel	8.00

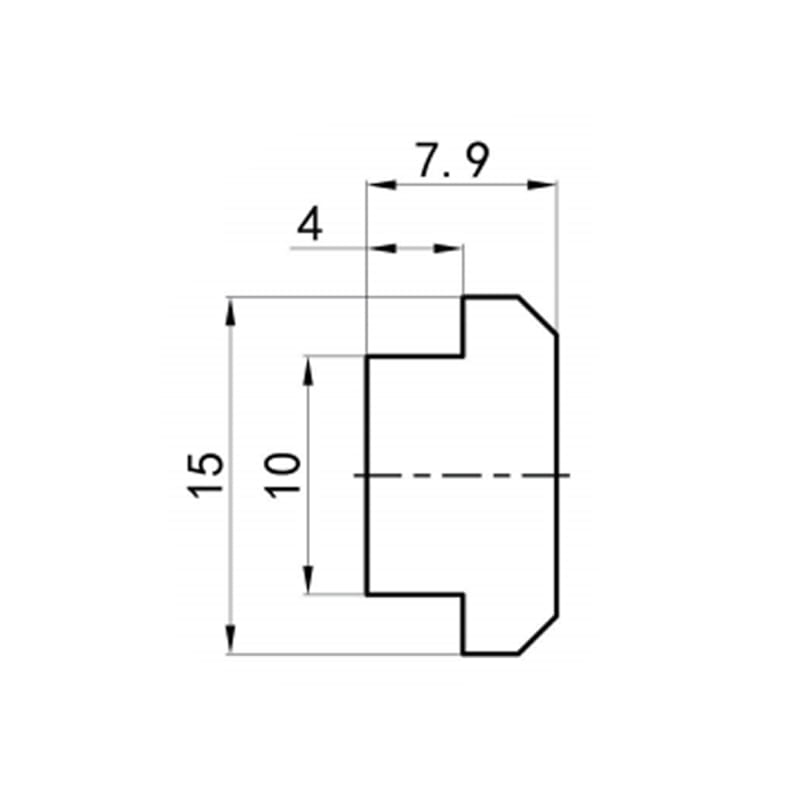

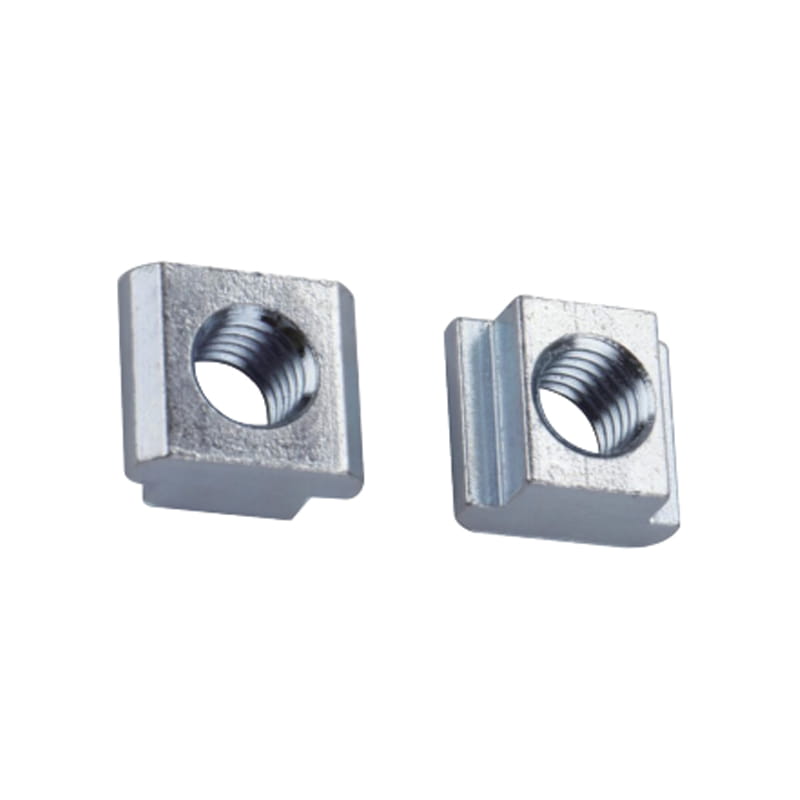

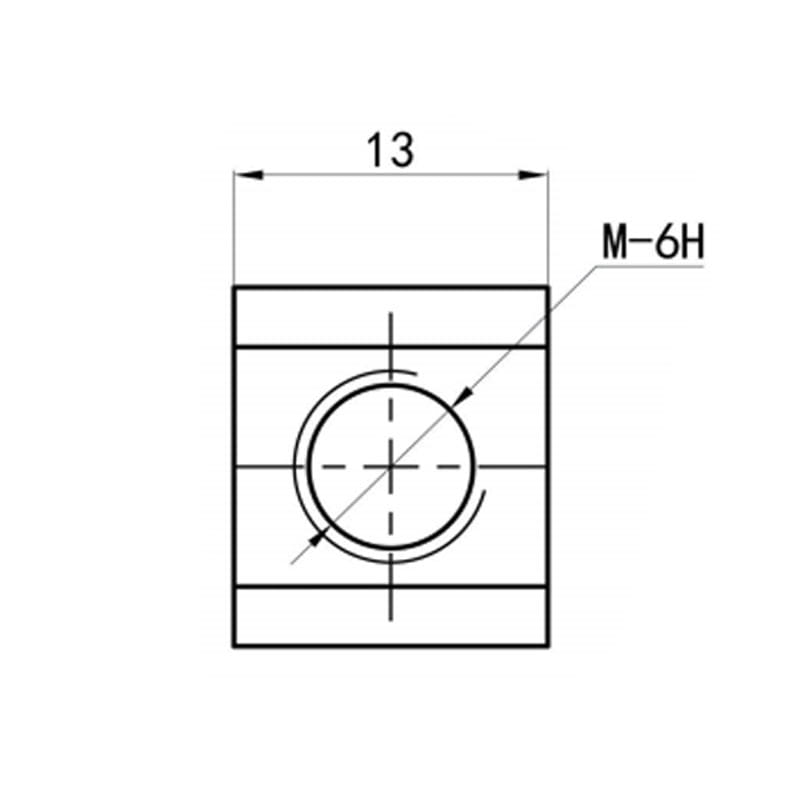

Carbon steel slider nut slot 10

Carbon steel slider nut slot 10

Contact us

Part No.

Thread

Surface

Material

Weight(g)

2126.010.004

M8

Zinc plated

Carbon steel

6.70

×

With a rich history spanning two decades years, we are a recognized leader in producing advanced Profile T Slide Nut solutions, a testament to our commitment to innovation, precision, and unmatched quality. Our Profile T Slide Nuts have been meticulously engineered to revolutionize assembly solutions across a wide spectrum of industries, offering unrivaled versatility and performance.

Application and Function:

Profile T Slide Nuts are intelligently designed components tailored to the needs of T-slotted aluminum extrusion profiles. These specialized nuts play a crucial role in securely fastening and enabling smooth movement within the profiles. Their primary function involves facilitating effortless and adjustable motion along the T-slots, thereby enabling dynamic component positioning. Industries such as manufacturing, automation, robotics, and beyond benefit significantly from the unique advantages these solutions offer.

Core Performance and Advantages:

The core performance of our Profile T Slide Nuts lies in their precision engineering and superior quality. Their design ensures seamless movement and secure positioning within T-slotted profiles, minimizing the need for complex fastening methods. This streamlined functionality translates to significant time and labor savings during assembly, enhancing overall operational efficiency.

Our unwavering commitment to delivering excellence is fortified by our professional quality control practices and state-of-the-art automated production processes. Each Profile T Slide Nut undergoes a rigorous 100% inspection before shipping, ensuring that only products meeting the highest industry standards reach our customers. With close to two decades of experience, our team's expertise and dedication are pivotal in consistently providing precision-engineered solutions.

Advantages:

Effortless Movement: Profile T Slide Nuts enable smooth and adjustable motion within T-slotted profiles, facilitating dynamic assembly configurations.

Enhanced Assembly Efficiency: The streamlined design eliminates the need for intricate fastening techniques, simplifying assembly processes.

Reliable Performance: Precision engineering ensures dependable and long-lasting performance, even in demanding applications.

Time and Cost Savings: Simplified assembly translates to reduced labor and enhanced cost-efficiency.

Industry-Leading Expertise: With nearly two decades of industry experience, we offer expert guidance to optimize Profile T Slide Nut selection for specific project needs.

In summary, our Profile T Slide Nuts epitomize the fusion of innovation and precision. Backed by 19 years of expertise, professional quality control, and an automated production process, we are poised to deliver superior solutions that redefine assembly efficiency while maintaining the highest standards of performance and excellence.

About Minde

Ningbo Minde Technology Co., Ltd.

The company was established in 2004 and has passed ISO9001, SGS, and RoHS certification. To create an ideal green enterprise, protect limited resources, and reduce waste and pollution, our products have passed SGS environmental testing and comply with the EU RoHS directive. As China Profile T Slide Nut / T-Slot Nut Suppliers and T Slide Nut / T-Slot Nut Factory, production area 12,000㎡, Two office areas 350㎡, Have 65 Experienced team-member. The major production process includes tooling designing & making, die casting, forging, stamping, precision machining, drilling, surface plating, Intelligent infrared detecting and automation packing, etc. Mostly exported to more than 35 countries and regions, major markets are the USA, Europe, the Middle East, and Southeast Asia.

Certificate Of Honor

News

MINDE Sustainability Performance Statement In 2025
17 Mar, 2025
1. Introduction At NINGBO MINDE COMPANY, we are deeply committed to integrating sustainability into ...
READ MORE
Why are T Slot Floor Elements so important in mechanical manufacturing?
03 Mar, 2025
T Slot Floor Elements play a vital role in the mechanical manufacturing industry. Whether it is fixi...
READ MORE
Made of high-strength Nylon material, Profile Uniblocks 2704.010.002 exhibits excellent fatigue resistance
26 Feb, 2025
Industrial connectors are often in a state of cyclic stress. Long-term stress may cause the formatio...
READ MORE
Key solution for hot working environments: 4801.2464.000 powder coating
19 Feb, 2025
Coating treatment under high temperature environment has always been a major challenge in the field ...
READ MORE
From Festivities to Factory: We’re Back to Support Your Aluminum Automation Projects
12 Feb, 2025
As the Year of the Snake begins, we at MINDE are celebrating a significant milestone: 21 years of e...
READ MORE

Message Feedback

T Slide Nut / T-Slot Nut Industry knowledge

1. How does Profile T Slide Nut / T-Slot Nut work?

The profile T slide nut / T-slot nut is an ingeniously designed connection element whose working principle is based on its fit into the T-slot structure. These nuts are designed to slide easily into the T-slots and hold in place, providing a secure connection. Its working principle is mainly based on its unique shape and design.

Generally, a T-slot is a special channel with a T-shaped cross-section, which is usually used for the connection and fixation of various mechanical structures and components. The Profile T Slide Nut / T-Slot Nut is designed to allow free movement in the T-slot and then rotates to secure it in the desired position.

These nuts usually have raised portions that match the size of the notch of the T-slot, ensuring a secure fit. Once in place, they are able to withstand forces in all directions, providing a reliable connection. Furthermore, their design includes some self-locking features that prevent them from loosening under vibration or load, ensuring the stability of the connection.

2. What are the characteristics of the materials and manufacturing process of Profile T Slide Nut / T-Slot Nut?

The material selection and manufacturing process of your Profile T Slide Nut / T-Slot Nut are one of the key factors that determine its quality and performance. These connectors are usually made of high-strength metal materials, such as aluminum alloy, stainless steel, etc., to ensure sufficient durability and load-bearing capacity.

The process of manufacturing these nuts usually involves advanced machining techniques such as milling, turning, drilling, etc. to ensure their dimensional accuracy and surface quality. Its manufacturing process may also include special surface treatments, such as anodizing, spraying, etc., to improve its corrosion and wear resistance.

These material and manufacturing process choices make Profile T Slide Nut / T-Slot Nut ideal for a variety of harsh environments and high-load applications. They maintain stable performance over time in a variety of industrial and mechanical environments, reducing the need for maintenance and replacement, thereby lowering overall costs.

3. How is the performance and reliability of Profile T Slide Nut / T-Slot Nut guaranteed?

Profile T Slide Nut / T-Slot Nut plays an important role in industrial manufacturing where performance and reliability are critical. The design and manufacturing process of these connectors focuses on ensuring consistent performance and reliability.

These nuts are precision engineered to ensure a perfect fit in the T-slot, providing a secure connection. Its material selection and manufacturing process are also key factors in ensuring its performance. Typically, these nuts are made of high-strength metal materials and undergo precision machining and surface treatment to ensure they have good corrosion resistance and wear resistance.

Profile T Slide Nut / T-Slot Nut undergoes strict quality control and testing to ensure that it complies with relevant standards and specifications. These tests may involve dimensional inspection, load-bearing capacity testing, durability testing, etc. to verify its performance under various working conditions.

In addition, manufacturers often provide relevant installation guides and instructions to ensure that these connections are installed and used correctly. This helps maximize its performance and extend its lifespan.
