Carbon steel T nut slot 8

Part No.	Thread	Surface	Material	Weight(g)
2209.008.001	M4	Zinc plated	Carbon steel	11.00
2209.008.002	M5	Zinc plated	Carbon steel	10.50
2209.008.003	M6	Zinc plated	Carbon steel	10.00
2209.008.004	M8	Zinc plated	Carbon steel	11.00
2209.008.007	10-32	Zinc plated	Carbon steel	10.50
2209.008.008	1/4-20	Zinc plated	Carbon steel	10.00
2209.008.009	5/16-18	Zinc plated	Carbon steel	9.50

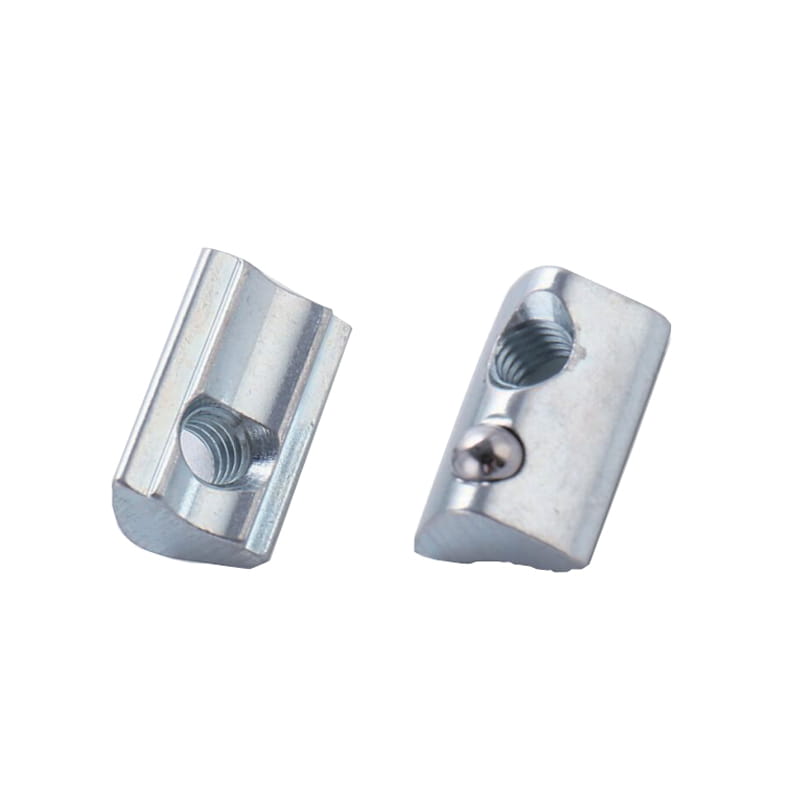

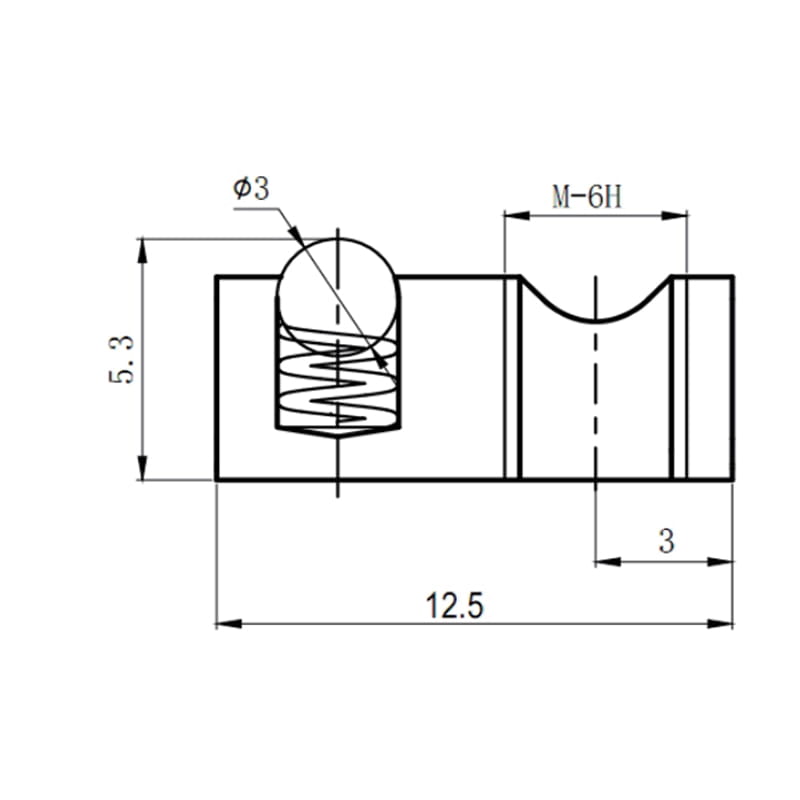

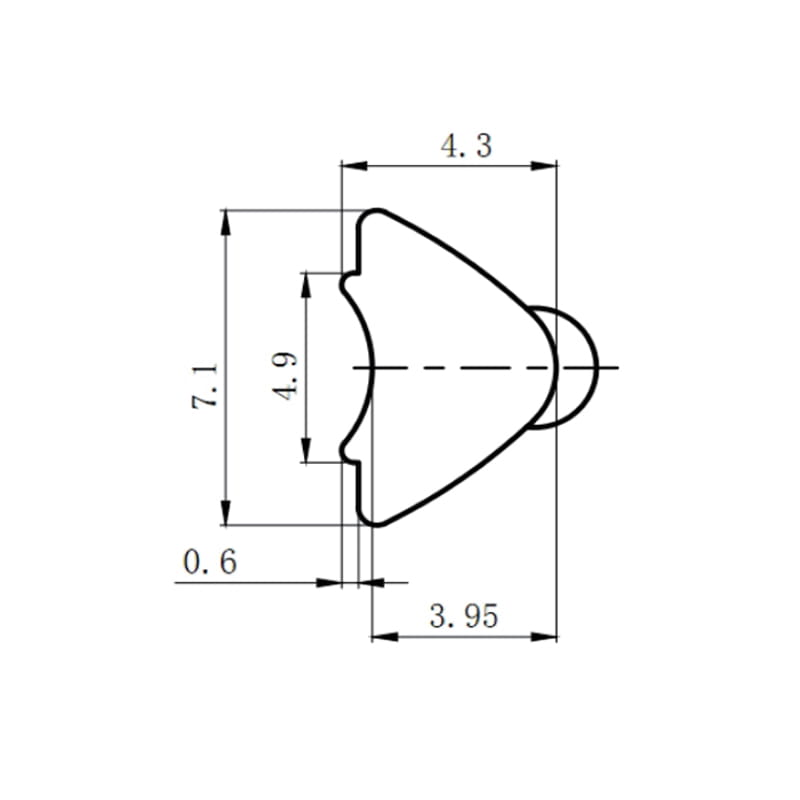

Carbon steel nut with spring ball slot 5

Carbon steel nut with spring ball slot 5

Contact us

Part No.

Thread

Surface

Material

Weight(g)

2201.005.000

M3

Zinc plated

Carbon steel

1.40

2201.005.001

M4

Zinc plated

Carbon steel

1.60

×

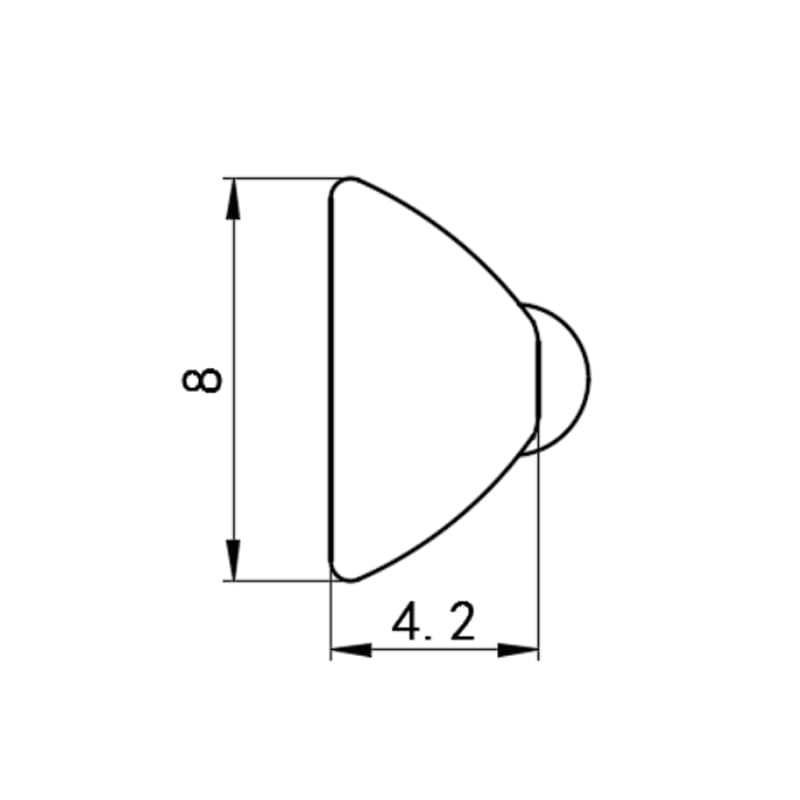

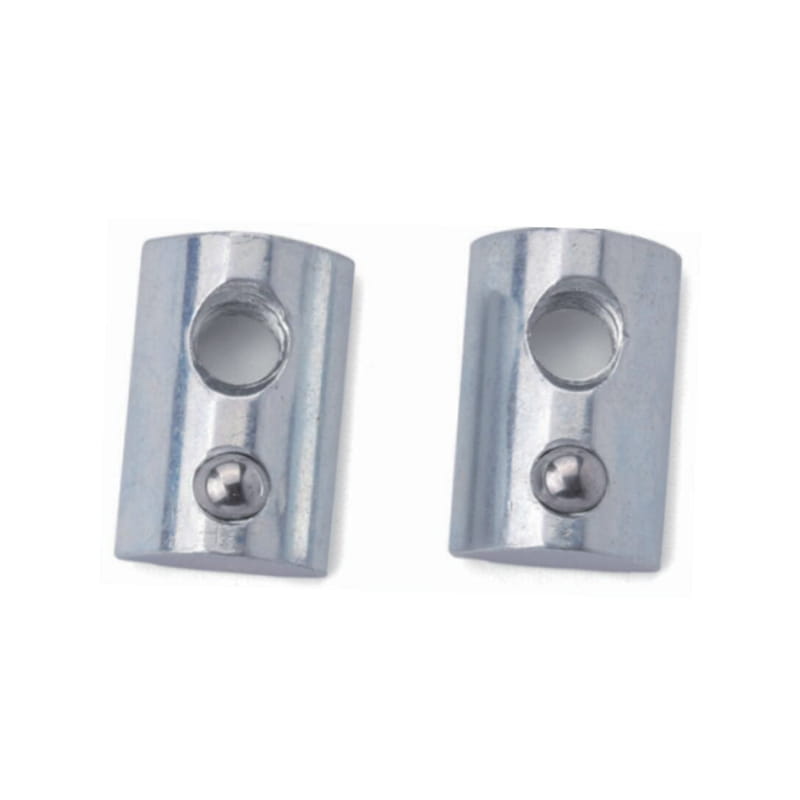

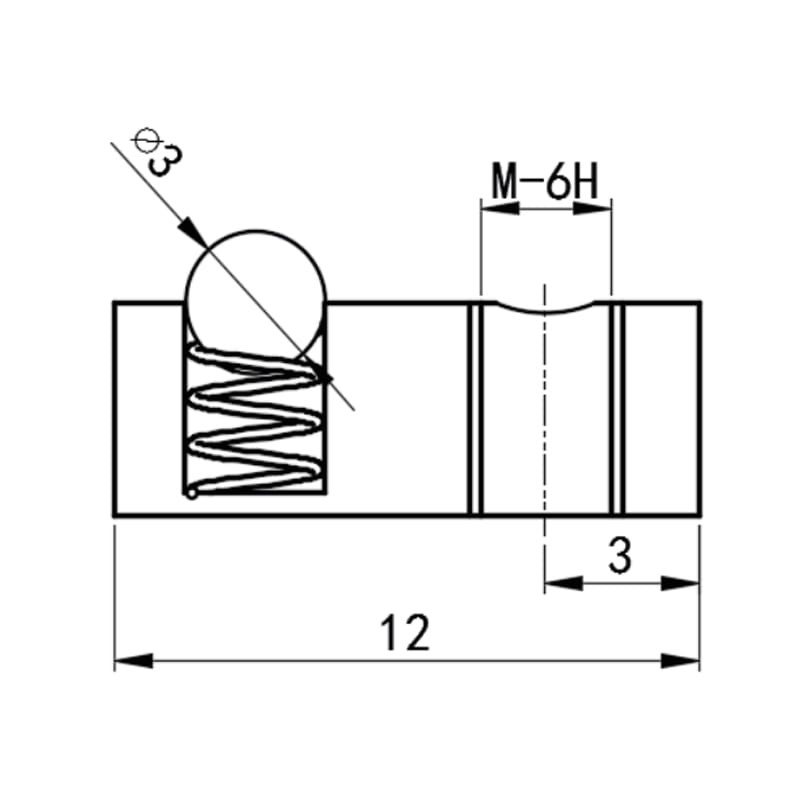

Carbon steel nut with spring ball slot 5

Part No.	Thread	Surface	Material	Weight(g)
2203.005.001	M4	Zinc plated	Carbon steel	1.53
2203.005.002	M5	Zinc plated	Carbon steel	1.68
2203.005.007	10-32	Zinc plated	Carbon steel	1.50

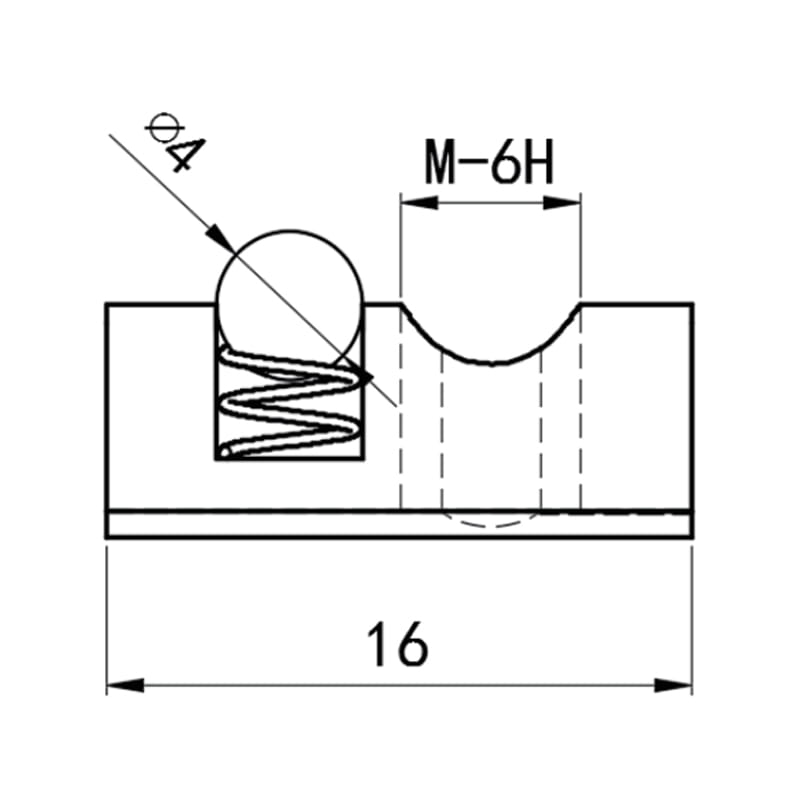

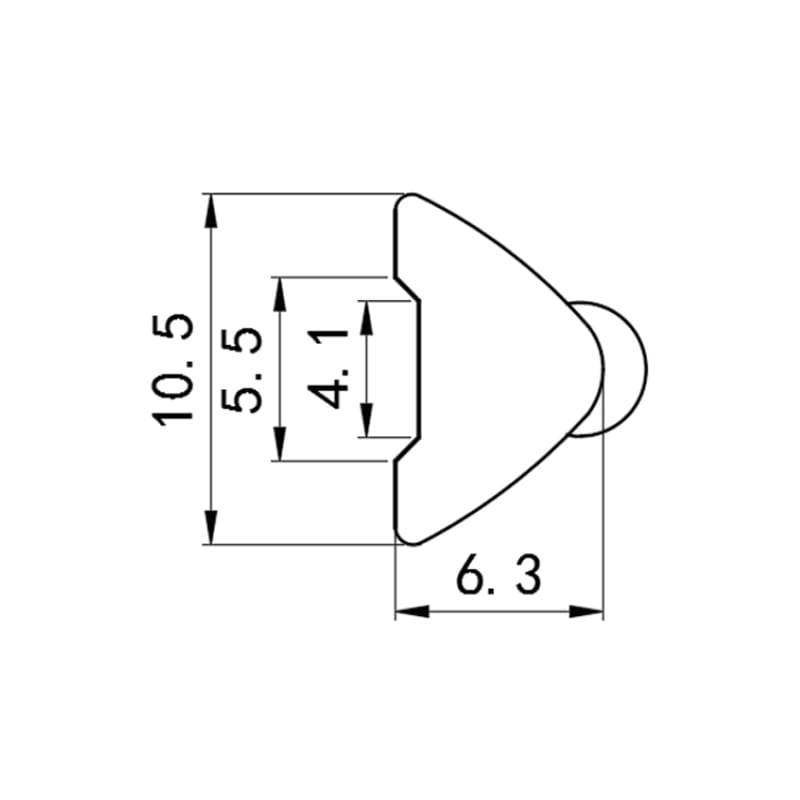

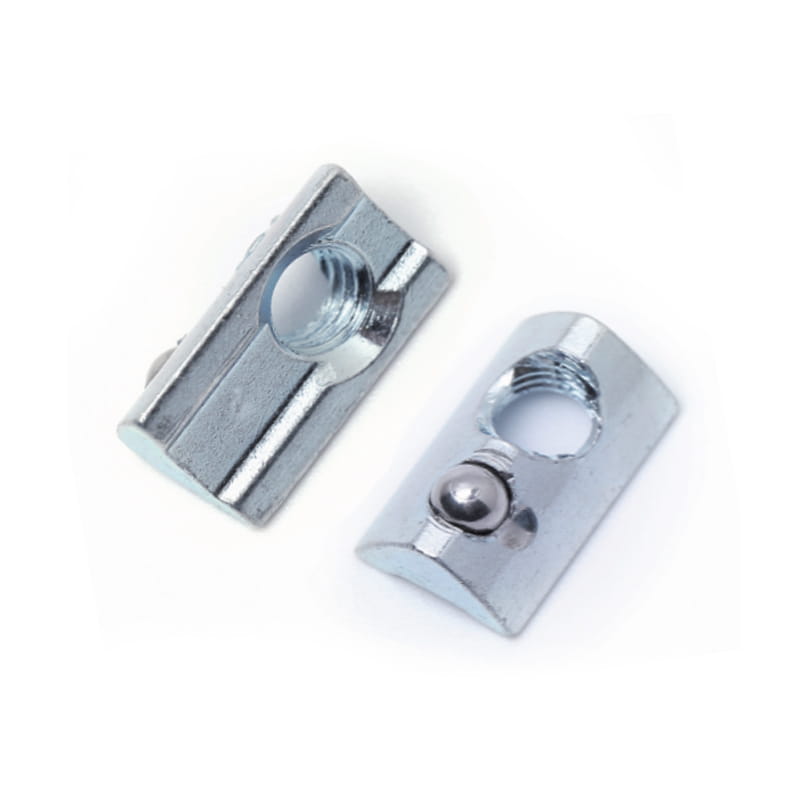

Carbon steel nut with spring ball slot 6

Part No.	Thread	Surface	Material	Weight(g)
2204.006.000	M3	Zinc plated	Carbon steel	5.05
2204.006.001	M4	Zinc plated	Carbon steel	4.75
2204.006.002	M5	Zinc plated	Carbon steel	4.45
2204.006.003	M6	Zinc plated	Carbon steel	4.15

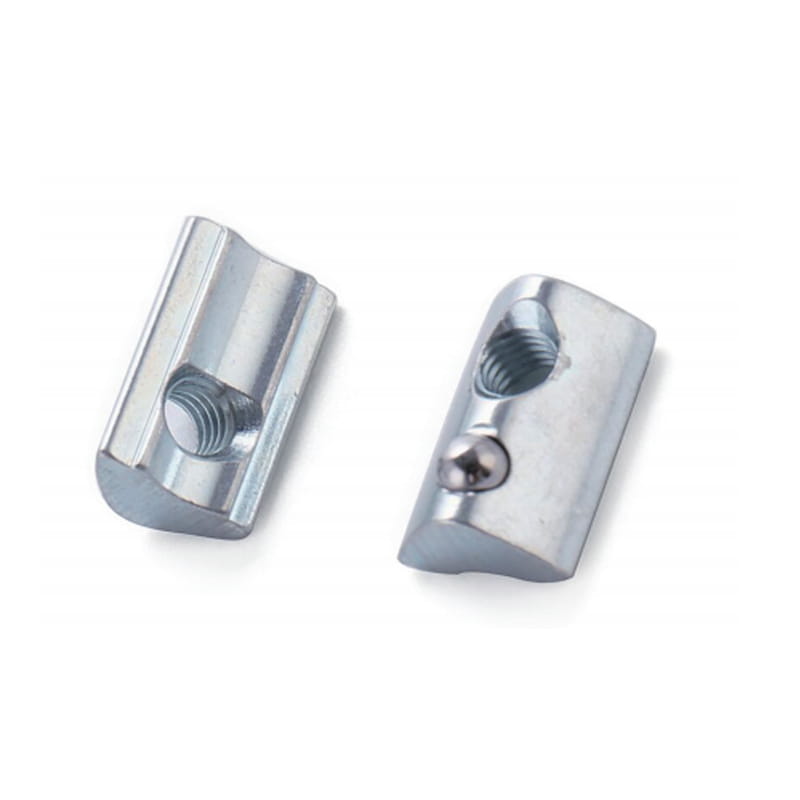

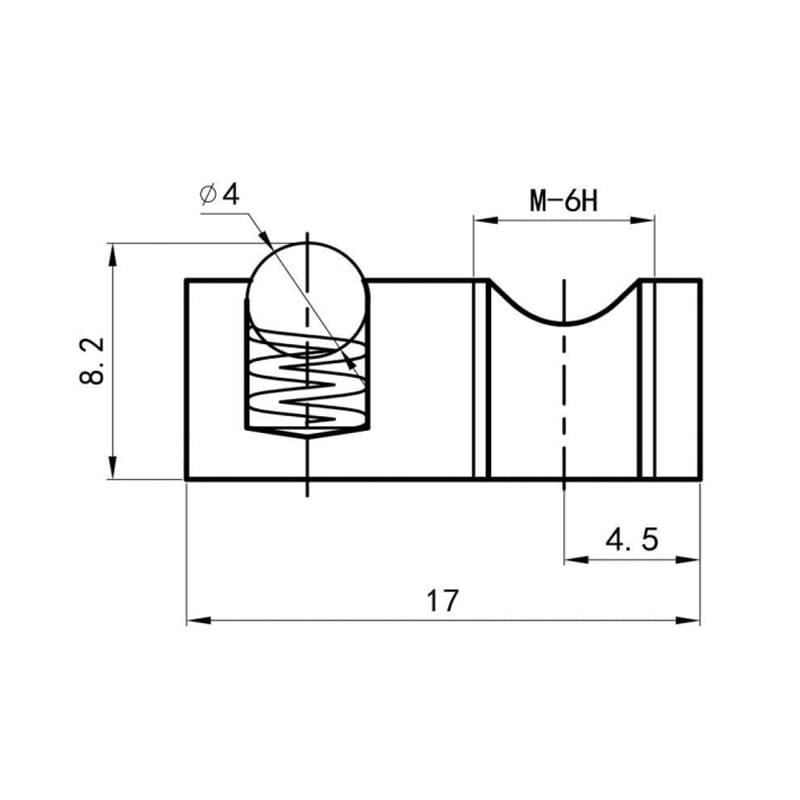

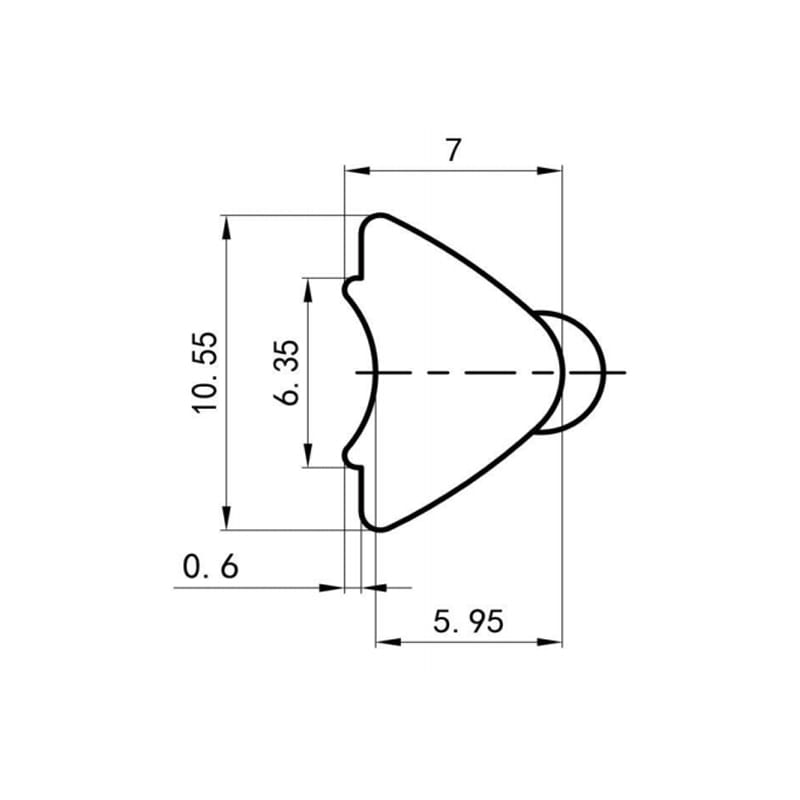

Carbon steel nut with spring ball slot 6

Part No.	Thread	Surface	Material	Weight(g)
2205.006.000	M3	Zinc plated	Carbon steel	5.50
2205.006.001	M4	Zinc plated	Carbon steel	5.20
2205.006.002	M5	Zinc plated	Carbon steel	4.80
2205.006.003	M6	Zinc plated	Carbon steel	4.50

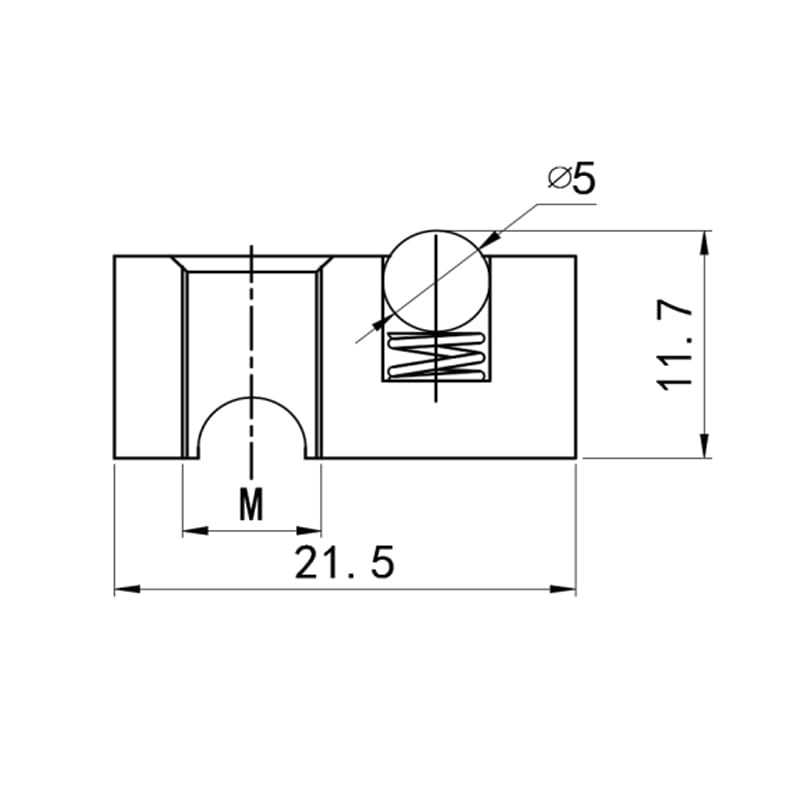

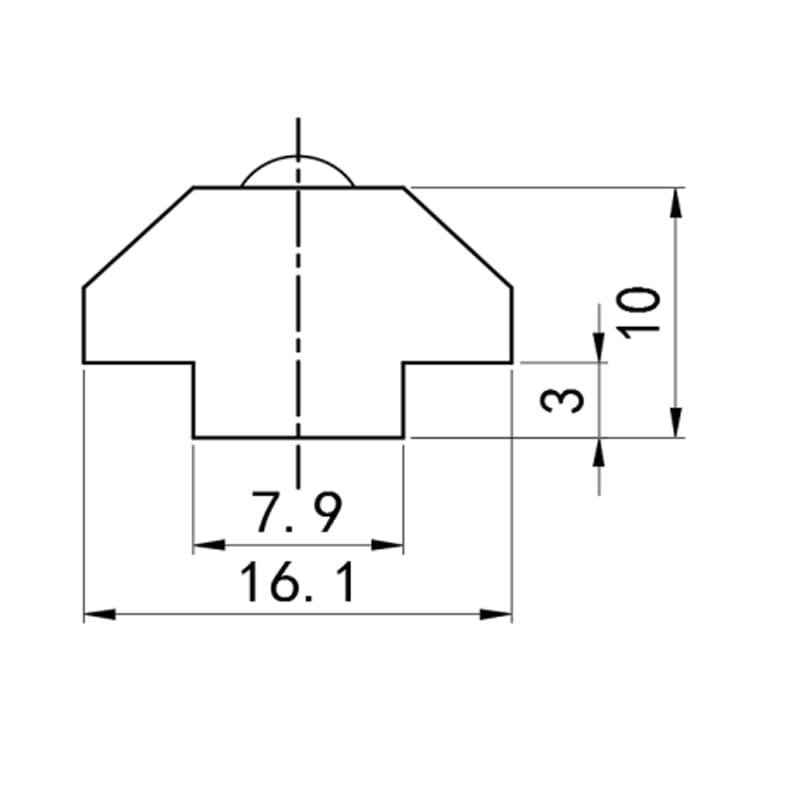

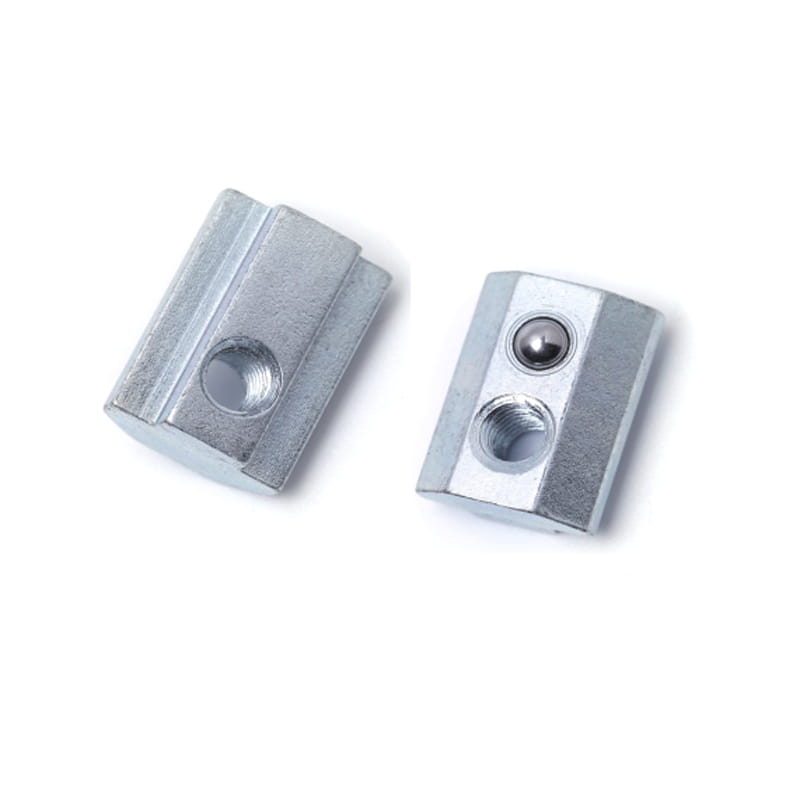

Carbon steel nut with spring ball slot 8

Part No.	Thread	Surface	Material	Weight(g)
2207.008.001	M4	Zinc plated	Carbon steel	19.50
2207.008.002	M5	Zinc plated	Carbon steel	18.50
2207.008.003	M6	Zinc plated	Carbon steel	17.50
2207.008.004	M8	Zinc plated	Carbon steel	16.50
2207.008.008	1/4-20	Zinc plated	Carbon steel	16.50
2207.008.009	5/16-18	Zinc plated	Carbon steel	16.60

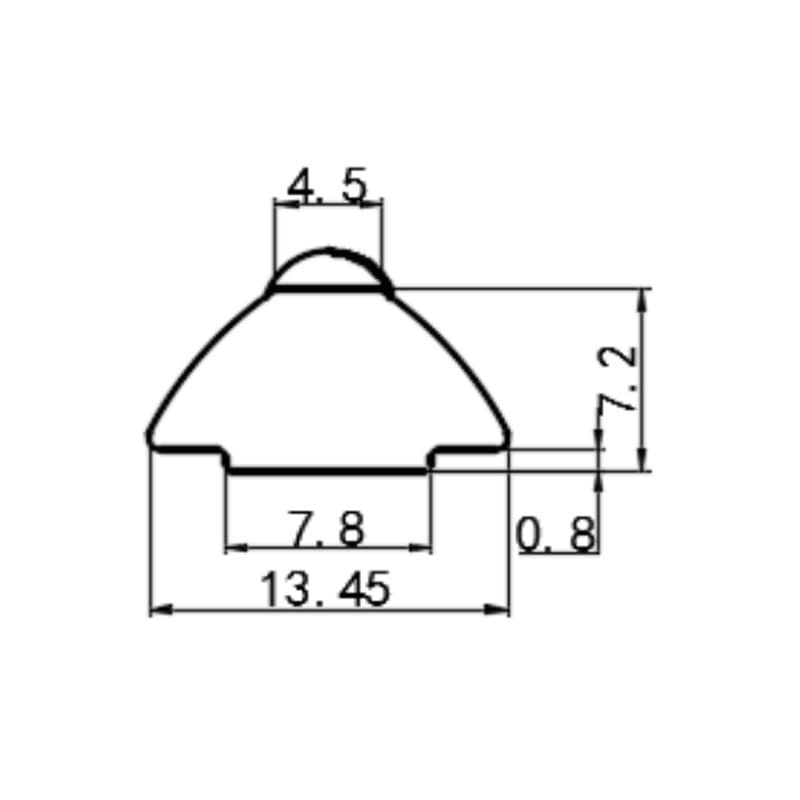

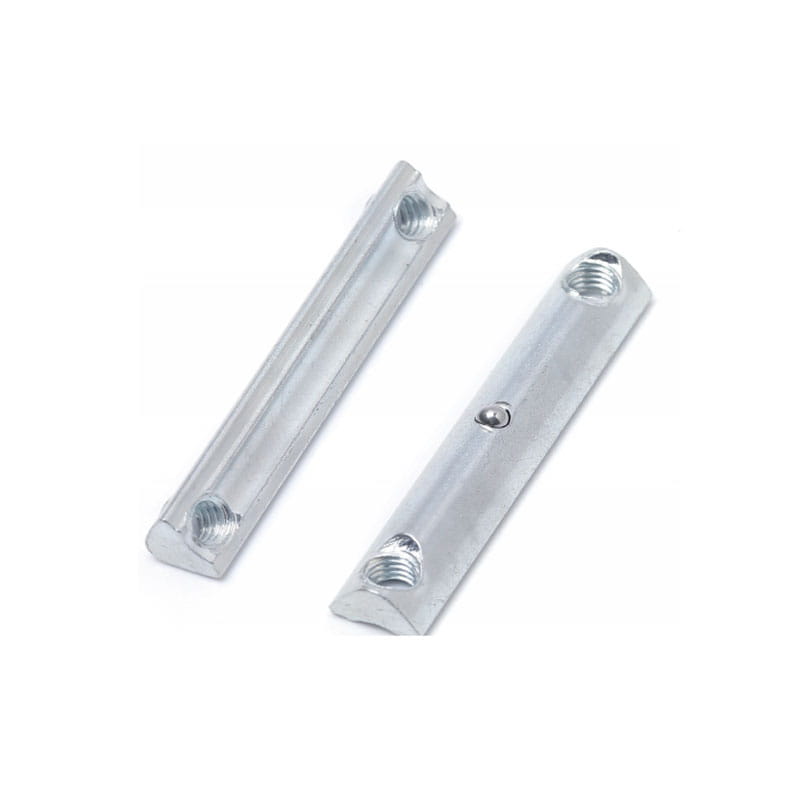

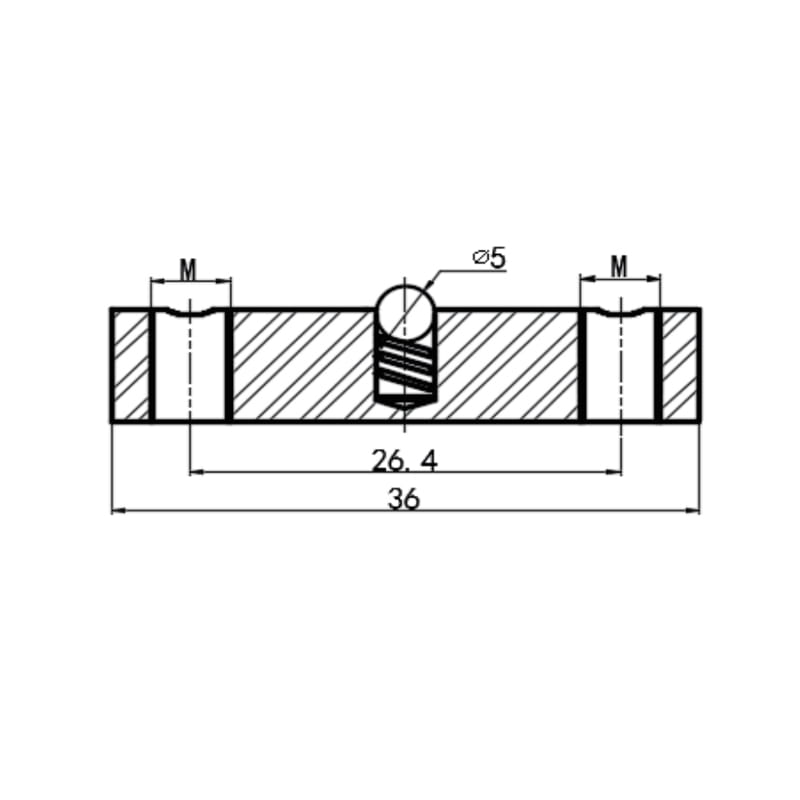

Carbon steel nut with spring ball slot 8

Carbon steel nut with spring ball slot 8

Contact us

Part No.

Thread

Surface

Material

Weight(g)

2211.008.003

M6

Zinc plate

Carbon steel

18.00

×

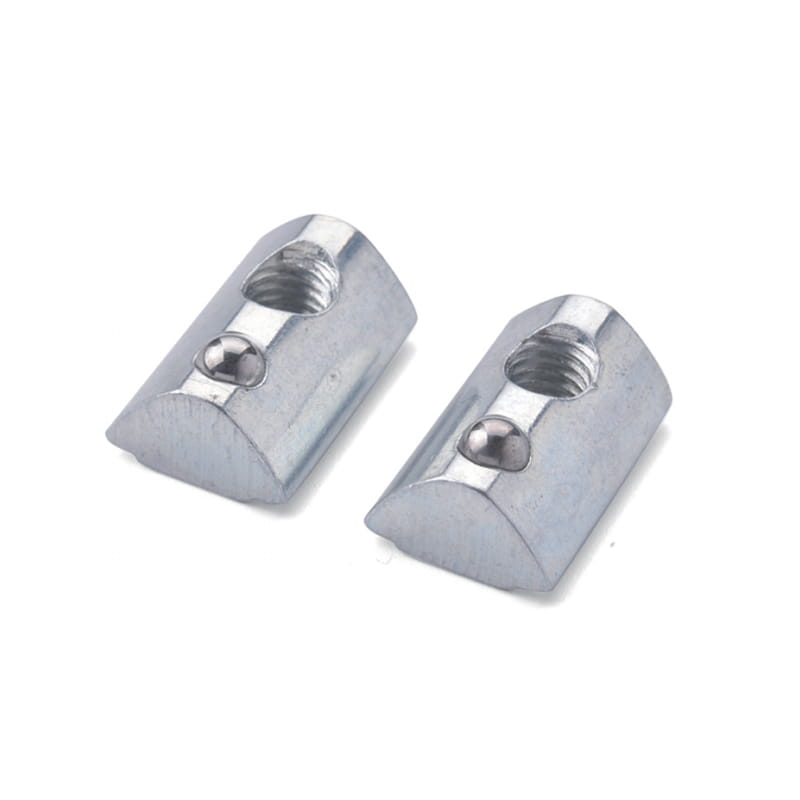

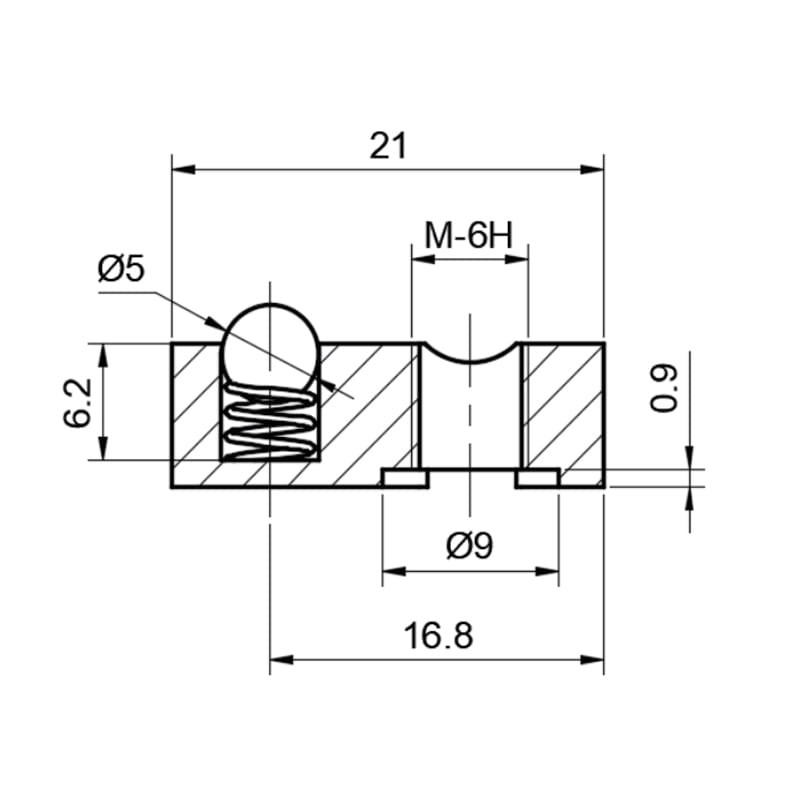

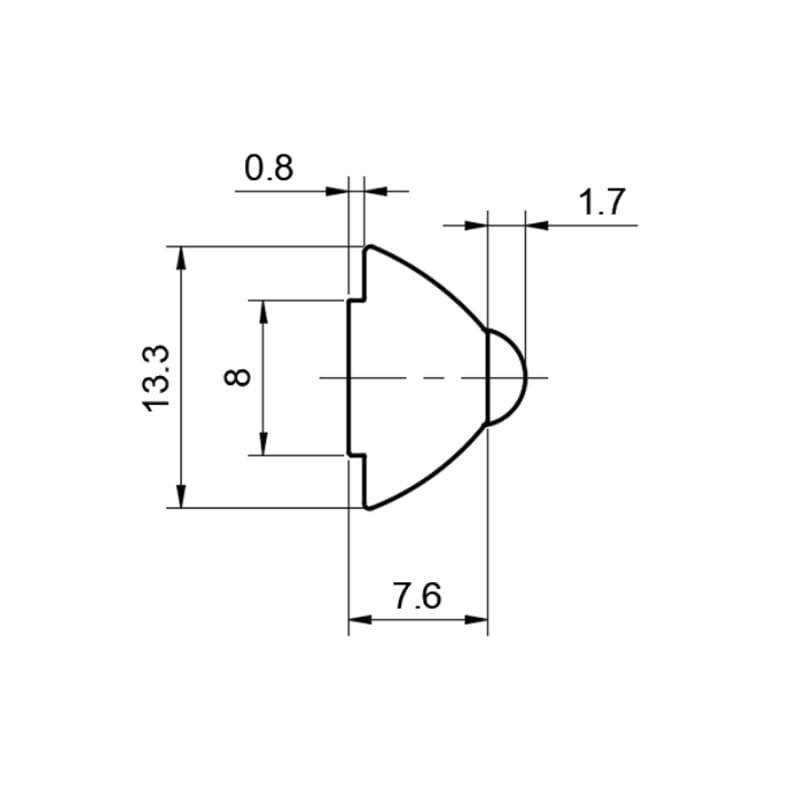

Carbon steel nut with spring ball slot 8

Part No.	Thread	Surface	Material	Weight(g)
2208.008.001	M4	Zinc plated	Carbon steel	10.85
2208.008.002	M5	Zinc plated	Carbon steel	10.52
2208.008.003	M6	Zinc plated	Carbon steel	10.08
2208.008.004	M8	Zinc plated	Carbon steel	9.00
2208.008.007	10-32	Zinc plated	Carbon steel	10.80
2208.008.008	1/4-20	Zinc plated	Carbon steel	9.50
2208.008.009	5/16-18	Zinc plated	Carbon steel	9.60

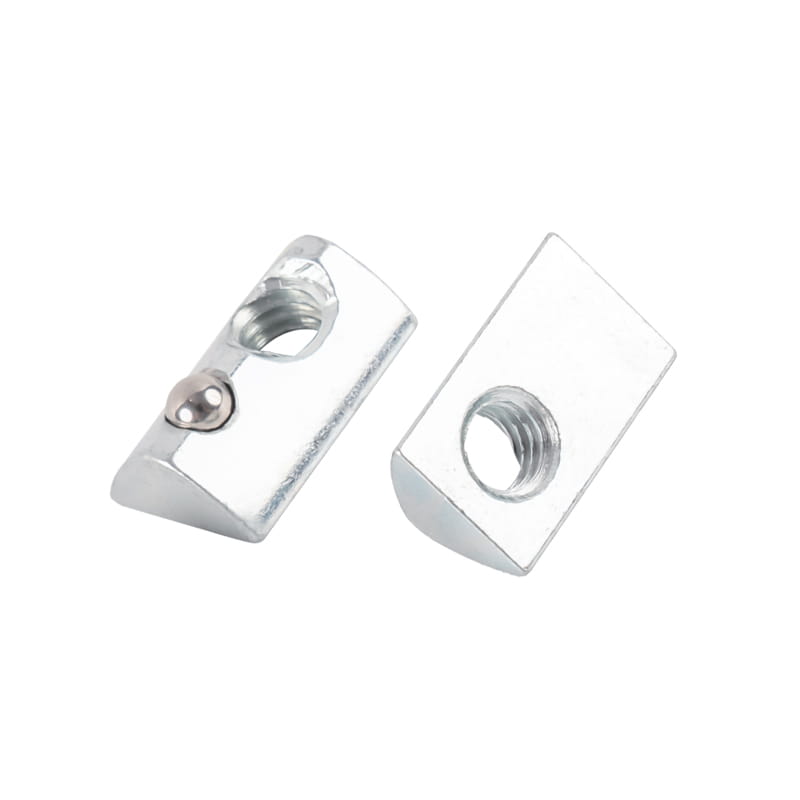

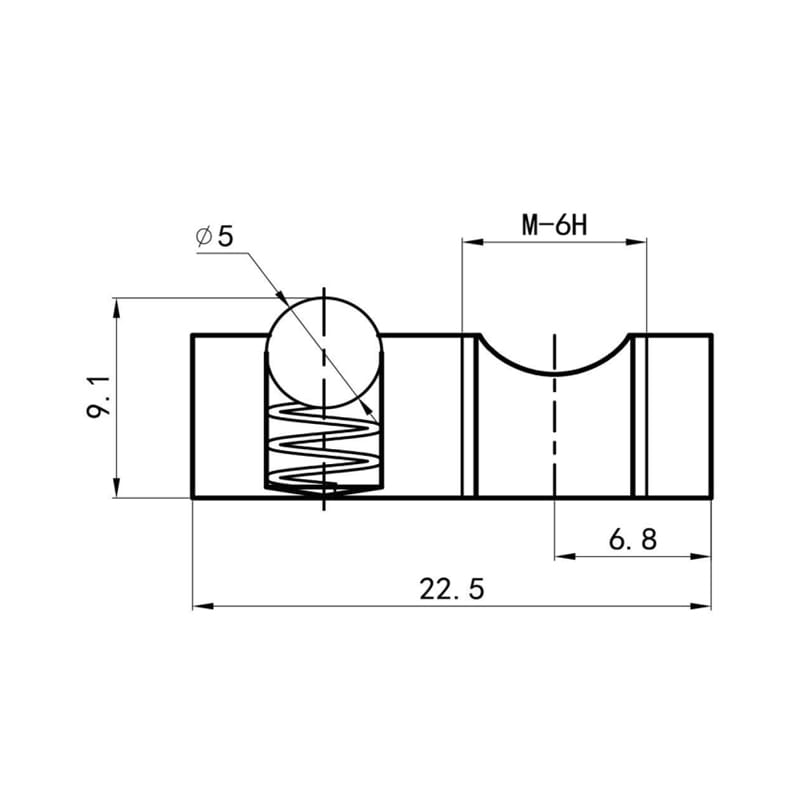

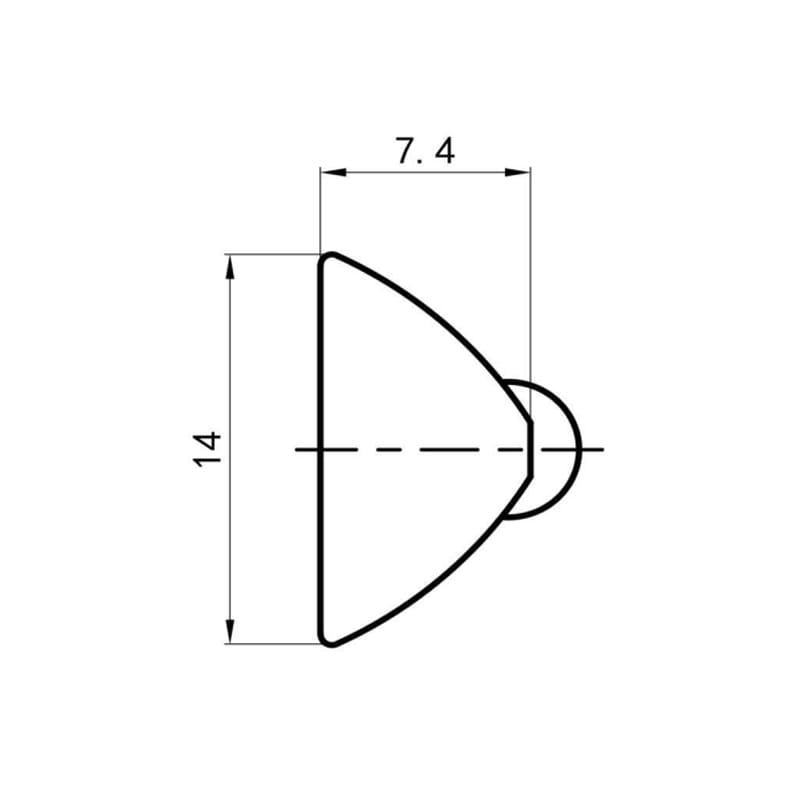

2210.008.001

Part No.	Thread	Surface	Material	Weight(g)
2210.008.001	M4	Zinc plated	Carbon steel	11.3
2210.008.002	M5	Zinc plated	Carbon steel	10.8
2210.008.003	M6	Zinc plated	Carbon steel	10.2
2210.008.004	M8	Zinc plated	Carbon steel	9.40

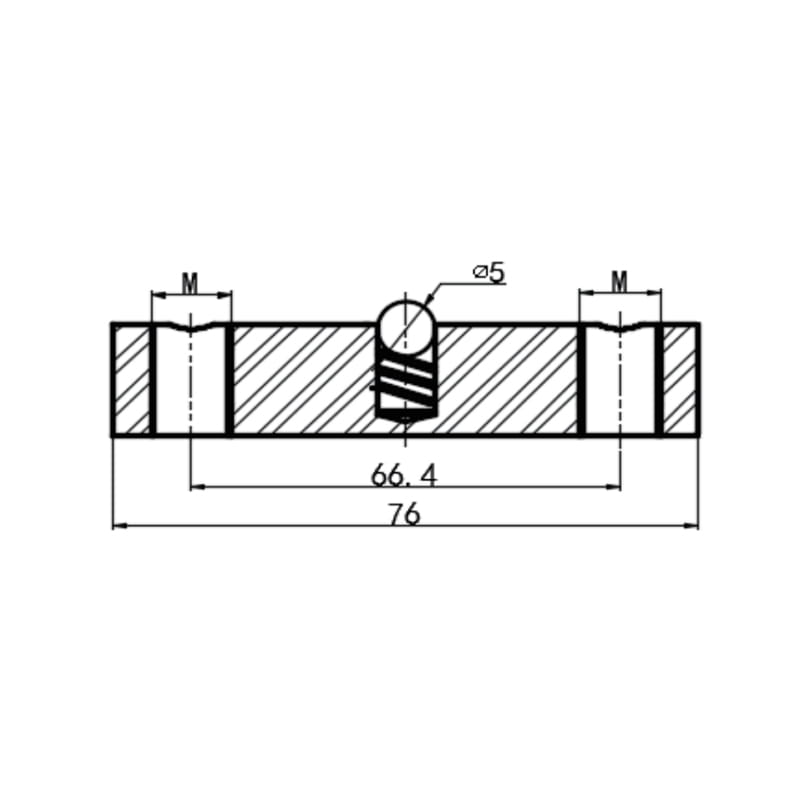

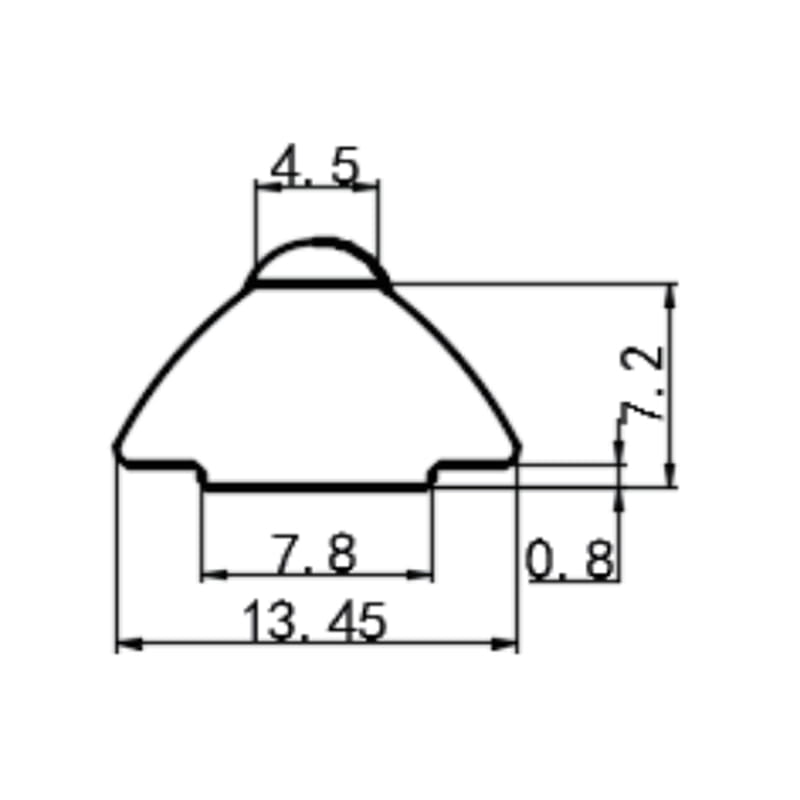

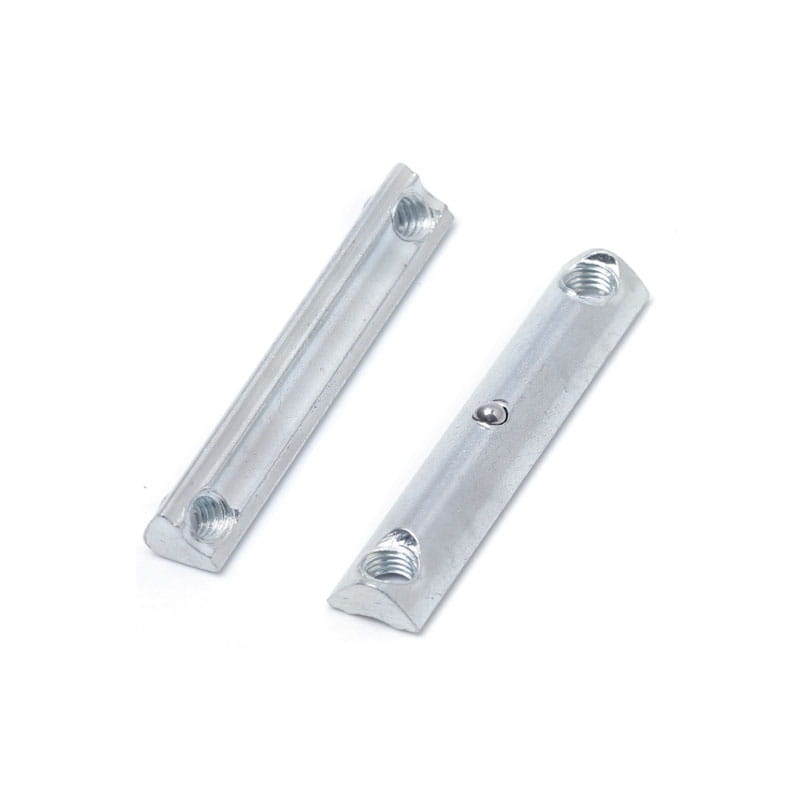

Carbon steel nut with spring ball slot 8

Carbon steel nut with spring ball slot 8

Contact us

Part No.

Thread

Surface

Material

Weight(g)

2212.008.003

M6

Zinc plated

Carbon steel

40.00

×

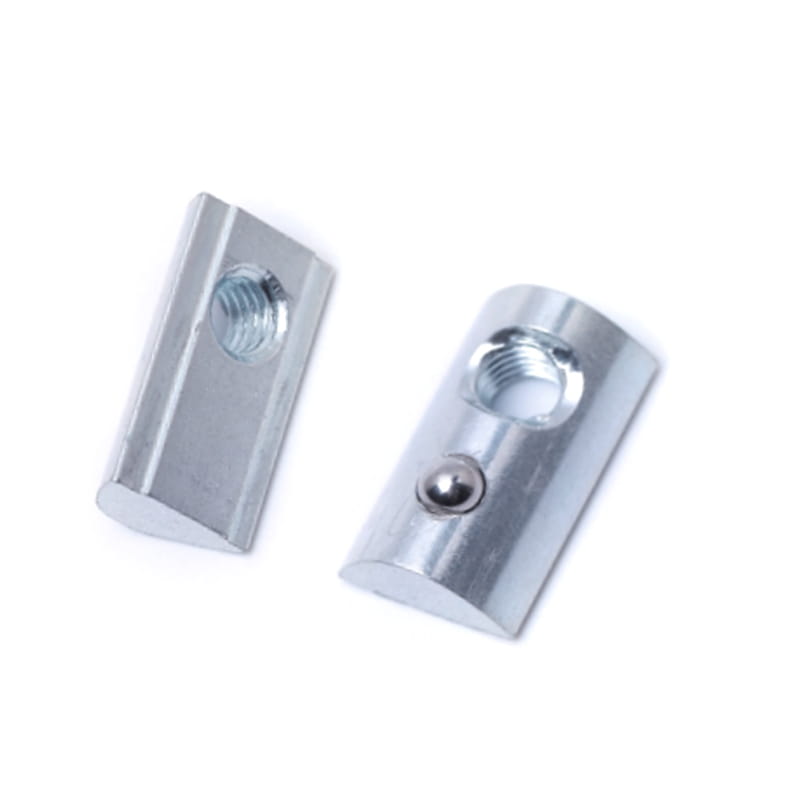

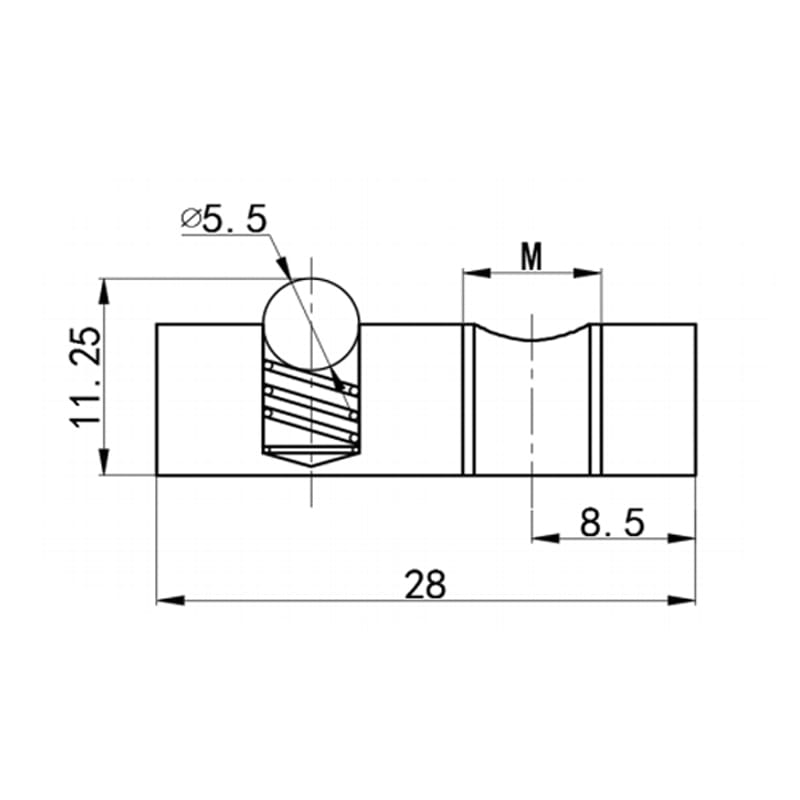

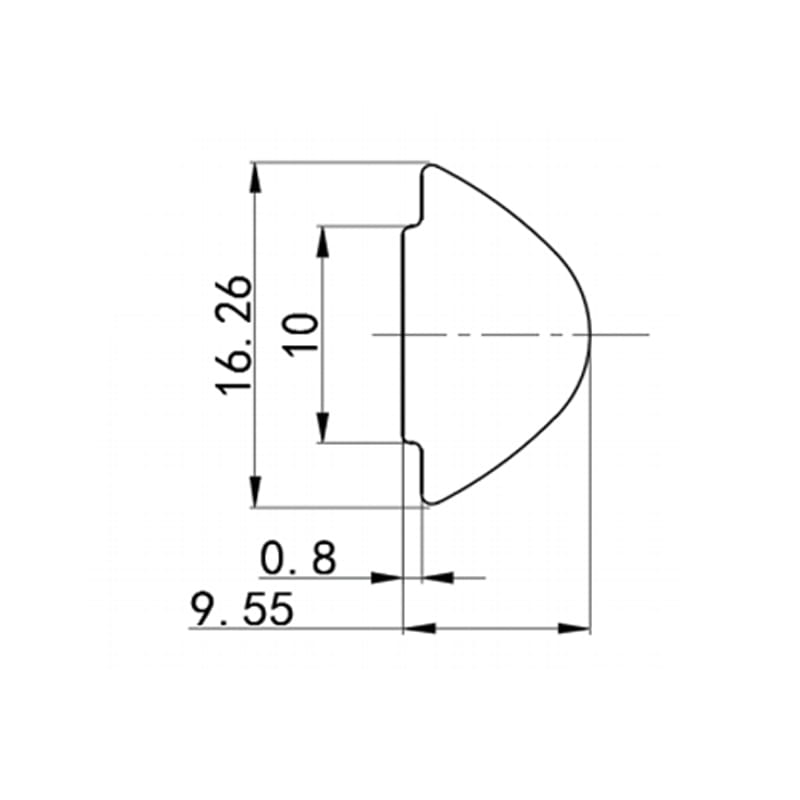

Carbon steel nut with spring ball slot 10

Part No.	Thread	Surface	Material	Weight(g)
2213.010.001	M4	Zinc plated	Carbon steel	22.70
2213.010.002	M5	Zinc plated	Carbon steel	21.50
2213.010.003	M6	Zinc plated	Carbon steel	20.30
2213.010.004	M8	Zinc plated	Carbon steel	19.10

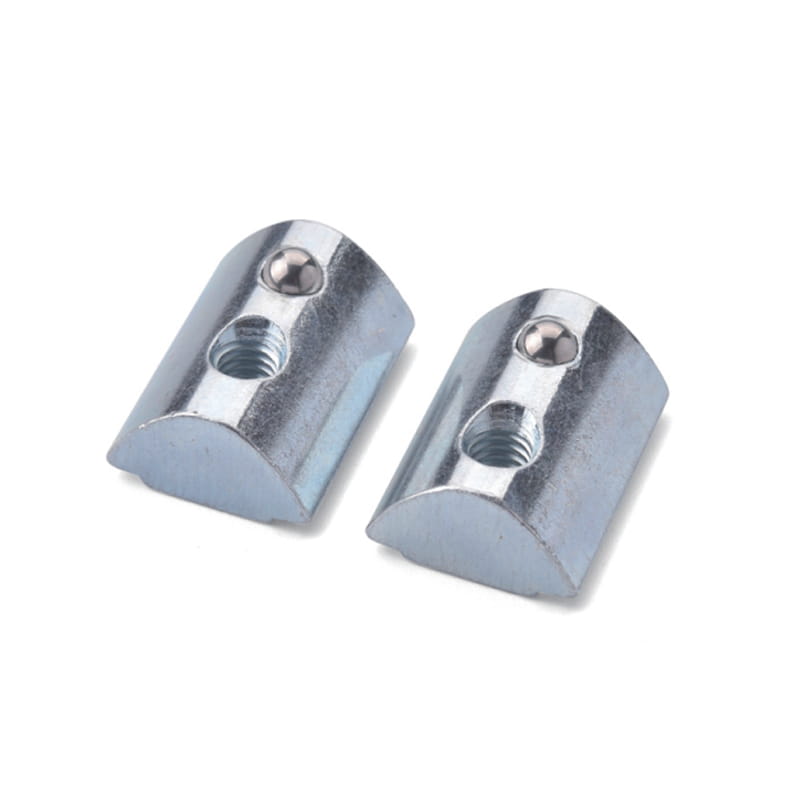

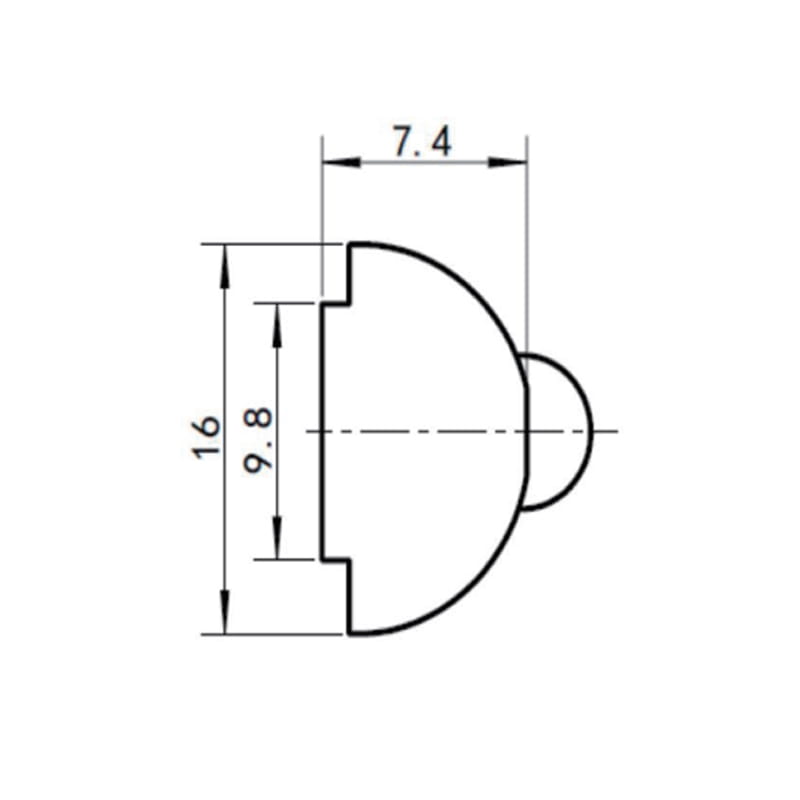

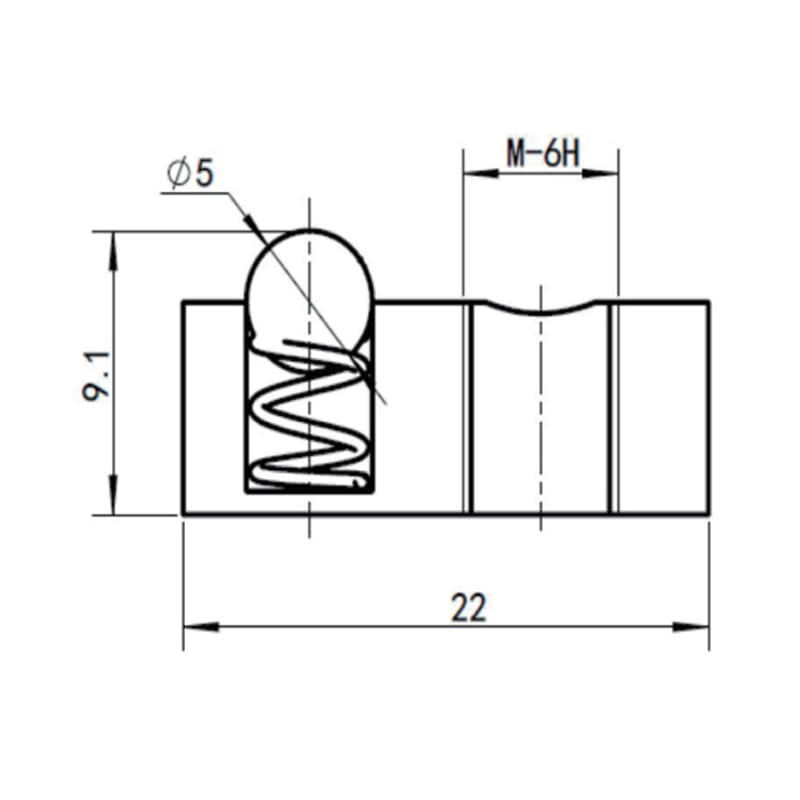

Carbon steel nut with spring ball slot 10

Part No.	Thread	Surface	Material	Weight(g)
2214.010.001	M4	Zinc plated	Carbon steel	13.30
2214.010.002	M5	Zinc plated	Carbon steel	13.00
2214.010.003	M6	Zinc plated	Carbon steel	12.70
2214.010.004	M8	Zinc plated	Carbon steel	12.40

With a remarkable 19 years production experience, our company has established itself as a key provider of Profile T Slot Nuts with Spring Loaded Ball, offering a diverse range of item types designed to elevate your assembly solutions. Our unwavering commitment to excellence is underscored by our professional quality control processes, ensuring that every product leaving our facility meets the highest industry standards.

Our Profile T Slot Nuts with Spring Loaded Ball are ingeniously crafted to enhance the versatility and functionality of T-slotted aluminum extrusion profiles. Equipped with a spring-loaded ball mechanism, these nuts offer a secure and adjustable connection, allowing for rapid and hassle-free component positioning and attachment.

Our extensive item types cater to a myriad of applications, spanning industries such as manufacturing, automation, robotics, and beyond. From standard sizes to specialized variants, our Profile T Slot Nuts with Spring Loaded Ball provide tailored solutions to accommodate varying profile dimensions and assembly requirements.

What sets us apart is our 19 years of experience, during which we've finely honed our expertise in producing innovative and reliable T Slot Nut solutions. Our professional quality control measures are intrinsic to our manufacturing process, ensuring that every nut embodies precision, durability, and seamless functionality.

Key advantages of choosing our Profile T Slot Nuts with Spring Loaded Ball include:

Enhanced Flexibility: The spring-loaded ball mechanism empowers rapid adjustment and secure fastening of components, facilitating dynamic assembly configurations.

Customization: Our diverse item types offer a range of sizes and specifications, ensuring a perfect fit for various T-slotted profiles and applications.

From design concept to final assembly, our Profile T Slot Nuts with Spring Loaded Ball epitomize precision, innovation, and reliability. With 19 years of industry insight and a commitment to professional quality control, we stand as your trusted partner in crafting efficient and adaptable assembly solutions.

About Minde

Ningbo Minde Technology Co., Ltd.

The company was established in 2004 and has passed ISO9001, SGS, and RoHS certification. To create an ideal green enterprise, protect limited resources, and reduce waste and pollution, our products have passed SGS environmental testing and comply with the EU RoHS directive. As China Profile T Slot Nuts With Spring Loaded Ball Suppliers and T Slot Nuts With Spring Loaded Ball Factory, production area 12,000㎡, Two office areas 350㎡, Have 65 Experienced team-member. The major production process includes tooling designing & making, die casting, forging, stamping, precision machining, drilling, surface plating, Intelligent infrared detecting and automation packing, etc. Mostly exported to more than 35 countries and regions, major markets are the USA, Europe, the Middle East, and Southeast Asia.

Certificate Of Honor

News

MINDE Sustainability Performance Statement In 2025
17 Mar, 2025
1. Introduction At NINGBO MINDE COMPANY, we are deeply committed to integrating sustainability into ...
READ MORE
Why are T Slot Floor Elements so important in mechanical manufacturing?
03 Mar, 2025
T Slot Floor Elements play a vital role in the mechanical manufacturing industry. Whether it is fixi...
READ MORE
Made of high-strength Nylon material, Profile Uniblocks 2704.010.002 exhibits excellent fatigue resistance
26 Feb, 2025
Industrial connectors are often in a state of cyclic stress. Long-term stress may cause the formatio...
READ MORE
Key solution for hot working environments: 4801.2464.000 powder coating
19 Feb, 2025
Coating treatment under high temperature environment has always been a major challenge in the field ...
READ MORE
From Festivities to Factory: We’re Back to Support Your Aluminum Automation Projects
12 Feb, 2025
As the Year of the Snake begins, we at MINDE are celebrating a significant milestone: 21 years of e...
READ MORE

Message Feedback

T Slot Nuts With Spring Loaded Ball Industry knowledge

1. Design features of profile T slot nuts with spring loaded ball

The design features of Profile T slot nuts with spring loaded ball are one of the key reasons why it is highly regarded in the industrial field. Firstly, their shape is perfectly compatible with T-channels, which means they can be easily inserted and fixed in T-channels, providing reliable connections for various structures and assemblies. This compatibility makes their application in industrial manufacturing and assembly processes very flexible and convenient.

Profile T Slot Nuts With Spring Loaded Ball is equipped with a spring loaded ball, which is one of its unique design features. These balls are located at the base of the nut and are spring-loaded to provide additional support and retention in the T-channel. This design makes the installation process easier and more efficient, requiring no additional tools or equipment, while ensuring a strong and stable connection.

Profile T Slot Nuts With Spring Loaded Ball are usually made of high-strength metal materials, such as stainless steel or aluminum alloy. This material selection ensures reliability and durability in high pressure and vibration environments, as well as good corrosion resistance, making it suitable for a variety of industrial applications.

Taken together, the design features of Profile T Slot Nuts With Spring Loaded Ball make it one of the most popular connecting components in the industrial field. Its compatibility, spring-loaded ball design, and premium material selection ensure reliability and efficiency in a variety of applications.

2. Installation and maintenance methods of profile T slot nuts with spring loaded ball

Proper installation and maintenance are key to keeping Profile T Slot Nuts With Spring Loaded Ball functioning properly and extending its service life. During the installation process, you first need to ensure that the T-channel and nut surfaces are clean and ensure their compatibility. Then, insert the nut into the T-channel and make sure the spring-loaded ball moves freely and provides solid support. After installation is complete, conduct a load test to ensure the connection is secure.

In terms of maintenance, it is very important to regularly check the connection status of the Profile T Slot Nuts With Spring Loaded Ball and the movement of the spring-loaded ball. If a loose connection or failed spring-loaded ball is found, it should be adjusted or replaced immediately. In addition, regular cleaning and lubrication are also key steps to maintain its normal operation, which can extend its service life and reduce the failure rate.

Through correct installation and effective maintenance, the stability and reliability of Profile T Slot Nuts With Spring Loaded Ball in industrial applications can be guaranteed, improving production efficiency and reducing maintenance costs.

3. Application of profile T slot nuts with spring loaded ball in industrial automation

With the continuous development of industrial automation technology, Profile T Slot Nuts With Spring Loaded Ball is increasingly used in automated production lines and mechanical equipment. Its quick installation and reliable connection make it an important component in automation systems. In automated production lines, they can be used to quickly fix and connect various components and workpieces to improve production efficiency and quality.

In mechanical equipment, Profile T Slot Nuts With Spring Loaded Ball also plays a key connection role. They can be used to fix and adjust various mechanical components to ensure the stability and normal operation of the equipment. Its quick installation and reliable connection make it the first choice for machinery and equipment manufacturers and users.

Through extensive application in industrial automation, Profile T Slot Nuts With Spring Loaded Ball not only improves production efficiency and quality, but also promotes technological progress and innovation in the industrial field. As automation technology continues to develop, the demand for such efficient connection solutions will continue to grow, providing a broad space for development of the Profile T Slot Nuts With Spring Loaded Ball market.
