About Minde

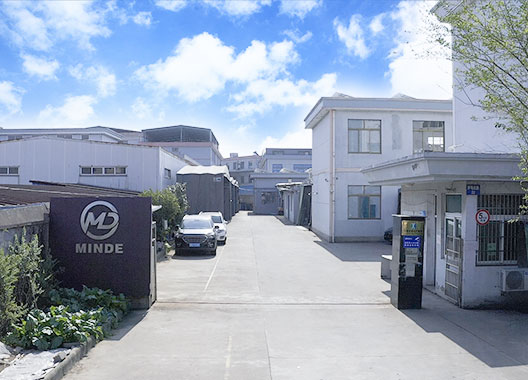

Ningbo Minde Technology Co., Ltd.
Ningbo Minde Technology Co., Ltd.
The company was established in 2004 and has passed ISO9001, SGS, and RoHS certification. To create an ideal green enterprise, protect limited resources, and reduce waste and pollution, our products have passed SGS environmental testing and comply with the EU RoHS directive. As China aluminum profile connectors manufacturers and aluminum profile connectors factory, production area 12,000㎡, Two office areas 350㎡, Have 65 Experienced team-member. The major production process includes tooling designing & making, die casting, forging, stamping, precision machining, drilling, surface plating, Intelligent infrared detecting and automation packing, etc. Mostly exported to more than 35 countries and regions, major markets are the USA, Europe, the Middle East, and Southeast Asia.
Certificate Of Honor
  • SGS -RoHs testing 02 SHAEC22002232201
  • Environmental System
  • Health System
  • Quality System
  • Test Report
News
Message Feedback
Products Industry knowledge

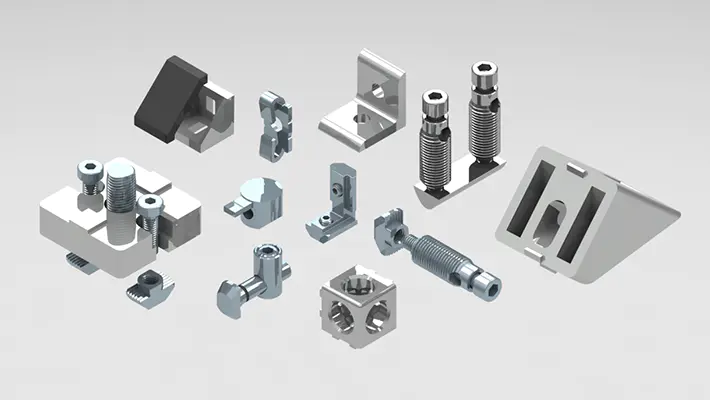

Design features of aluminum profile connectors
Aluminum profile connectors are characterized by their careful engineering to meet the needs of a wide range of applications, from construction and industry to automotive and home-made.
Lightweight and High Strength: Made of high-strength aluminum material, aluminum profile connectors have excellent strength and rigidity while remaining relatively lightweight. This allows the connector to reduce the weight of the overall structure while providing solid support, in line with the trend of lightweight design.
Modular Design: Connectors often feature a modular design, allowing them to easily adapt to different shapes and sizes of aluminum profiles. This design allows the connector to be used flexibly in a variety of projects, giving designers greater freedom to customize and adapt the structure to meet specific needs.
Versatility: Aluminum profile connectors are designed to serve a variety of purposes and can be adapted to different industries and applications. Its versatility makes it ideal for a variety of structures and assemblies, providing a wide range of application possibilities in construction and manufacturing projects.
Easy Installation: The connector is designed with simplicity and ease of installation in mind. Typically, connectors utilize bolts, nuts, or other simple connection mechanisms, making the installation process quick and intuitive. This helps reduce the time cost of the construction and manufacturing process and improves overall efficiency.
Adjustability: The design of aluminum profile connectors allows for a certain degree of adjustability to accommodate different installation and usage requirements. This flexibility allows the connector to respond to special situations and meet individual needs in engineering projects.
Sustainability: Aluminum profile connectors are usually made of recyclable aluminum materials and comply with the principles of sustainable development. Its production and use processes have relatively little impact on the environment, helping to promote the development of green buildings and manufacturing.

Installation process of aluminum profile connectors
The installation process of aluminum profile connectors is usually relatively simple, but it still requires professional knowledge and skills.
Design Planning: Detailed design planning is required before the installation process can begin. This includes determining the location, number, and type of connectors and their relationship to other structural components. The design planning stage also needs to consider the load requirements, structural stability and overall safety of the project.
Preparation: Before the actual installation, some preparation is required. This may include cleaning the surface of the aluminum profile to ensure it is flat and clean. Additionally, connectors and other accessories need to be inspected to make sure they are in good condition and not damaged or defective.
Measure and Mark: Take measurements on the aluminum profile and use a marking tool to mark the exact location of the connector. This helps ensure proper connector alignment and avoids errors during installation. The measuring and marking phase is a critical step in ensuring accurate connector installation.
Component preparation: Prepare connectors and other necessary components, ensuring that their specifications and dimensions match the design plan. This may involve checking the integrity of connecting elements such as bolts, nuts, washers, etc., and ensuring they meet project requirements.
Connector Installation: Place the connector in the pre-measured and marked location, making sure it is aligned accurately. Using an appropriate tool, such as a wrench or torque wrench, tighten the connector's bolts and nuts. Ensure the connector is installed with the expected tightening force according to the specifications and guidelines provided by the manufacturer.
Inspection and Adjustment: After the connector is installed, carefully inspect it. Make sure there are no obvious gaps or misalignments between the connector and the aluminum profile. Fine-tuning is required as needed to ensure the overall stability and accuracy of the structure.
Safety Review: Conduct a safety review to ensure that the installation process complies with engineering standards and safety regulations. Check that the connector is secure and not loose or damaged. Make sure all safety requirements are met to prevent potential structural problems.
Documentation: Document the connector installation process, including detailed measurements, tools and materials used, and any adjustments or repairs. This facilitates future maintenance and overhaul work and ensures traceability of the structure.
