Profile Pivot Joints Manufacturers

Product Categories

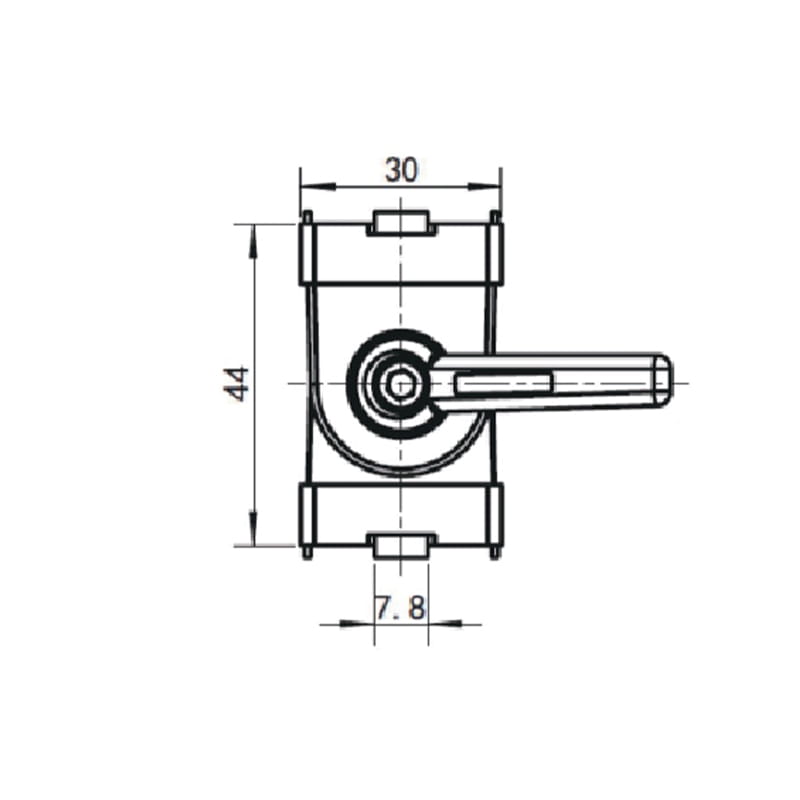

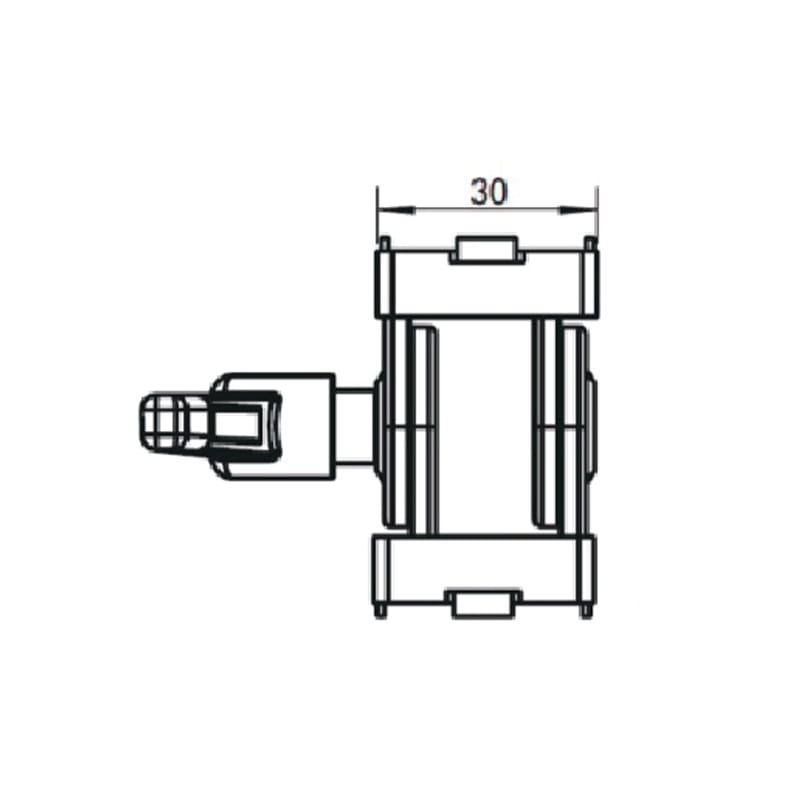

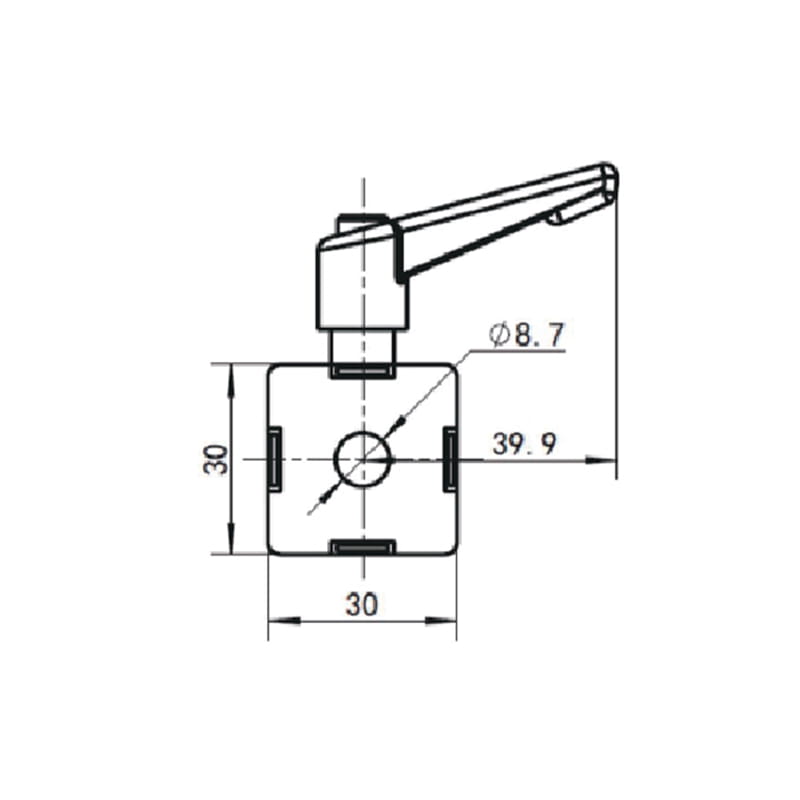

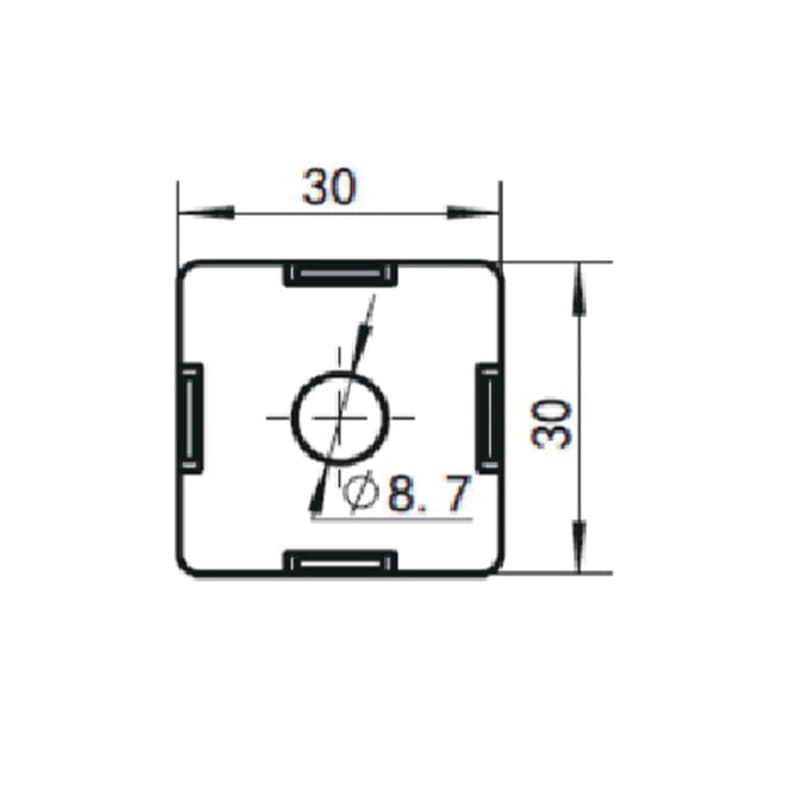

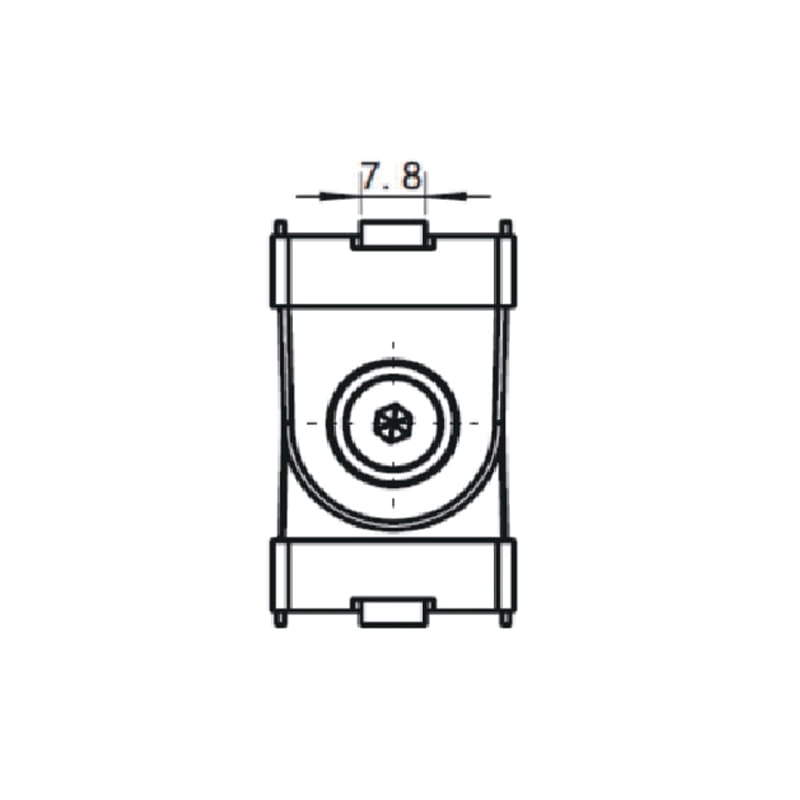

  • Zinc Alloy Flexible Pivot Joint for Slot 6mm 3030 Series Aluminum Extrusion Profile
    Zinc Alloy Flexible Pivot Joint for Slot 6mm 3030 Series Aluminum Extrusion Profile
    Zinc Alloy Flexible Pivot Joint for Slot 6mm 3030 Series Aluminum Extrusion Profile

    Zinc Alloy Flexible Pivot Joint for Slot 6mm 3030 Series Aluminum Extrusion Profile

    Zinc Alloy Flexible Pivot Joint for Slot 6mm 3030 Series Aluminum Extrusion Profile Zinc Alloy Flexible Pivot Joint for Slot 6mm 3030 Series Aluminum Extrusion Profile Zinc Alloy Flexible Pivot Joint for Slot 6mm 3030 Series Aluminum Extrusion Profile
    Contact us
    Part No.
    Specification
    Surface
    Material
    Weight(g)
    2601.006.000
    3030
    Alu color lacquered
    Zinc alloy
    127.20
    ×
  • Zinc Alloy Flexible Pivot Joint for Slot 6mm 3030 Series Aluminum Extrusion Profile
    Zinc Alloy Flexible Pivot Joint for Slot 6mm 3030 Series Aluminum Extrusion Profile
    Zinc Alloy Flexible Pivot Joint for Slot 6mm 3030 Series Aluminum Extrusion Profile

    Zinc Alloy Flexible Pivot Joint for Slot 6mm 3030 Series Aluminum Extrusion Profile

    Zinc Alloy Flexible Pivot Joint for Slot 6mm 3030 Series Aluminum Extrusion Profile Zinc Alloy Flexible Pivot Joint for Slot 6mm 3030 Series Aluminum Extrusion Profile Zinc Alloy Flexible Pivot Joint for Slot 6mm 3030 Series Aluminum Extrusion Profile
    Contact us
    Part No.
    Specification
    Surface
    Material
    Weight(g)
    2602.006.000
    3030
    Alu color lacquered
    Zinc alloy
    155.60
    ×

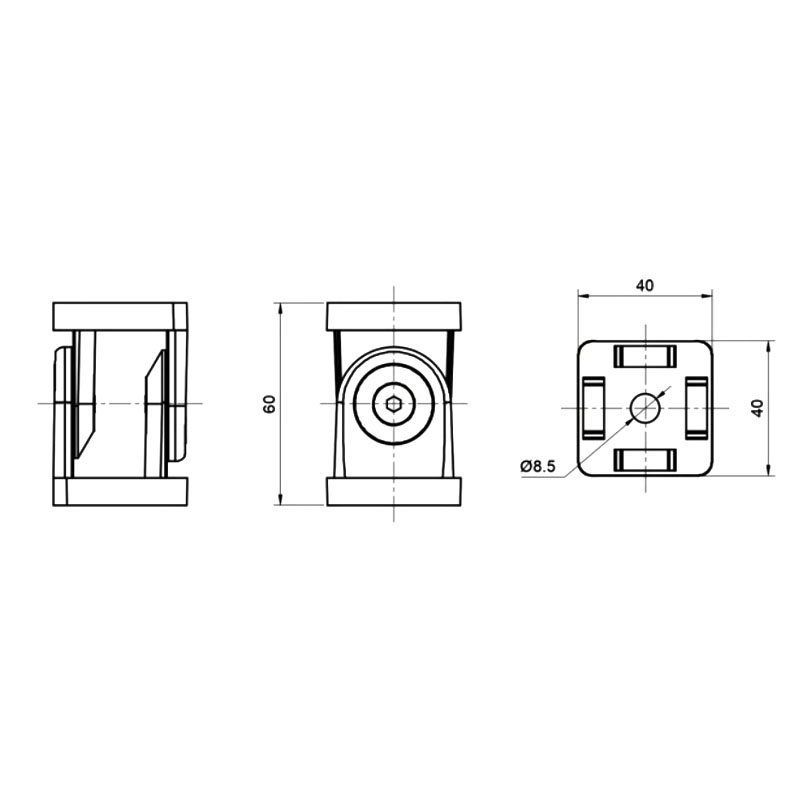

  • 4040 Series Zinc Alloy Flexible Pivot Joint Connector for 3D Printer Aluminum Extrusion Profile Accessories
    4040 Series Zinc Alloy Flexible Pivot Joint Connector for 3D Printer Aluminum Extrusion Profile Accessories
    4040 Series Zinc Alloy Flexible Pivot Joint Connector for 3D Printer Aluminum Extrusion Profile Accessories

    4040 Series Zinc Alloy Flexible Pivot Joint Connector for 3D Printer Aluminum Extrusion Profile Accessories

    4040 Series Zinc Alloy Flexible Pivot Joint Connector for 3D Printer Aluminum Extrusion Profile Accessories
    Contact us
    Part No. Specification Surface Material Weight
    2603.008.300 4040 Alu color lacquered Zinc alloy 276.70
    ×

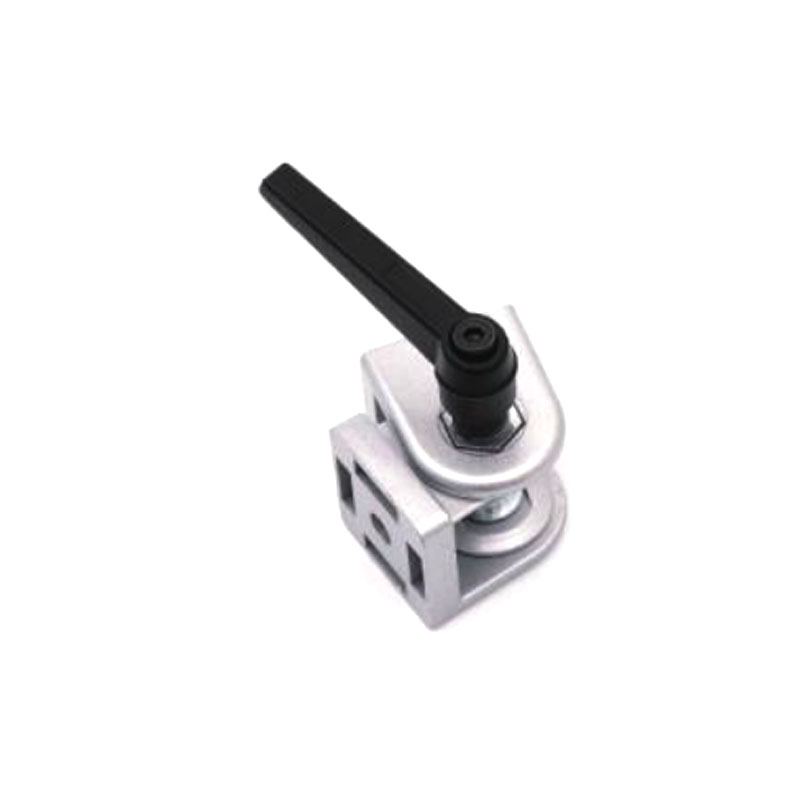

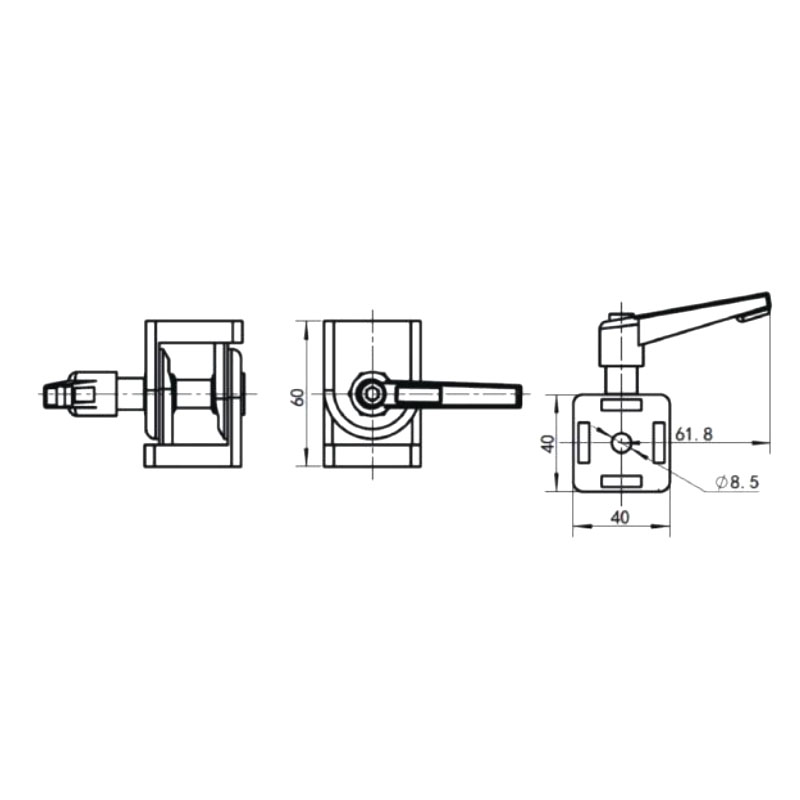

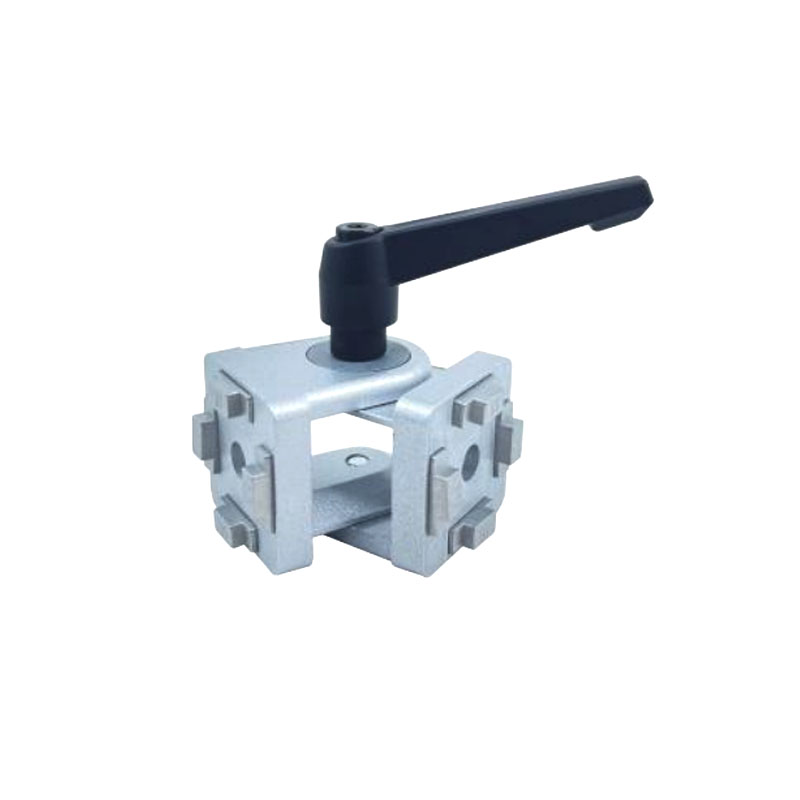

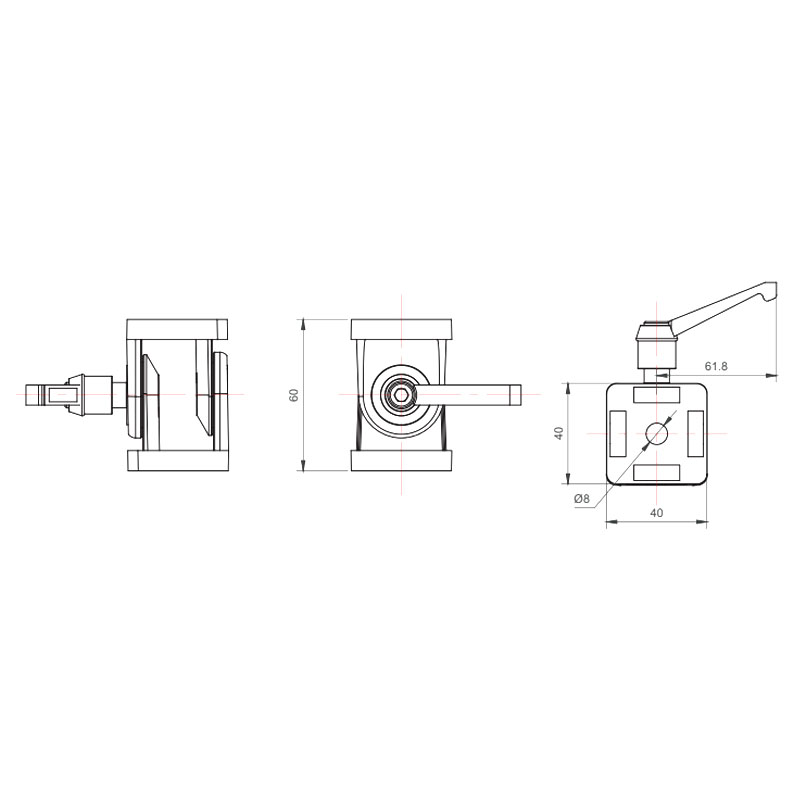

  • Zinc Alloy Flexible Pivot Joint for 4040 Aluminum Profile with Locking Leveling Handle
    Zinc Alloy Flexible Pivot Joint for 4040 Aluminum Profile with Locking Leveling Handle
    Zinc Alloy Flexible Pivot Joint for 4040 Aluminum Profile with Locking Leveling Handle

    Zinc Alloy Flexible Pivot Joint for 4040 Aluminum Profile with Locking Leveling Handle

    Zinc Alloy Flexible Pivot Joint for 4040 Aluminum Profile with Locking Leveling Handle
    Contact us
    Part No. Specification Surface Material Weight
    2604.008.000 4040 Alu color lacquered Zinc alloy 331.10
    ×

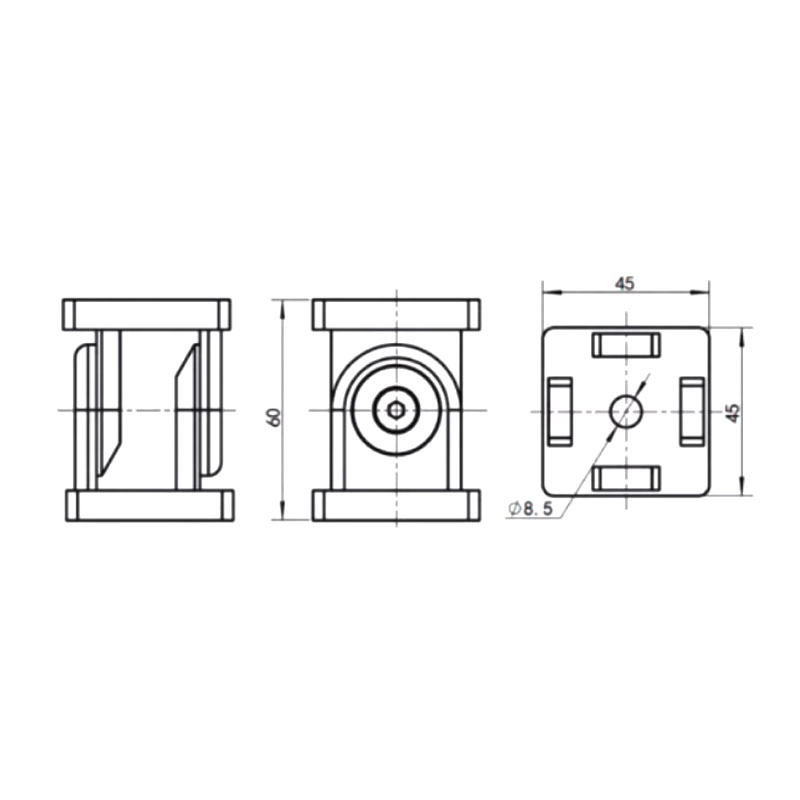

  • Zinc Alloy Flexible Pivot Joint Connector Fittings for 4545 Series Slot 10mm Aluminum Extrusion Profile
    Zinc Alloy Flexible Pivot Joint Connector Fittings for 4545 Series Slot 10mm Aluminum Extrusion Profile
    Zinc Alloy Flexible Pivot Joint Connector Fittings for 4545 Series Slot 10mm Aluminum Extrusion Profile

    Zinc Alloy Flexible Pivot Joint Connector Fittings for 4545 Series Slot 10mm Aluminum Extrusion Profile

    Zinc Alloy Flexible Pivot Joint Connector Fittings for 4545 Series Slot 10mm Aluminum Extrusion Profile
    Contact us
    Part No. Specification Surface Material Weight
    2605.010.000 4545 Alu color lacquered Zinc alloy 331.00
    ×

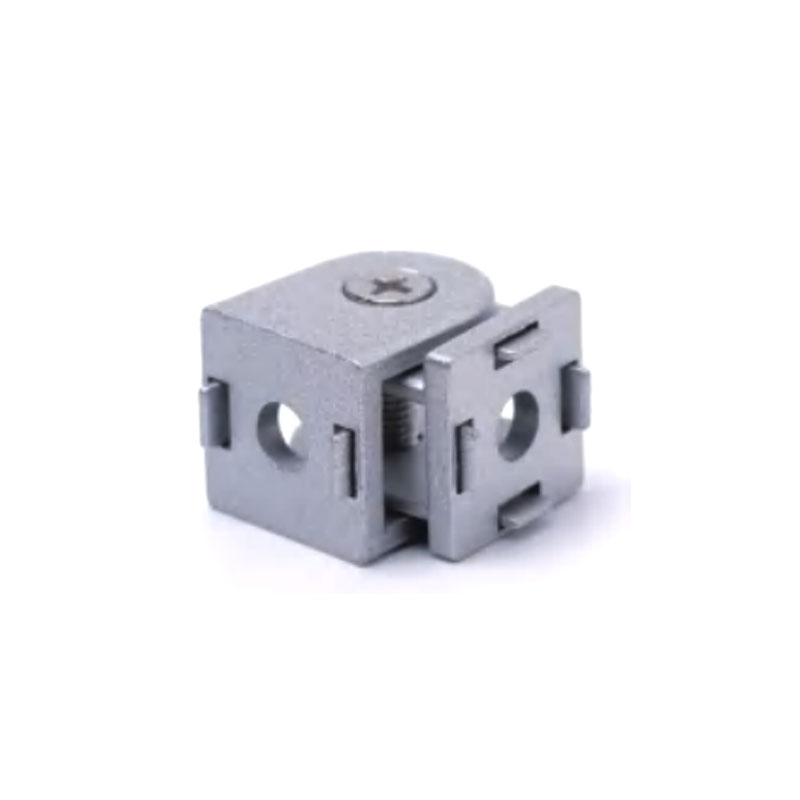

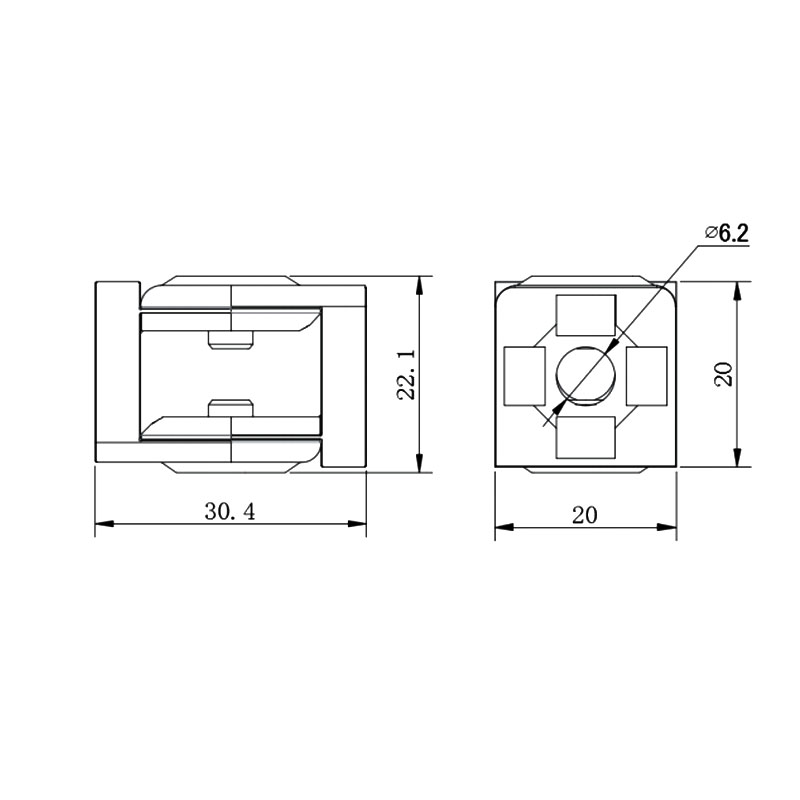

  • Zinc Alloy Flexible Pivot Joint for Slot 6mm 2020 Series Aluminum Extrusion Profile
    Zinc Alloy Flexible Pivot Joint for Slot 6mm 2020 Series Aluminum Extrusion Profile
    Zinc Alloy Flexible Pivot Joint for Slot 6mm 2020 Series Aluminum Extrusion Profile

    Zinc Alloy Flexible Pivot Joint for Slot 6mm 2020 Series Aluminum Extrusion Profile

    Zinc Alloy Flexible Pivot Joint for Slot 6mm 2020 Series Aluminum Extrusion Profile
    Contact us
    Part No. Specification Surface Material Weight
    2607.006.100 2020 Alu color lacquered Zinc alloy 38.00

    ×

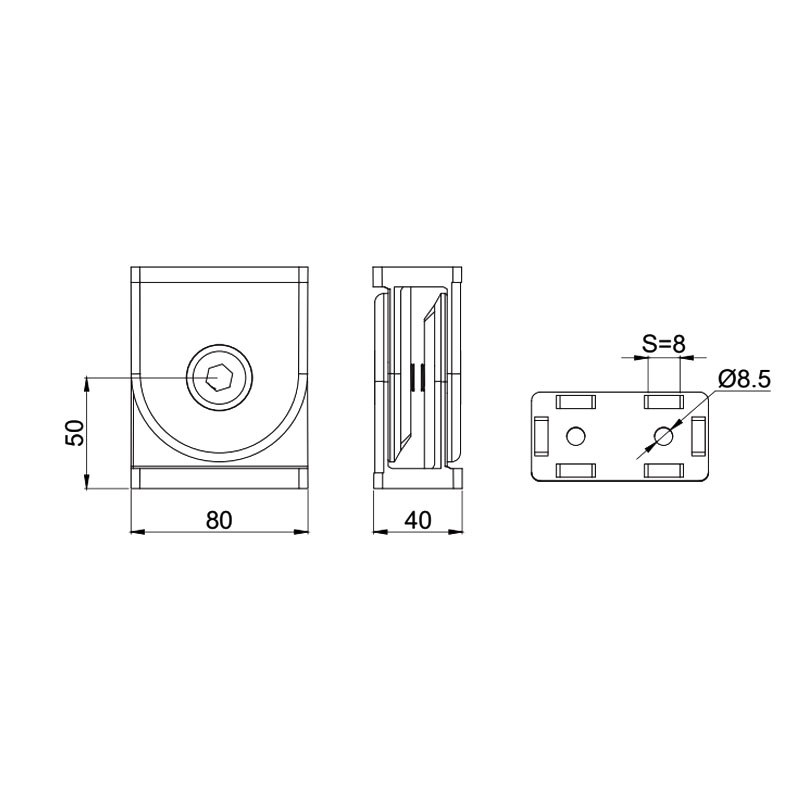

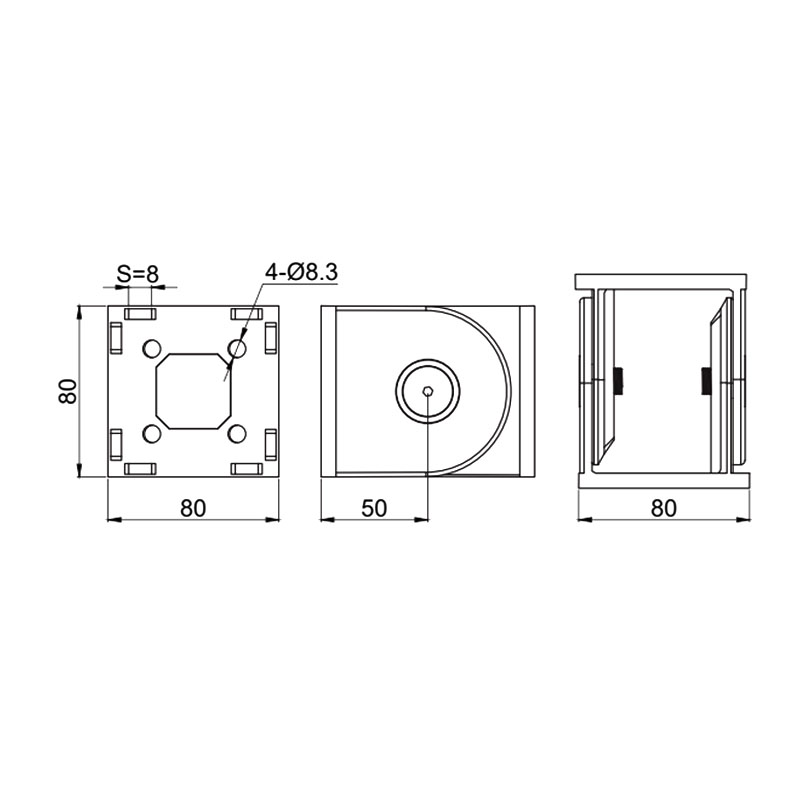

  • Zinc Alloy Flexible Pivot Joint for Slot 8mm 4080 Series Aluminum Extrusion Profile
    Zinc Alloy Flexible Pivot Joint for Slot 8mm 4080 Series Aluminum Extrusion Profile
    Zinc Alloy Flexible Pivot Joint for Slot 8mm 4080 Series Aluminum Extrusion Profile

    Zinc Alloy Flexible Pivot Joint for Slot 8mm 4080 Series Aluminum Extrusion Profile

    Zinc Alloy Flexible Pivot Joint for Slot 8mm 4080 Series Aluminum Extrusion Profile
    Contact us
    Part No. Specification Surface Material Weight
    2609.008.000 4080 Silver painting Zinc alloy 1180.00

    ×

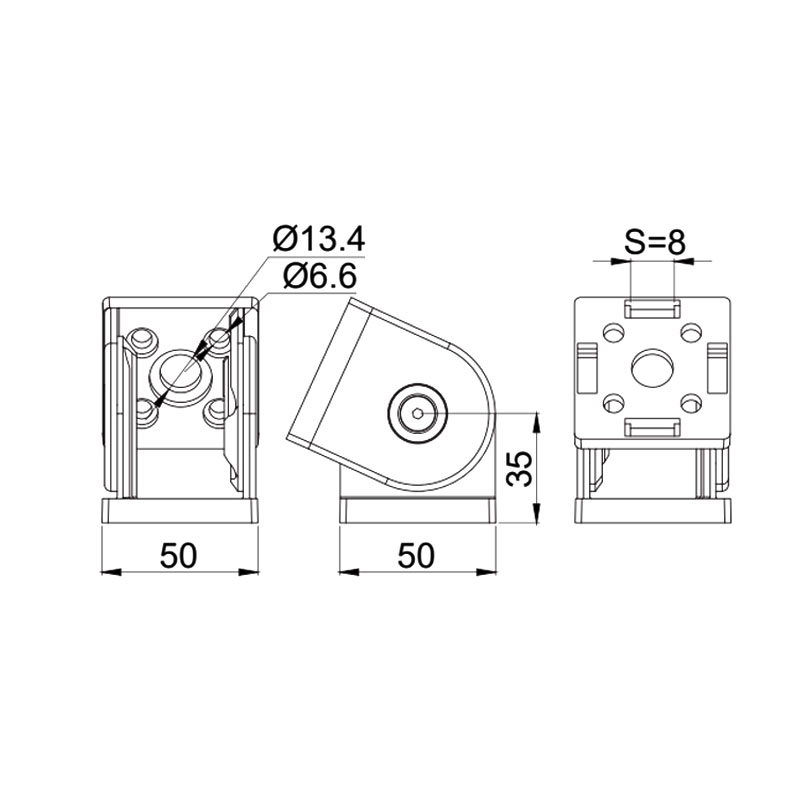

  • Zinc Alloy Flexible Pivot Joint for Slot 8mm 5050 Series Aluminum Extrusion Profile
    Zinc Alloy Flexible Pivot Joint for Slot 8mm 5050 Series Aluminum Extrusion Profile
    Zinc Alloy Flexible Pivot Joint for Slot 8mm 5050 Series Aluminum Extrusion Profile

    Zinc Alloy Flexible Pivot Joint for Slot 8mm 5050 Series Aluminum Extrusion Profile

    Zinc Alloy Flexible Pivot Joint for Slot 8mm 5050 Series Aluminum Extrusion Profile
    Contact us
    Part No. Specification Surface Material Weight
    2612.008.000 5050 Silver painting Zinc alloy 420.00

    ×
  • Zinc Alloy Flexible Pivot Joint for Slot 8mm 8080 Series Aluminum Extrusion Profile
    Zinc Alloy Flexible Pivot Joint for Slot 8mm 8080 Series Aluminum Extrusion Profile
    Zinc Alloy Flexible Pivot Joint for Slot 8mm 8080 Series Aluminum Extrusion Profile

    Zinc Alloy Flexible Pivot Joint for Slot 8mm 8080 Series Aluminum Extrusion Profile

    Zinc Alloy Flexible Pivot Joint for Slot 8mm 8080 Series Aluminum Extrusion Profile
    Contact us
    Part No. Specification Surface Material Weight
    2611.008.000 5050 Silver painting Zinc alloy 1710.00

    ×

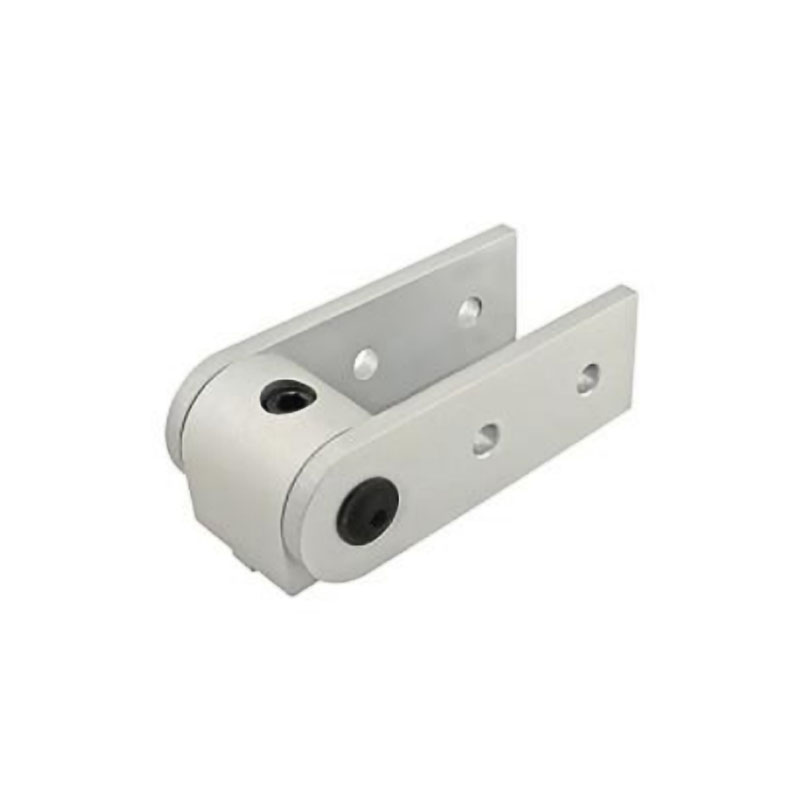

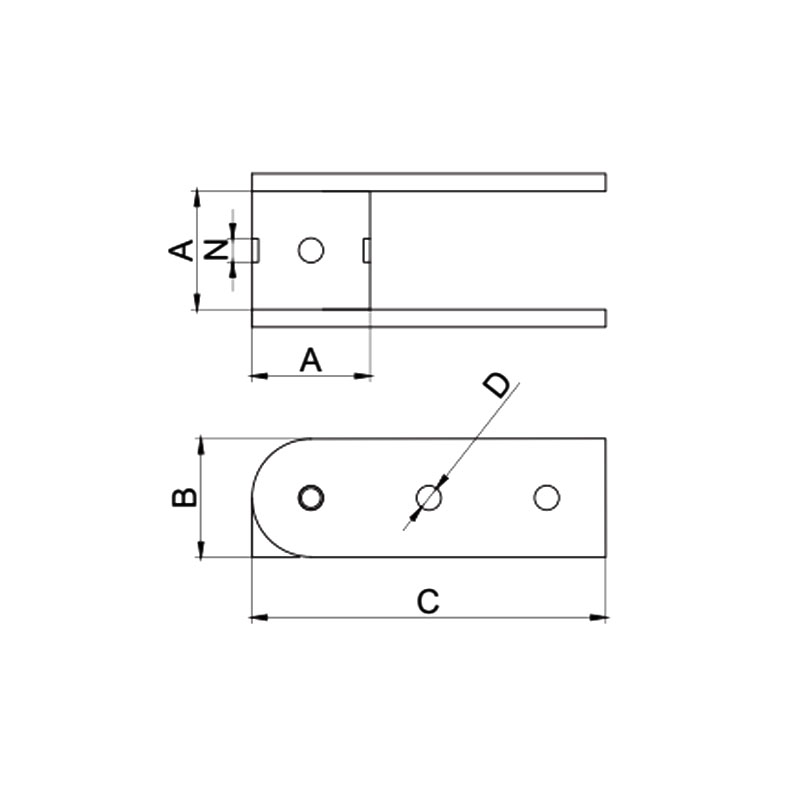

  • Anodized 6063-T5 Flexible Pivot Joint for 3030 4040 4545 Series Aluminum Extrusion Profile
    Anodized 6063-T5 Flexible Pivot Joint for 3030 4040 4545 Series Aluminum Extrusion Profile
    Anodized 6063-T5 Flexible Pivot Joint for 3030 4040 4545 Series Aluminum Extrusion Profile

    Anodized 6063-T5 Flexible Pivot Joint for 3030 4040 4545 Series Aluminum Extrusion Profile

    Anodized 6063-T5 Flexible Pivot Joint for 3030 4040 4545 Series Aluminum Extrusion Profile
    Contact us
    Part No. A B C D N
    2610.3008.000 30 28 85 6.3 6
    2610.4010.000 40 38 120 8.3 8
    2610.4510.000 45 42 140 8.3 8

    Part No. Specification Surface Material Weight
    2610.3008.000 3030-8 Anodized 6063-T 130.00
    2610.4010.000 4040-10-1 Anodized 6063-T 345.00
    2610.4510.000 4545-10 Anodized 6063-T 450.00

    ×
  • Zinc Alloy Flexible Pivot Joint for 4040 Aluminum Profile with Locking Leveling Handle
    Zinc Alloy Flexible Pivot Joint for 4040 Aluminum Profile with Locking Leveling Handle
    Zinc Alloy Flexible Pivot Joint for 4040 Aluminum Profile with Locking Leveling Handle

    Zinc Alloy Flexible Pivot Joint for 4040 Aluminum Profile with Locking Leveling Handle

    Zinc Alloy Flexible Pivot Joint for 4040 Aluminum Profile with Locking Leveling Handle
    Contact us
    Part No. Specification Surface Material Weight
    2603.008.400 4040-8+10 Silver painting  Zinc Alloy 365.00

    ×
At Ningbo Minde Technology, we proudly present our flagship product, the Profile Pivot Joints, meticulously engineered from high-quality Zinc alloy material. These Pivot Joints are the cornerstone of our production range, setting new standards for modular structure assembly.

Precision Engineering:
Our Profile Pivot Joints embody precision in every aspect. Crafted with meticulous attention to detail, they ensure seamless articulation and rotation between T-slot aluminum profiles, facilitating the creation of dynamic and adaptable structures.

Smooth Articulation:
Designed for controlled articulation, our Pivot Joints enable smooth and precise movement between profiles. They are ideal for creating joints, pivoting connections, and articulating elements within your structures.

Strength and Reliability:
Strength and reliability are non-negotiable in automation and manufacturing. Our Pivot Joints are built to withstand demanding conditions, ensuring that your structures remain stable and dependable over time.

Zinc Alloy Material:
These Pivot Joints are crafted from high-quality Zinc alloy material, known for its strength and durability. The use of Zinc alloy guarantees long-lasting performance and corrosion resistance.

Customization for Your Needs:
We understand that each project is unique. Our team collaborates closely with you to provide Pivot Joints tailored to your precise specifications. Whether it's variations in dimensions, angles, or unique design requirements, we have the expertise to deliver customized solutions.

In-House Production Excellence:
Minde Technology takes pride in its in-house production capabilities. This ensures that every Profile Pivot Joint undergoes stringent quality control measures, resulting in consistent performance and reliability.

Unlock Infinite Possibilities:
With Profile Pivot Joints from Ningbo Minde Technology, your projects gain access to limitless possibilities. Our connectors provide the foundation for constructing dynamic, adaptable, and professional-grade structures in various industries.

In conclusion, our Profile Pivot Joints represent the blend of precision, durability, and flexibility in modular structure assembly. With our 19 years of experience and unwavering commitment to excellence, we empower your projects with the finest connectors available in the industry. Experience precision engineering at its with Minde Technology.
About Minde
Ningbo Minde Technology Co., Ltd.
Ningbo Minde Technology Co., Ltd.
The company was established in 2004 and has passed ISO9001, SGS, and RoHS certification. To create an ideal green enterprise, protect limited resources, and reduce waste and pollution, our products have passed SGS environmental testing and comply with the EU RoHS directive. As China Profile Pivot Joints Manufacturers and Profile Pivot Joints Suppliers, production area 12,000㎡, Two office areas 350㎡, Have 65 Experienced team-member. The major production process includes tooling designing & making, die casting, forging, stamping, precision machining, drilling, surface plating, Intelligent infrared detecting and automation packing, etc. Mostly exported to more than 35 countries and regions, major markets are the USA, Europe, the Middle East, and Southeast Asia.
Certificate Of Honor
  • SGS -RoHs testing 02 SHAEC22002232201
  • Environmental System
  • Health System
  • Quality System
  • Test Report
  • Test Report
News
Message Feedback
Profile Pivot Joints Industry knowledge
1.Anatomy of Profile Pivot Joints
Profile pivot joints, as integral components in mechanical systems, exhibit a sophisticated anatomy designed for optimal functionality and longevity. These components together ensure smooth and controlled movement. Pivot pins, a fundamental element, serve as the axis around which the joint rotates. These pins are meticulously manufactured to withstand varying loads while maintaining minimal friction. The choice of materials for these pins is critical, often involving high-strength alloys or hardened steel to guarantee durability and resistance to wear. Complementing the pivot pins are the bushings, which act as the bearing surface between moving parts, providing a low-friction interface. These components are strategically designed to distribute loads evenly, ensuring the longevity of the joint by minimizing stress concentrations. Material selection for bushings often involves self-lubricating materials or coatings to further reduce friction and enhance overall performance. The profiles of the joint are equally crucial, determining the range of motion and the specific applications for which the joint is suitable. The profile geometry is carefully calculated to balance factors such as stability, flexibility, and load-bearing capacity. These profiles can range from simple cylindrical shapes to more complex designs, depending on the requirements of the system.

2.Applications Across Industries of Profile Pivot Joints
Profile pivot joints find extensive applications across diverse industries, showcasing their adaptability and versatility. In the automotive sector, these joints are commonly employed in suspension systems, steering mechanisms, and gearbox linkages. The precision and stability they offer contribute to improved vehicle handling and overall performance. Aerospace applications benefit from the reliability of profile pivot joints in control surfaces, landing gear systems, and actuation mechanisms. The ability of these joints to handle high loads and maintain precise motion is particularly crucial in the demanding conditions of aerospace environments. Manufacturing machinery often incorporates profile pivot joints in robotic arms, conveyors, and material handling systems. Their ability to facilitate smooth and controlled movement enhances the efficiency of production processes, leading to increased productivity and reduced downtime.

3.Advantages of Profile Pivot Joints
The advantages of profile pivot joints make them a preferred choice in various applications. Reduced friction is a primary benefit, leading to lower energy consumption and decreased wear on components. This not only enhances the lifespan of the joints but also contributes to overall system efficiency. Increased load capacity is another notable advantage. Profile pivot joints can handle substantial loads while maintaining stability and precision in motion. This makes them suitable for applications where heavy loads or dynamic forces are involved, such as in heavy machinery or industrial equipment. Enhanced resistance to wear and tear is a critical factor in the longevity of mechanical systems. The careful selection of materials and design considerations in profile pivot joints results in components that withstand the rigors of continuous operation, minimizing maintenance requirements and associated downtime.
