Solar Mounting Components Manufacturers

Product Categories

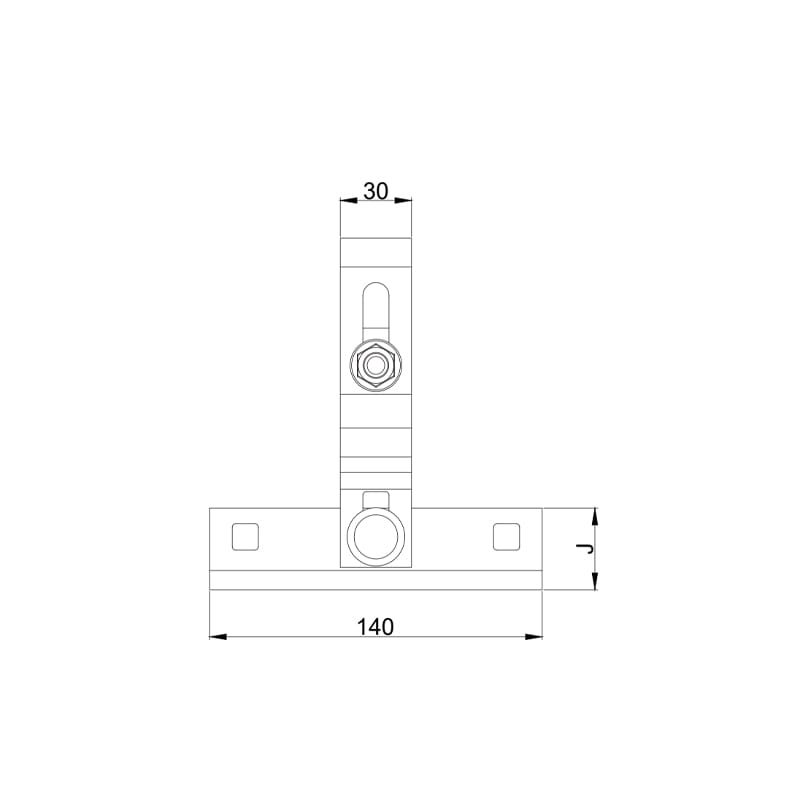

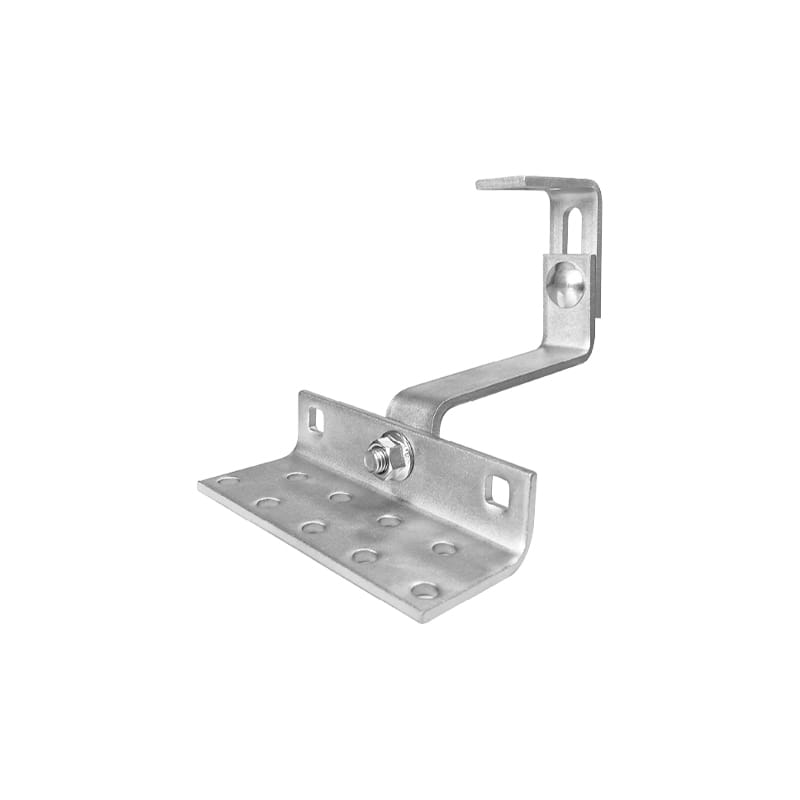

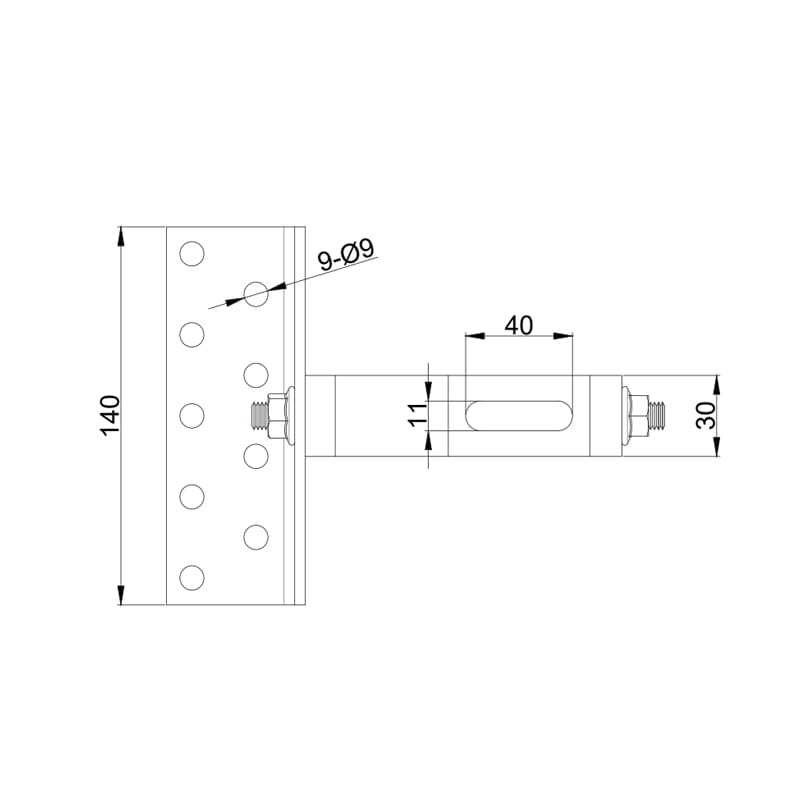

  • 3932.140.002
    3932.140.002
    3932.140.002

    3932.140.002

    Contact us
    Part No.
    Specification
    Surface
    Material
    Weight(g)
    3932.140.002
    140x60x115
    Shot Blasting
    SS304
    650.00
    3932.140.003
    140x61x117
    Shot Blasting
    SS304
    766.00

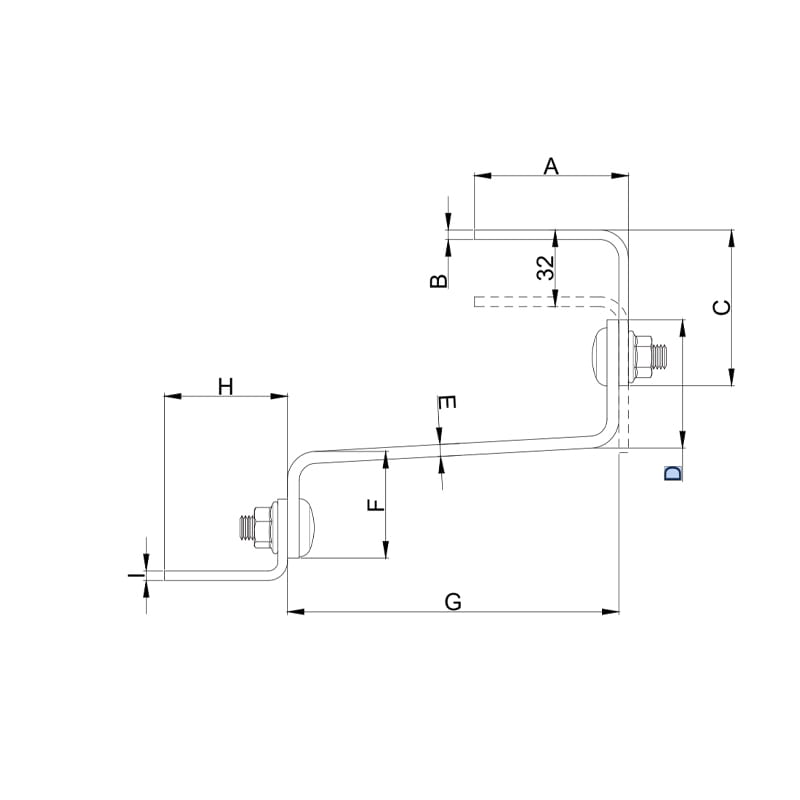

    Ltem A B C D E F G H I J
    3932.140.002 60 5 70 55 5 44 115 54 5 33
    3932.140.003 61 5 70 45 6 55 117 55 5 35
    ×
  • 3932.140.102
    3932.140.102
    3932.140.102

    3932.140.102

    Contact us
    Part No.
    Specification
    Surface
    Material
    Weight(g)
    3932.140.102
    140x60x115
    Shot Blasting
    SS430
    650.00
    3932.140.103
    140x61x117
    Shot Blasting
    SS430
    766.00





    Ltem A B C D E F G H I J
    3932.140.002 60 5 70 55 5 44 115 54 5 33
    3932.140.003 61 5 70 45 6 55 117 55 5 35
    ×

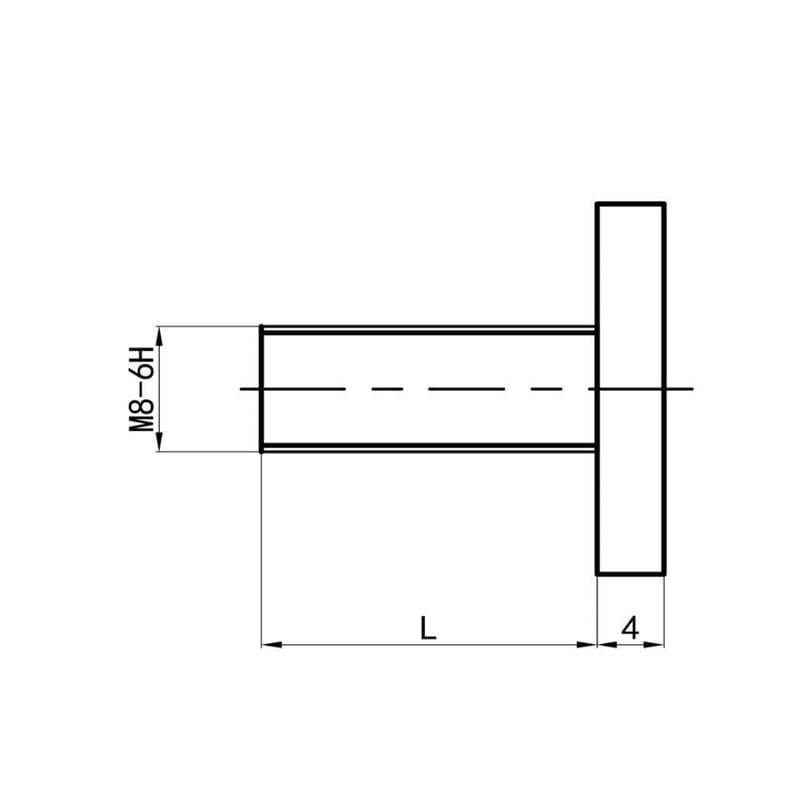

  • 2306.010.001
    2306.010.001
    2306.010.001

    2306.010.001

    Contact us
    Part No.
    Specification
    L
    Surface
    Material
    Weight(g)
    2306.010.001
    M8×20
    20
    Plain
    SS304
    12.70
    2306.010.002
    M8×25
    25
    Plain
    SS304
    15.00
    2306.010.003
    M8×30
    30
    Plain
    SS304
    16.50
    2306.010.004
    M8×35
    35
    Plain
    SS304
    18.00
    2306.010.006
    M10×20
    20
    Plain
    SS304
    18.00
    2306.010.007
    M10×25
    25
    Plain
    SS304
    20.00
    2306.010.008
    M10×30
    30
    Plain
    SS304
    22.50
    ×

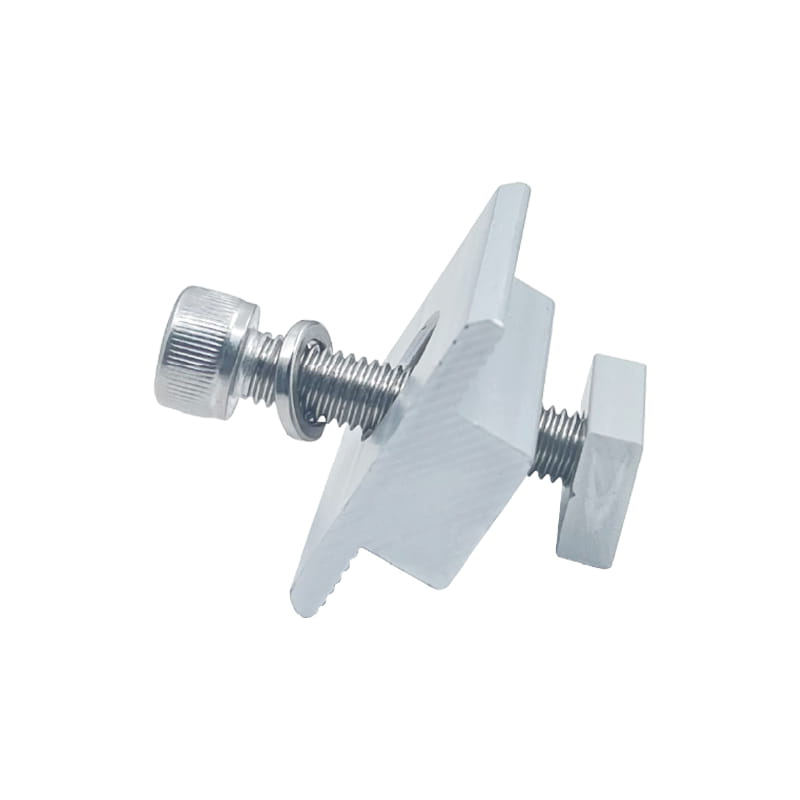

  • 3918.040.000
    3918.040.000
    3918.040.000

    3918.040.000

    Contact us
    Part No. Specification  Surface Material Weight(g)
    3918.040.000 36.5x12.7x40-Kit Anodized AL6005-T5 49.3





    Accessories Part No. Qty
    Washer DIN127-M8 1
    Screw DIN912-M8x50-SS304 1
    Sliding block 2194.010.004 1
    Mid clamp 3918.040.001 1
    ×

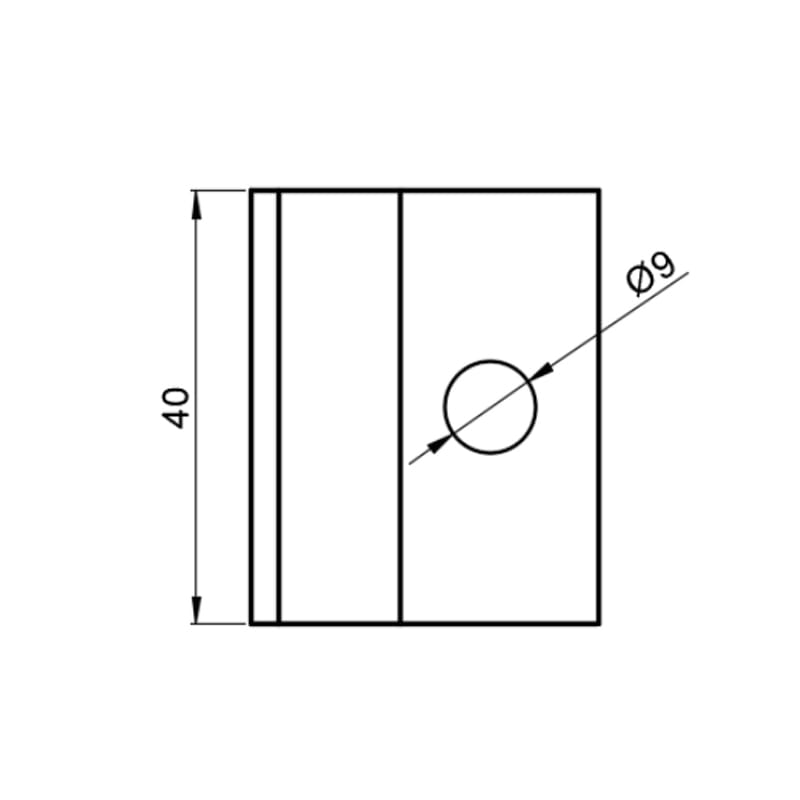

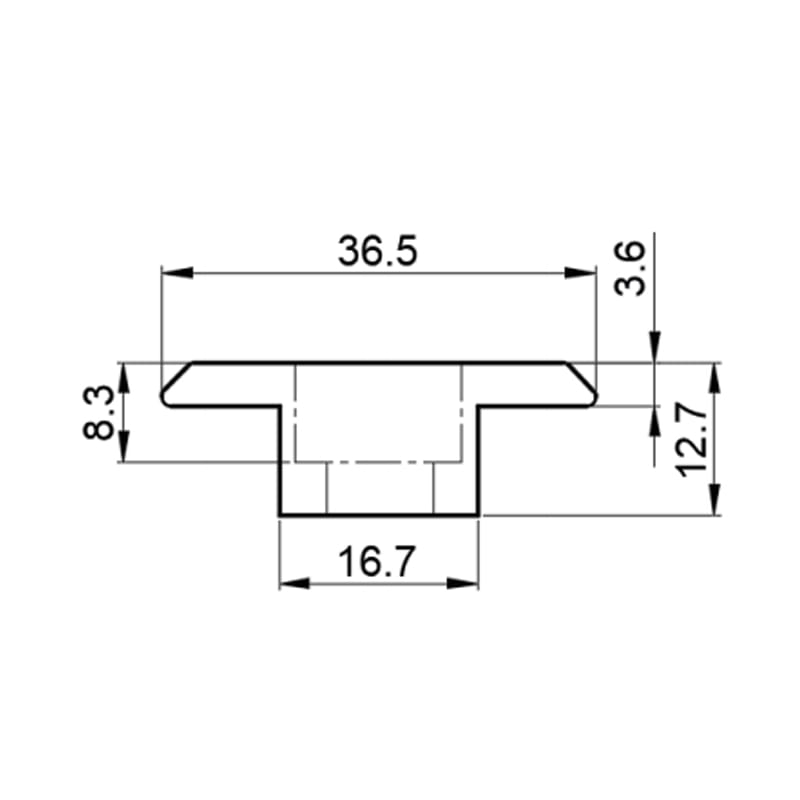

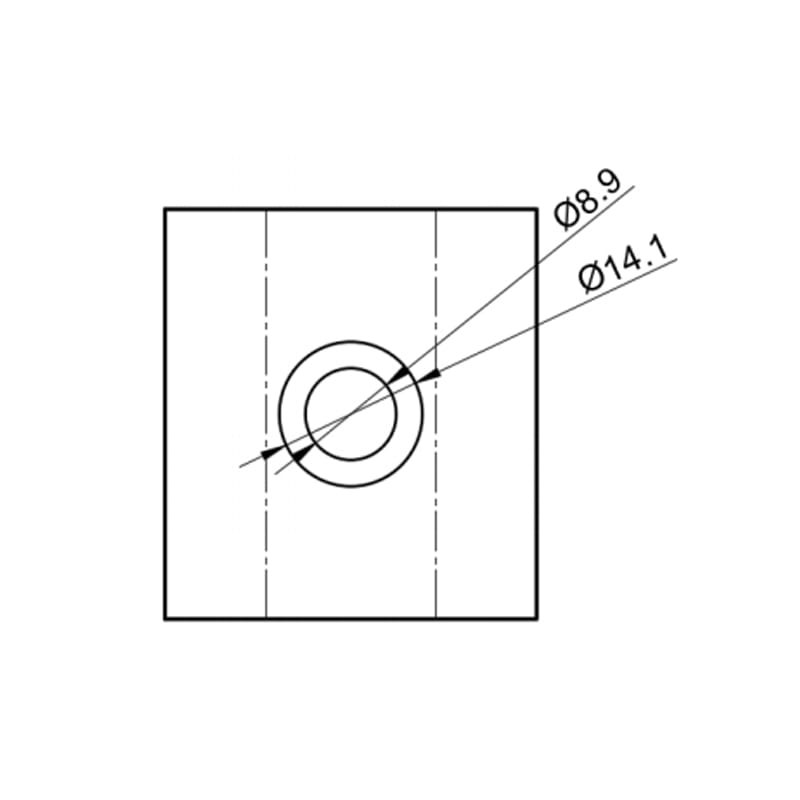

  • 3918.040.001
    3918.040.001
    3918.040.001

    3918.040.001

    Contact us
    Part No. Specification  Surface Material Weight(g)
    3918.040.001 36.5x12.7x40 Anodized AL6005-T5 27.00



    ×
  • 3919.040.000
    3919.040.000
    3919.040.000

    3919.040.000

    Contact us
    Part No. Specification  Surface Material Weight(g)
    3919.040.000 36.5x12.7x40-Kit Anodized AL6005-T5 46.3




    Accessories Part No. Qty
    Washer DIN127-M8 1
    Screw DIN912-M8x50-SS304 1
    Sliding block 2194.010.004 1
    End clamp 3918.040.001 1
    ×

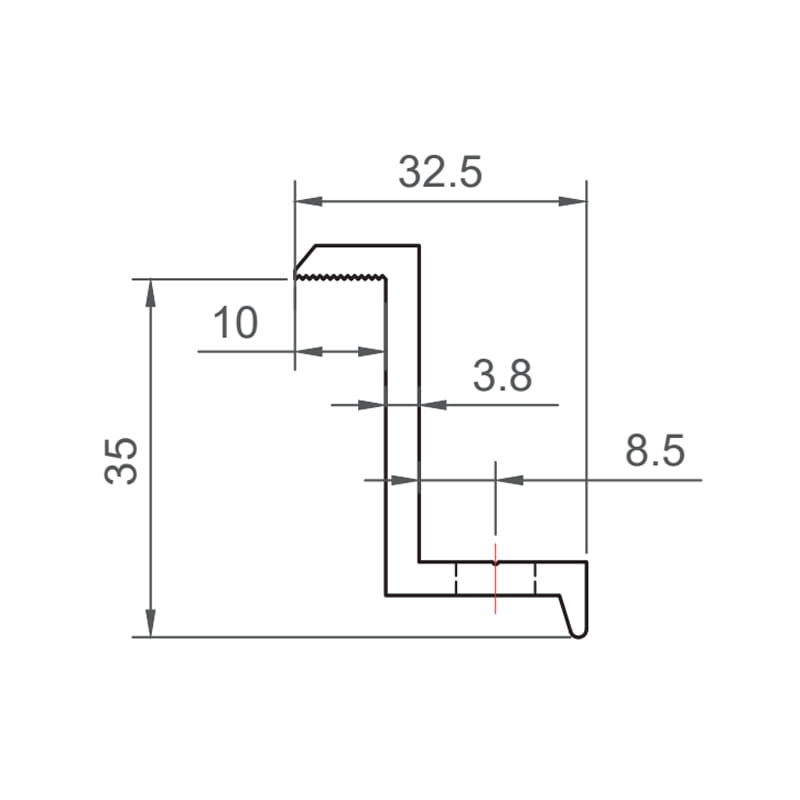

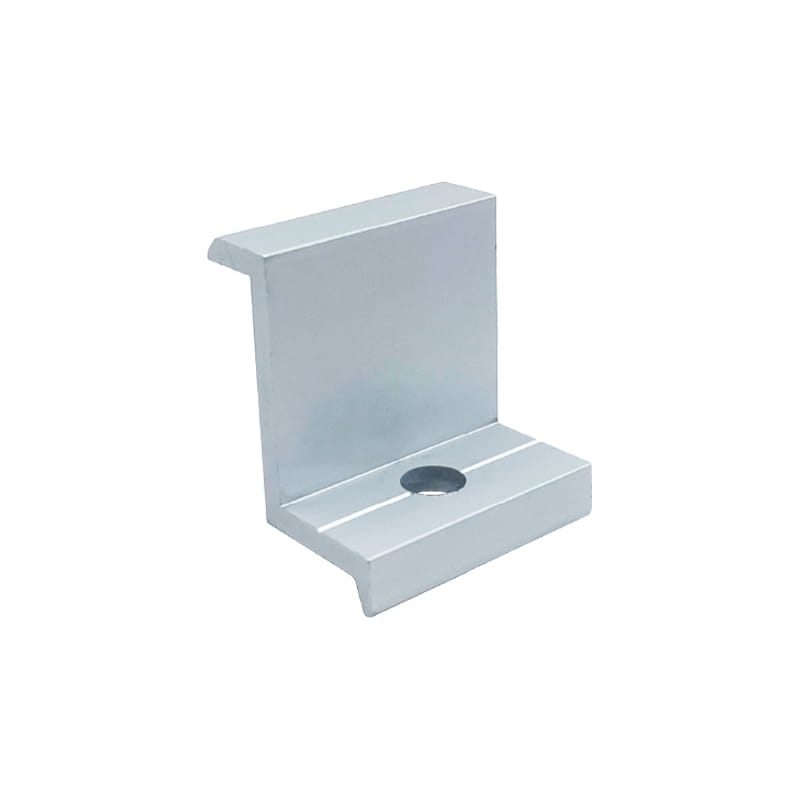

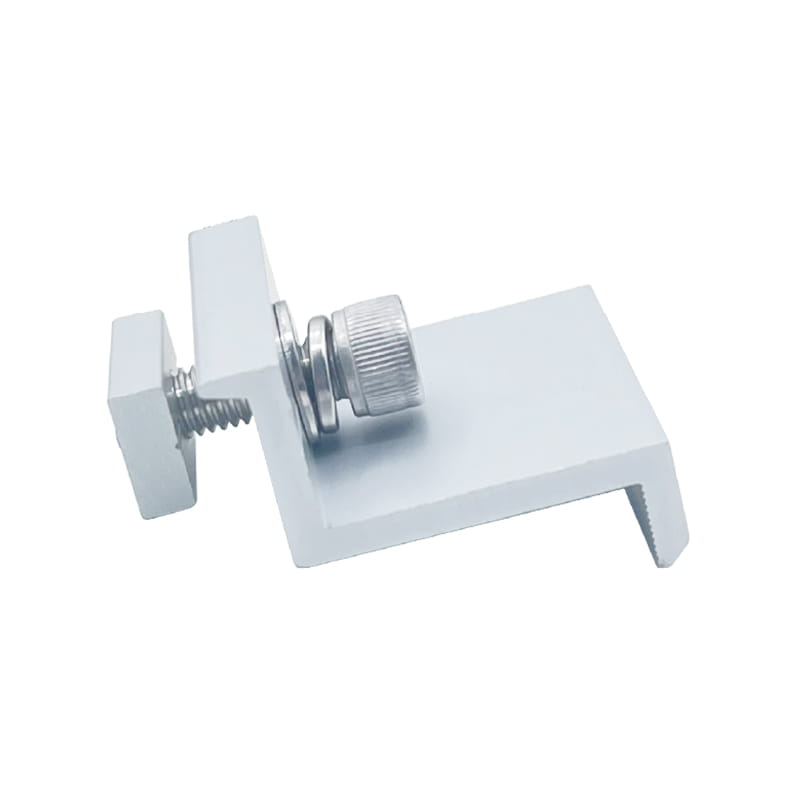

  • 3919.040.001
    3919.040.001
    3919.040.001

    3919.040.001

    Contact us
    Part No. Specification  Surface Material Weight(g)
    3919.040.001 39.6x32.5x40 Anodized AL6005-T5 27.00
    ×

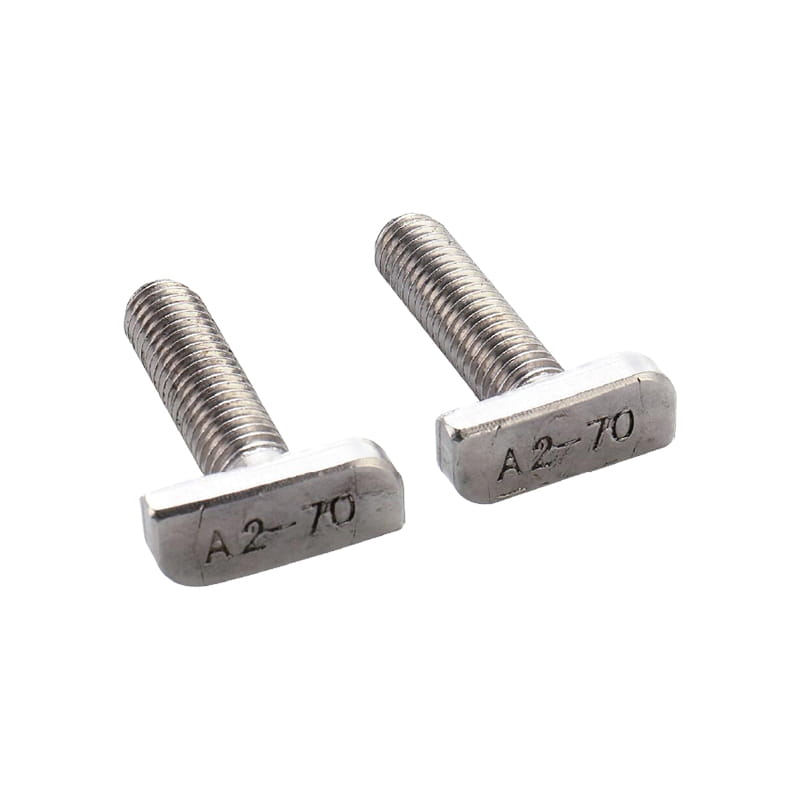

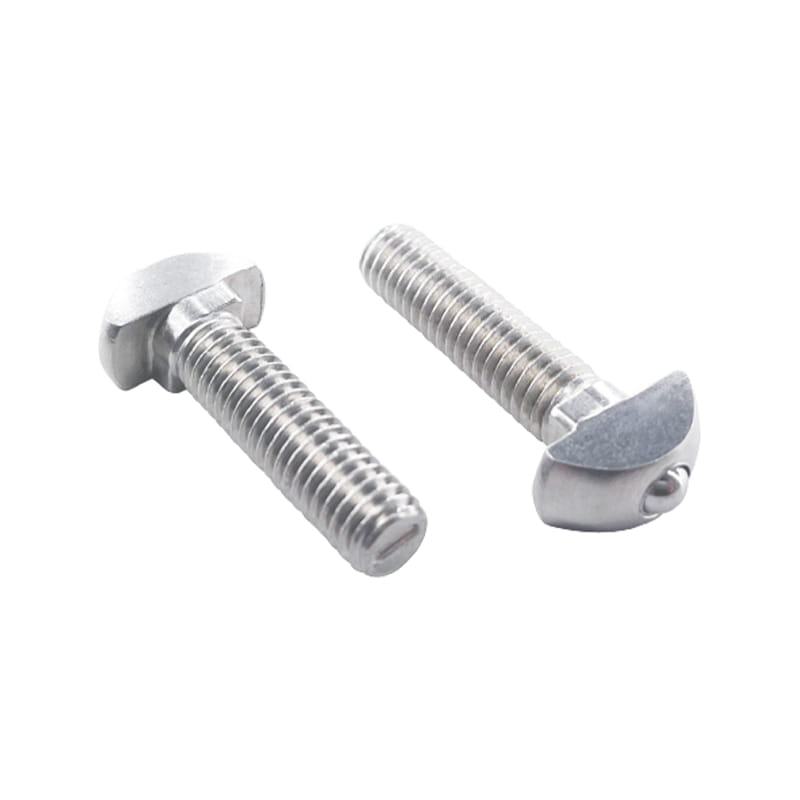

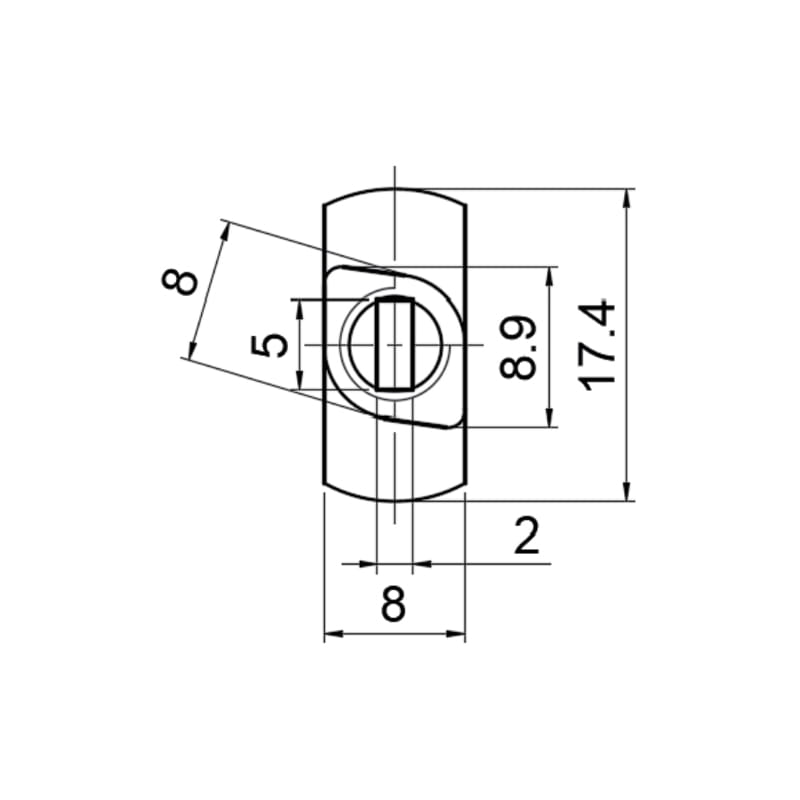

  • 2321.008.002
    2321.008.002
    2321.008.002

    2321.008.002

    Contact us
    Part No. Specification  Surface Material Weight(g)
    2321.008.002 M8x25 Plain SS304 13.50
    2321.008.003 M8x30 Plain SS304 15.00
    ×

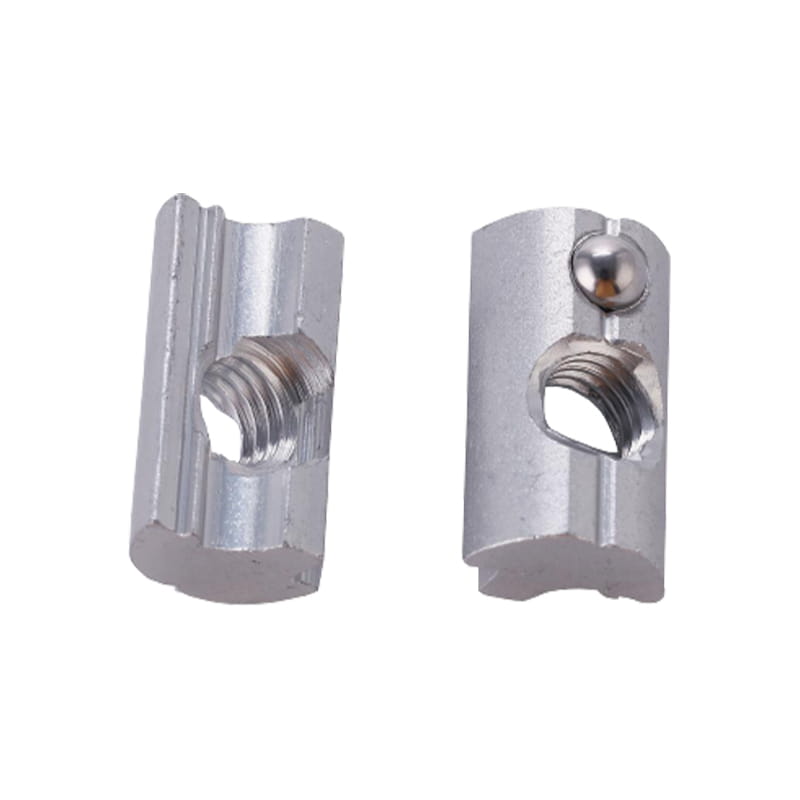

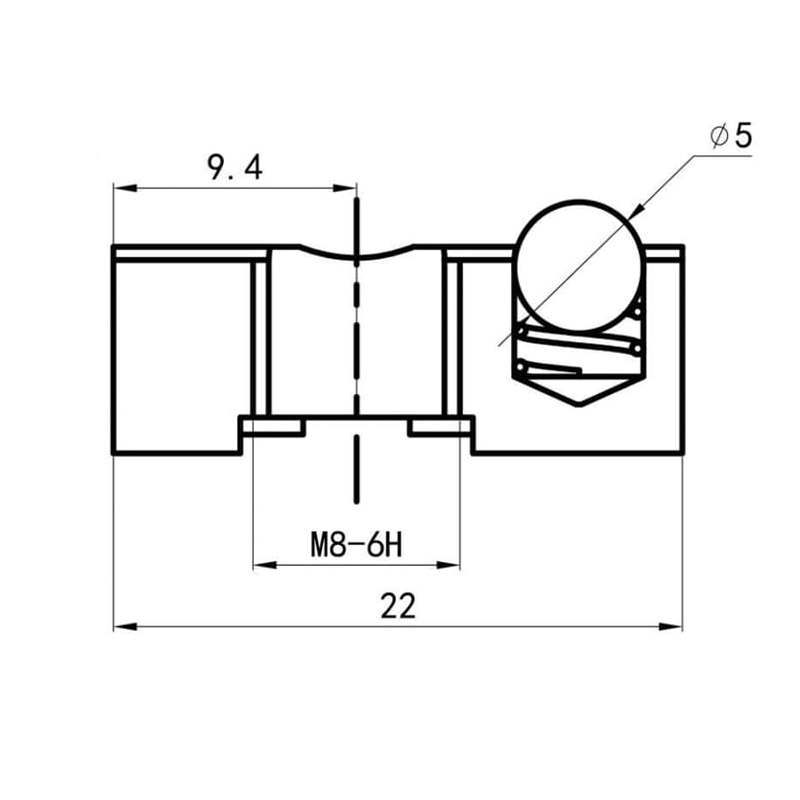

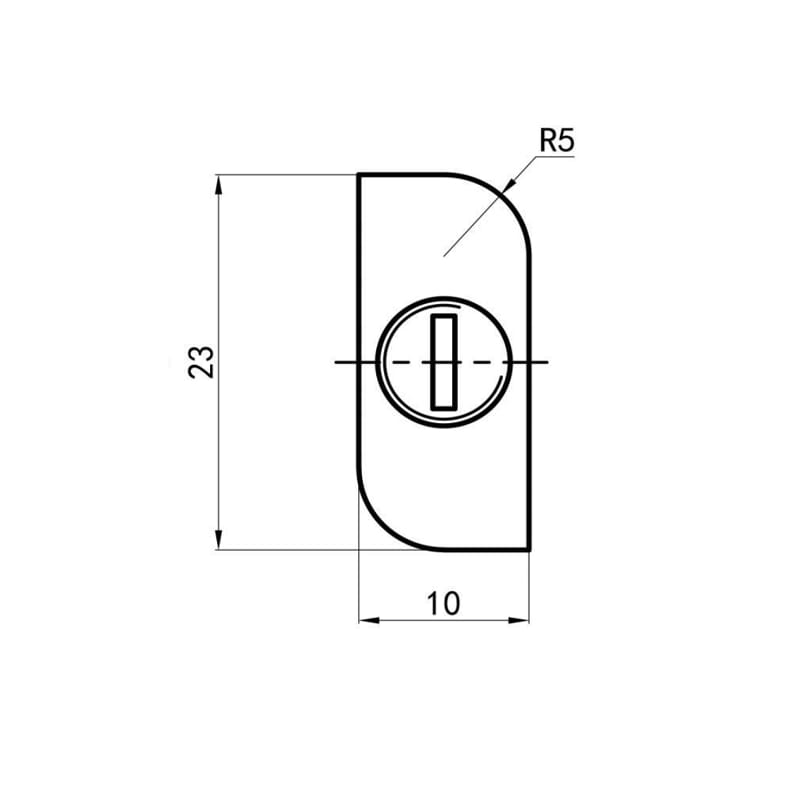

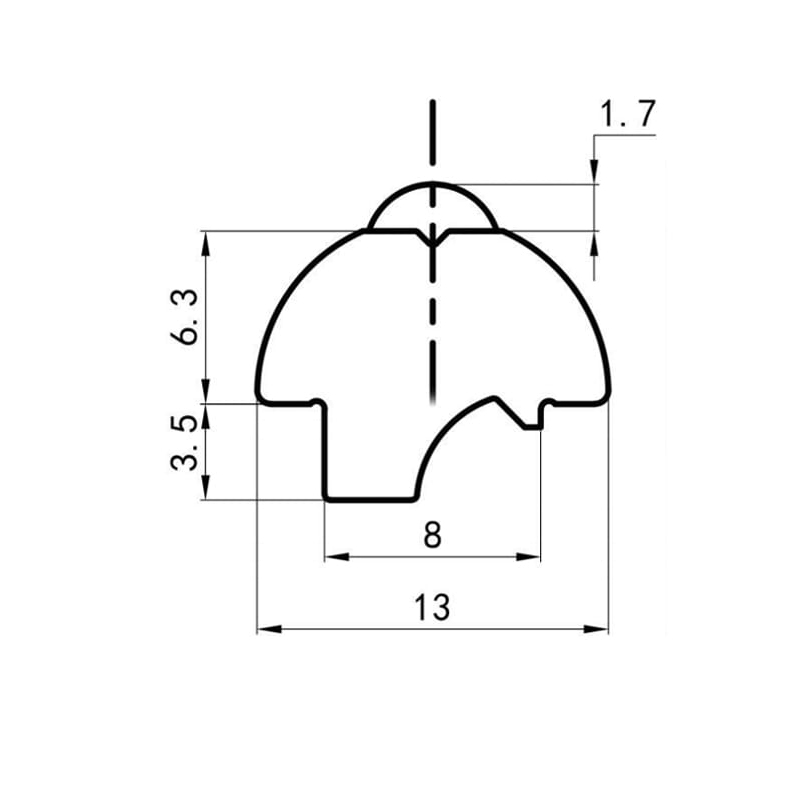

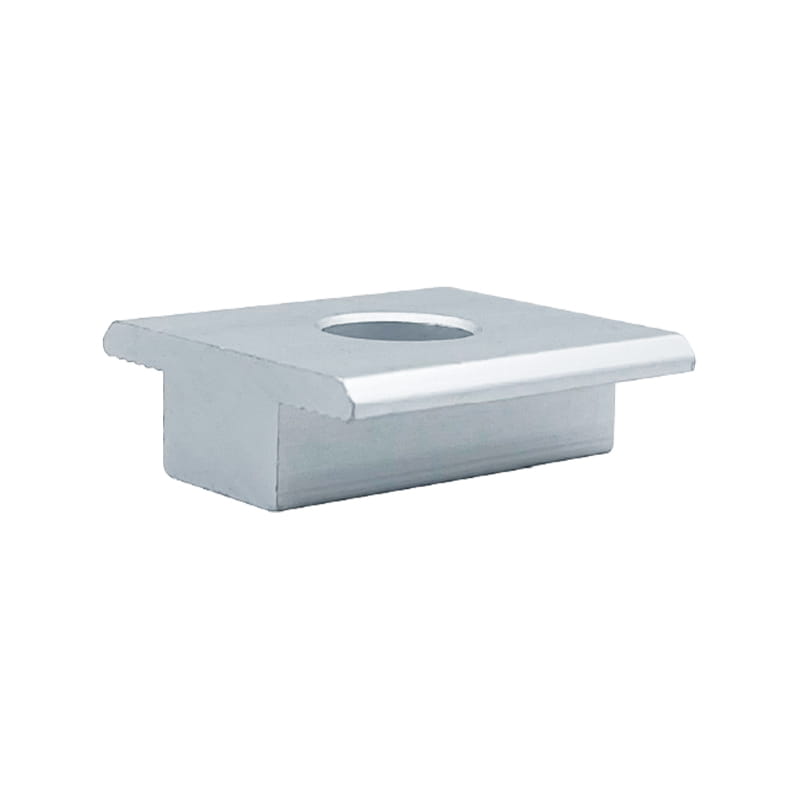

  • 2206.008.304
    2206.008.304
    2206.008.304

    2206.008.304

    Contact us
    Part No. Specification  Surface Material Weight(g)
    2206.008.304 13x9.8x22-M8 Plain SS304 10.00
    ×
  • 2206.008.004
    2206.008.004
    2206.008.004

    2206.008.004

    Contact us
    Part No. Specification  Surface Material Weight(g)
    2206.008.004 13x9.8x22-M8 Plain 6061-T5 10.00
    ×

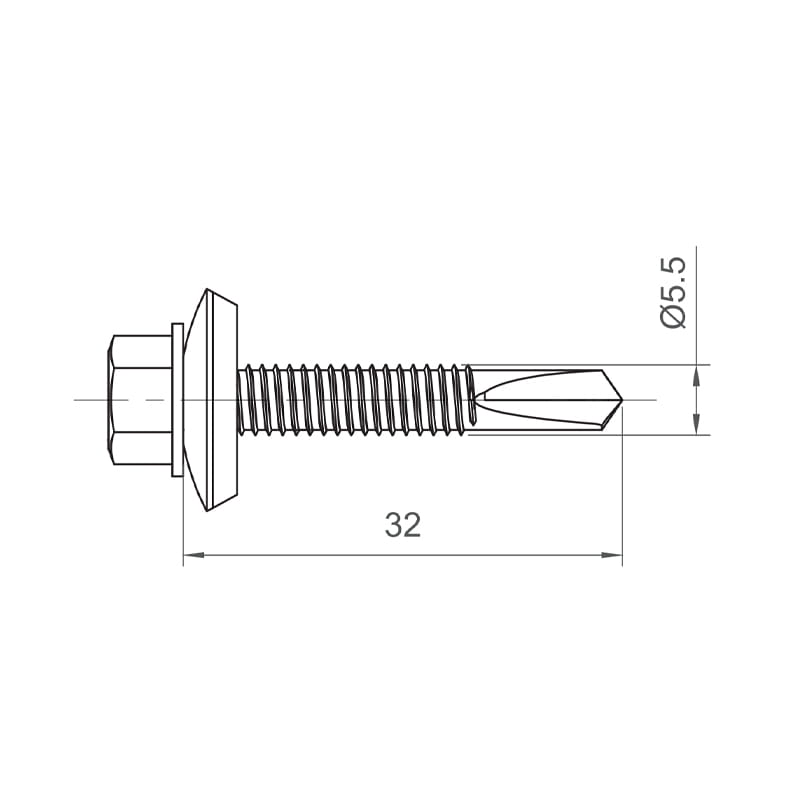

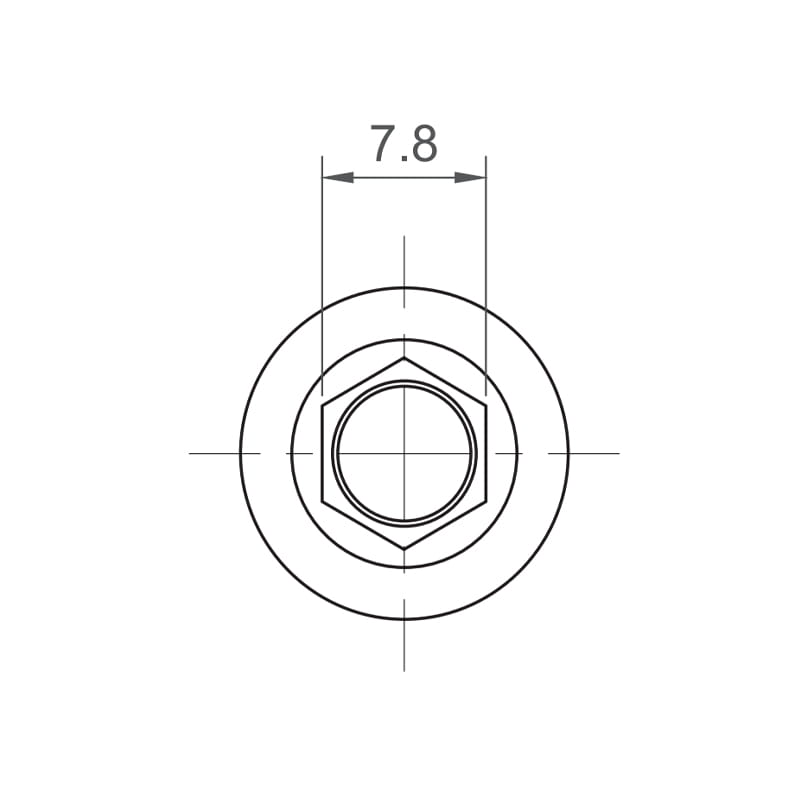

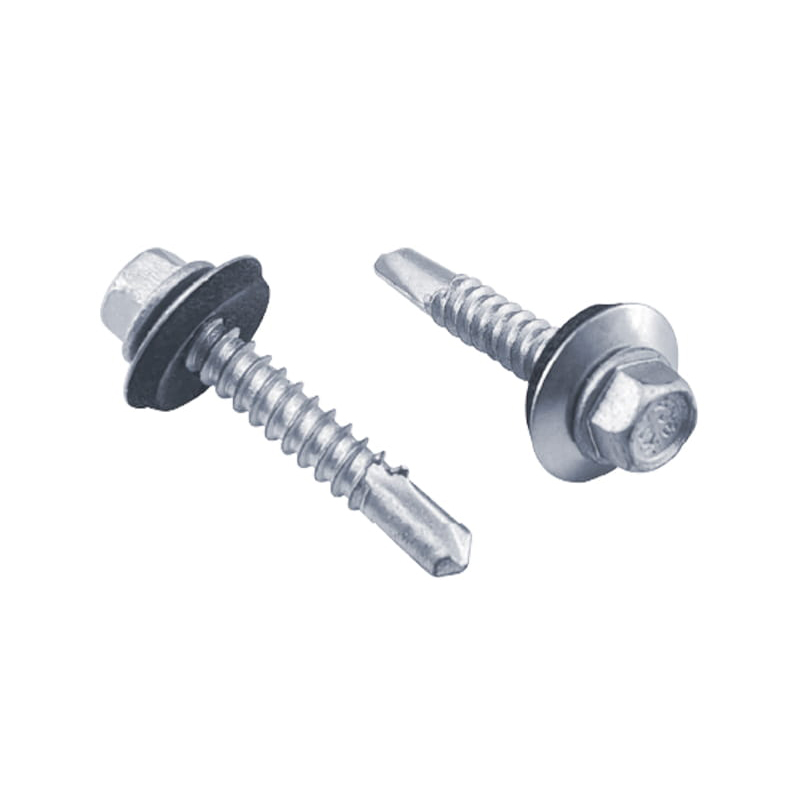

  • 2318.000.008
    2318.000.008
    2318.000.008

    2318.000.008

    Contact us
    Part No. Specification  Surface Material Weight(g)
    2318.000.008 5.5x32 Rupert  SS304 + Steel 435 6.40
    ×

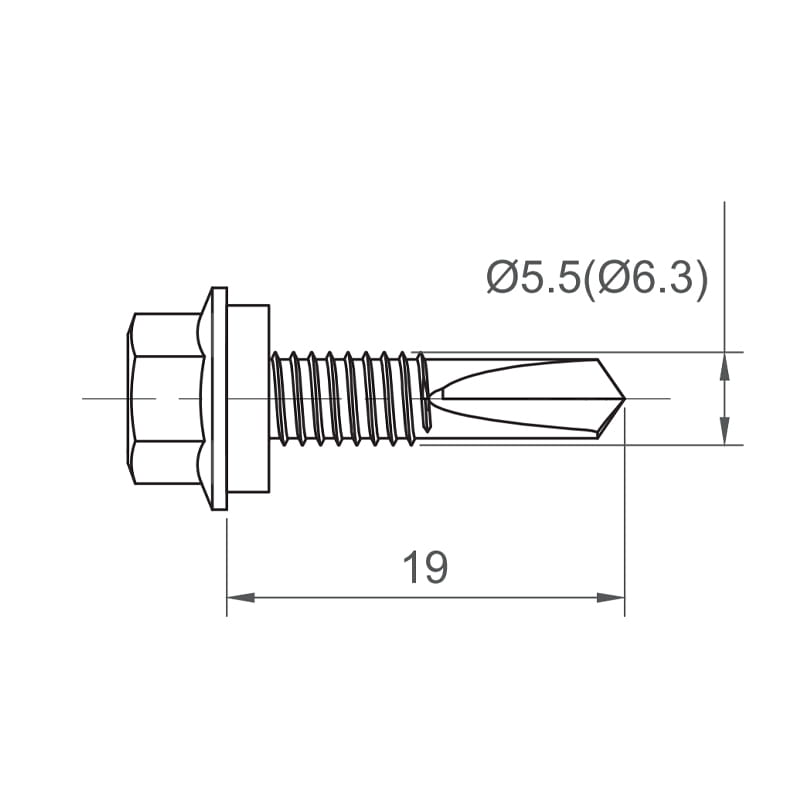

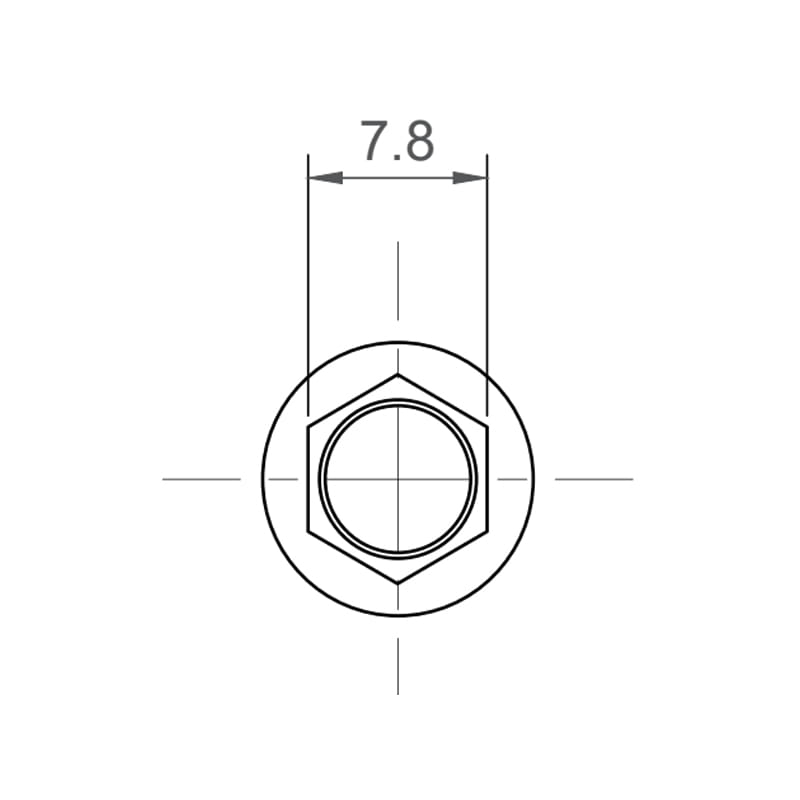

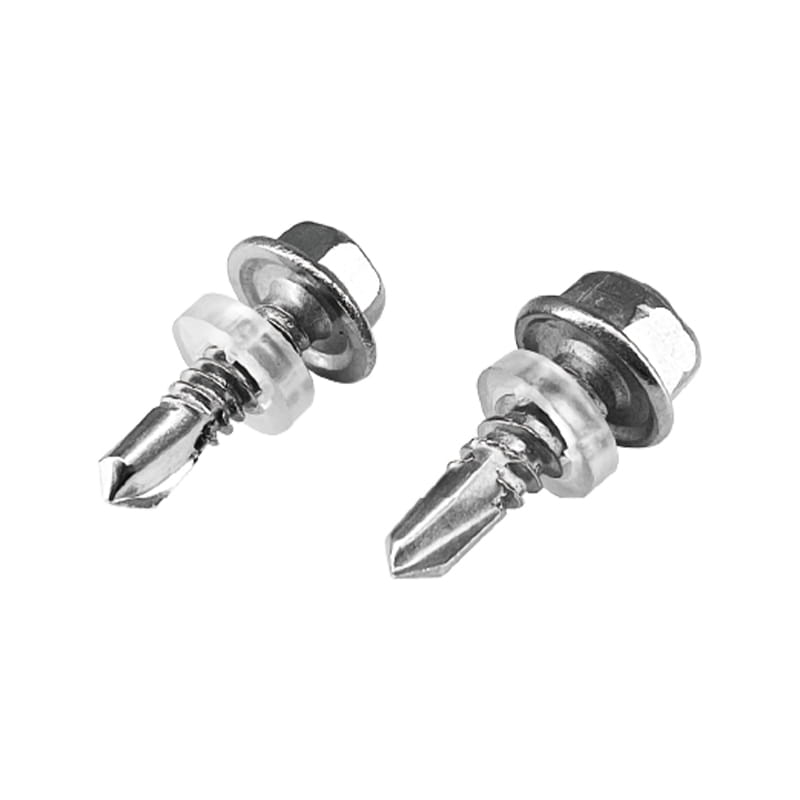

  • 2318.000.007
    2318.000.007
    2318.000.007

    2318.000.007

    Contact us
    Part No. Specification  Surface Material Weight(g)
    2318.000.007 5.5-24x19 Plain SS304 4.00
    2318.000.107 6.3x19 Plain SS410 5.40
    ×
Discover Our Comprehensive Range of Solar Mounting Components - The Building Blocks of Solar Energy Solutions:

At Ningbo Minde Technology, we are proud to offer a diverse and high-quality selection of Solar Mounting Components designed to support and optimize your solar energy projects. These essential components form the backbone of your solar panel installations, ensuring secure attachment, efficient energy capture, and long-term system reliability.

1. Solar Mounting Rails:
Our solar mounting rails are engineered for strength and durability, available in various lengths to accommodate different panel configurations. They provide the sturdy foundation upon which your solar panels are mounted.

2. Solar Panel Mounting Brackets and Clamps:
Our range of brackets and clamps allows for secure panel attachment to mounting rails. With adjustable features, they ensure a precise fit for various panel sizes, guaranteeing stability in diverse environmental conditions.

3. Roof Attachments and Ground Mounting Systems:
For both rooftop and ground-mounted installations, we offer a selection of attachments and systems designed to safely and securely fasten your solar panels. Roof attachments include standoffs, flashing, and hooks, while our ground mounting solutions include posts, crossbars, and connectors.

4. Foundation and Ground Mounting Systems:
Our foundation components, including piles, posts, and anchors, are engineered for ground-mounted solar arrays, ensuring stability and structural integrity.

5. Tilt and Angle Adjusters:
Fine-tune your solar panel orientation with our tilt and angle adjusters, optimizing sunlight exposure for energy production.

Experience the quality, reliability, and performance of our Solar Mounting Components, designed to meet your unique project requirements. Trust Ningbo Minde Technology to provide the building blocks for your solar energy solutions, ensuring your investment pays off for years to come.
About Minde
Ningbo Minde Technology Co., Ltd.
Ningbo Minde Technology Co., Ltd.
The company was established in 2004 and has passed ISO9001, SGS, and RoHS certification. To create an ideal green enterprise, protect limited resources, and reduce waste and pollution, our products have passed SGS environmental testing and comply with the EU RoHS directive. As China Solar Mounting Components Manufacturers and Solar Mounting Components Factory, production area 12,000㎡, Two office areas 350㎡, Have 65 Experienced team-member. The major production process includes tooling designing & making, die casting, forging, stamping, precision machining, drilling, surface plating, Intelligent infrared detecting and automation packing, etc. Mostly exported to more than 35 countries and regions, major markets are the USA, Europe, the Middle East, and Southeast Asia.
Certificate Of Honor
  • SGS -RoHs testing 02 SHAEC22002232201
  • Environmental System
  • Health System
  • Quality System
  • Test Report
  • Test Report
News
Message Feedback
Solar Mounting Components Industry knowledge
Installation Tips for Solar Mounting Components
In solar power generation systems, the correct installation of solar mounting components is a key factor to ensure efficient operation and stability of the system.
Site Assessment and Preparation:
A detailed site assessment must be performed before installation can begin. This includes considering factors such as soil conditions, topography, and shading from nearby buildings and trees. Proper evaluation of site characteristics will help select an appropriate installation solution and ensure that the system performs well under a variety of environmental conditions.
Basic design and construction:
The stability of solar installation components is directly dependent on a solid infrastructure. The design and construction of foundations should follow engineering standards and take into account the geology and soil conditions of the site. Typically, concrete foundations or anchor bolts are used to ensure the firmness and stability of the supporting structure.
Support structure assembly:
A critical step in the installation process is the assembly of the support structure. This involves fitting the pillars, beams and connections together correctly to ensure that the entire structure has sufficient strength and stability. The selection and installation of fasteners is also critical to prevent loosening or corrosion due to long-term exposure to the natural elements.
Cable management:
Cable management is an easily overlooked but vital aspect of the installation process. It is important to ensure that cables are properly protected and organized to prevent damage and electrical failure. Typically, specialist cable troughs and clamps are used to ensure that cables are laid out on the supporting structure in an orderly manner.
Installation angle adjustment:
The angle at which solar panels are installed is critical to energy capture. During installation, the tilt angle of the support structure must be accurately adjusted to maximize the absorption of solar radiation. This usually involves the use of specialist tools and instruments to ensure the accuracy of the angle settings.
Safety measures:
Safety standards and procedures must be strictly followed during installation. Installers should wear appropriate personal protective equipment and ensure the work area is safe and free of hazards. In addition, for large systems, working at heights may be required, so additional safety measures must be taken, such as the use of safety belts and safety nets.

Functions of Solar Mounting Components
Solar installation components have multiple functions and roles in photovoltaic power generation systems. Their main goal is to ensure that solar panels can capture solar energy efficiently and stably and convert it into electrical energy.
Support and secure solar panels:
The primary function of Solar Mounting Components is to provide a sturdy support structure that supports and secures solar panels. This ensures that the panels can operate stably in a variety of environmental conditions and resist the effects of natural elements such as storms, rain, and snow.
Optimize lighting angle and direction:
The mounting components are designed taking into account the optimal lighting angle and direction of the solar panels. Through precise design and adjustment, the installation components help the solar panels to always be in the best lighting position, maximizing the absorption of solar radiation, thereby improving power generation efficiency.
Adapt to different terrain and site conditions:
Solar Mounting Components need to be able to adapt to different terrain and site conditions. This includes various installation locations such as flat ground, mountainous areas, and rooftops. Its design must be flexible and diverse to meet the requirements of different environments and ensure the wide applicability of the system.
Anti-corrosion and weather resistance:
Since solar panel systems are usually exposed to outdoor environments, the materials of Solar Mounting Components must have good anti-corrosion and weather resistance. Common material choices include aluminum alloys, stainless steel, etc. to ensure components are protected from corrosion and damage over time.
Simplify the installation process:
The mounting components are designed to simplify the entire installation process and increase installation efficiency. The modular design and ease of installation allow installers to install components quickly and accurately, reducing installation costs and time.
Cable management and security:
Solar Mounting Components needs to provide an effective cable management system to ensure that cables are safely and orderly arranged on the support structure to prevent damage and electrical failure. In addition, the installation components themselves must meet safety standards to ensure safety during installation and operation.
