Profile Plate Connectors Manufacturers

Product Categories

  • 3201.008.001
    3201.008.001
    3201.008.001

    3201.008.001

    Contact us

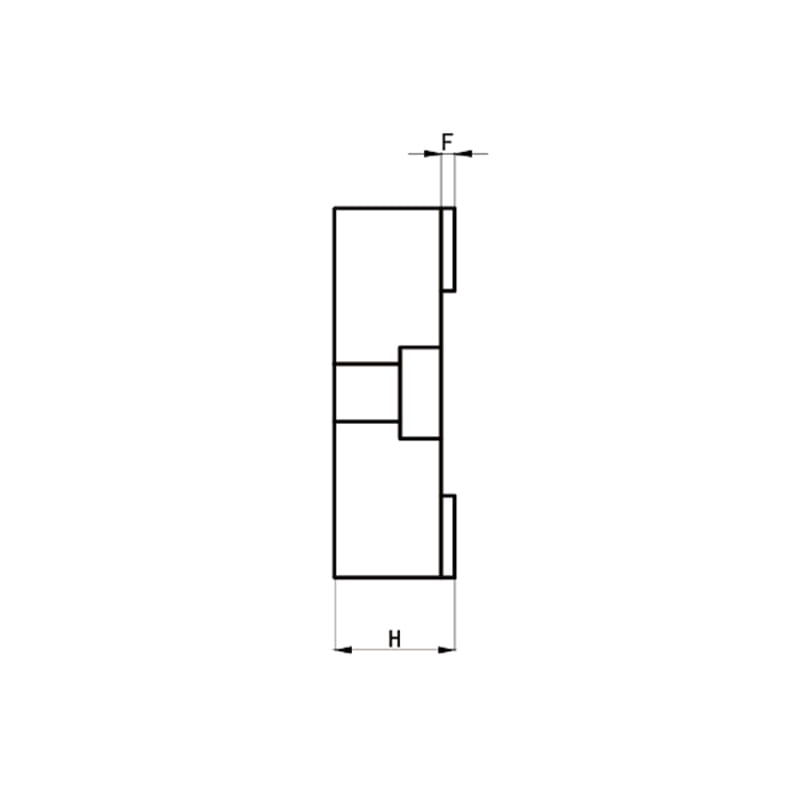

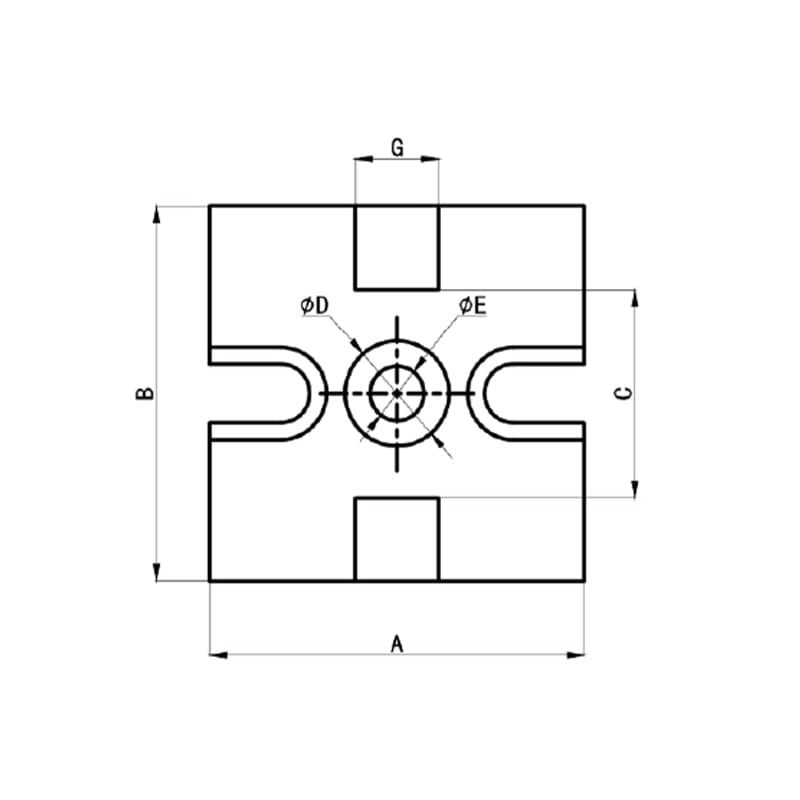

    Part No.
    A
    B
    C
    D
    E
    F
    G
    H
    SurfaceG
    Material
    Weight(g)
    3201.008.001
    30
    30
    15
    14
    9.3
    2
    8
    13
    Plain
    Alu alloy
    23.00
    3201.010.002
    40
    40
    24
    20
    12.5
    2
    10
    13
    Plain
    Alu alloy
    42.30
    3201.010.003
    45
    45
    25
    20
    12.5
    2
    10
    14.5
    Plain
    Alu alloy
    53.40
    ×
Ningbo Minde Technology produces Profile Plate Connectors. These connectors are commonly used in conjunction with T-slot aluminum profiles to create versatile and modular structures in various industries, including automation, manufacturing, and construction.

Profile Plate Connectors are essential components for assembling and joining T-slot aluminum profiles efficiently and securely. They often come in various designs, such as angle brackets, joining plates, gussets, and corner connectors, each serving specific purposes in connecting and reinforcing profiles.

These connectors offer several benefits:
Versatility: Profile Plate Connectors enable users to create diverse structures like frames, enclosures, workstations, and conveyor systems. They provide flexibility in design and assembly.
Strength: Designed to distribute loads evenly and enhance the overall structural integrity, these connectors contribute to the stability and durability of the assembled profiles.
Simplicity: They simplify the assembly process by eliminating the need for complex machining, welding, or drilling. This streamlines construction and reduces production time.
Customization: Profile Plate Connectors can often be customized to accommodate specific profile sizes, hole placements, or other project-specific requirements.
Compatibility: These connectors are engineered to seamlessly fit into the T-slot channels of aluminum profiles, ensuring a secure and precise connection.
Materials: Depending on your project's demands, Profile Plate Connectors can be manufactured from various materials, including aluminum, steel, or stainless steel.

In summary, Profile Plate Connectors play a pivotal role in your product catalog, offering the versatility and strength needed to construct modular and adaptable structures with T-slot aluminum profiles. They are essential components for creating efficient and customized solutions in the field of automation and beyond.
About Minde
Ningbo Minde Technology Co., Ltd.
Ningbo Minde Technology Co., Ltd.
The company was established in 2004 and has passed ISO9001, SGS, and RoHS certification. To create an ideal green enterprise, protect limited resources, and reduce waste and pollution, our products have passed SGS environmental testing and comply with the EU RoHS directive. As China Profile Plate Connectors Manufacturers and Profile Plate Connectors Suppliers, production area 12,000㎡, Two office areas 350㎡, Have 65 Experienced team-member. The major production process includes tooling designing & making, die casting, forging, stamping, precision machining, drilling, surface plating, Intelligent infrared detecting and automation packing, etc. Mostly exported to more than 35 countries and regions, major markets are the USA, Europe, the Middle East, and Southeast Asia.
Certificate Of Honor
  • SGS -RoHs testing 02 SHAEC22002232201
  • Environmental System
  • Health System
  • Quality System
  • Test Report
  • Test Report
News
Message Feedback
Profile Plate Connectors Industry knowledge
1.Enhancing Structural Integrity
The robustness imparted by aluminum alloy not only ensures stability but also safeguards against the relentless forces that structures encounter in their lifecycle. Aluminum alloy's remarkable strength-to-weight ratio plays a pivotal role in enhancing the structural integrity of Profile Plate Connectors. Despite its lightweight nature, the material exhibits exceptional tensile strength, allowing connectors to withstand considerable loads without compromising on durability. This characteristic is particularly advantageous in projects where minimizing weight is critical, such as in aerospace or portable infrastructure applications. The use of aluminum alloy in Profile Plate Connectors contributes significantly to the prevention of corrosion-related issues. Corrosion is a formidable adversary that erodes the structural components over time, jeopardizing the safety and longevity of the entire structure. Aluminum alloy's innate resistance to corrosion ensures that these connectors remain steadfast even in challenging environments.

2.The Role of Profile Plate Connectors in Load Transfer
a)The Precision of Load Distribution: Profile plate connectors stand as critical components in the intricate dance of load distribution within a structure. They operate as linchpins, facilitating the seamless transfer of forces between various structural elements. This involves the meticulous management of compressive, tensile, and shear forces, ensuring that each component within the system bears its designated load without compromising overall stability.
b)Adaptable Load Transfer Mechanisms: One of the distinguishing features of profile plate connectors is their adaptability in managing different types of loads. Whether it be the horizontal forces experienced by beams or the vertical forces carried by columns, these connectors play a pivotal role in directing and balancing the loads. Their ability to accommodate a diverse range of forces makes them invaluable in engineering structures where varying load scenarios are prevalent.
c)Enhancing Structural Resilience:
Profile plate connectors go beyond mere load transfer; they contribute significantly to enhancing the overall resilience of a structure. By efficiently managing forces, they prevent localized stress concentrations and reduce the risk of structural failures. This is particularly crucial in earthquake-prone areas, where the ability to distribute seismic forces evenly throughout the structure can be a decisive factor in preventing catastrophic outcomes.

3.Advantages Over Traditional Connection Methods
a)Streamlined Installation Processes: Profile plate connectors bring a breath of fresh air to the construction process by offering streamlined installation procedures. Unlike traditional methods like welding or bolting, which often require extensive labor and time, these connectors can be installed efficiently, contributing to reduced project timelines and associated costs.
b)Improved Structural Performance: Beyond the realm of cost, profile plate connectors offer marked improvements in structural performance. Their precision-engineered design ensures a more uniform distribution of forces, reducing stress concentrations and enhancing the overall stability of the structure. This results in structures that not only meet safety standards but also exhibit superior performance in terms of load-bearing capacity and resistance to environmental factors.
c)Adaptability to Various Construction Materials: Profile plate connectors showcase adaptability not only in load transfer but also in material compatibility. They can effectively connect diverse construction materials, including steel, concrete, and timber. This versatility broadens their applicability, allowing engineers and architects the freedom to choose materials based on specific project requirements without compromising the efficacy of the overall structural system.
