Profile T Bolts / Hammer Head Bolts Wholesale
Home / Products / Profile Fastening Accessories / Profile T Nuts & T Bolts / T Bolts / Hammer Head Bolts

Profile T Bolts / Hammer Head Bolts Suppliers

Product Categories

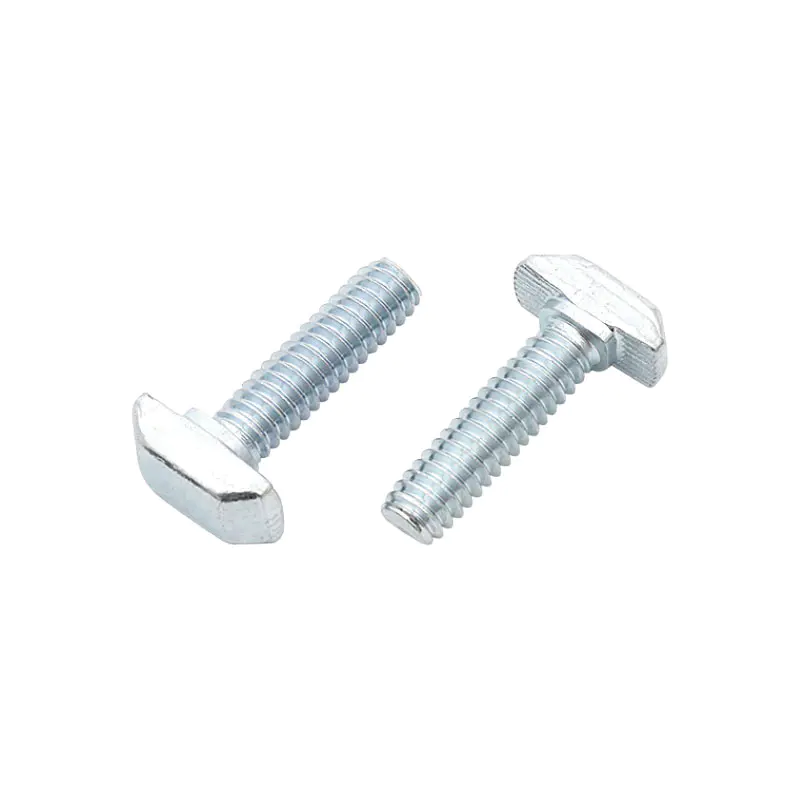

  • 2302.008.001
    2302.008.001
    2302.008.001

    2302.008.001

    2302.008.001 2302.008.001
    Contact us

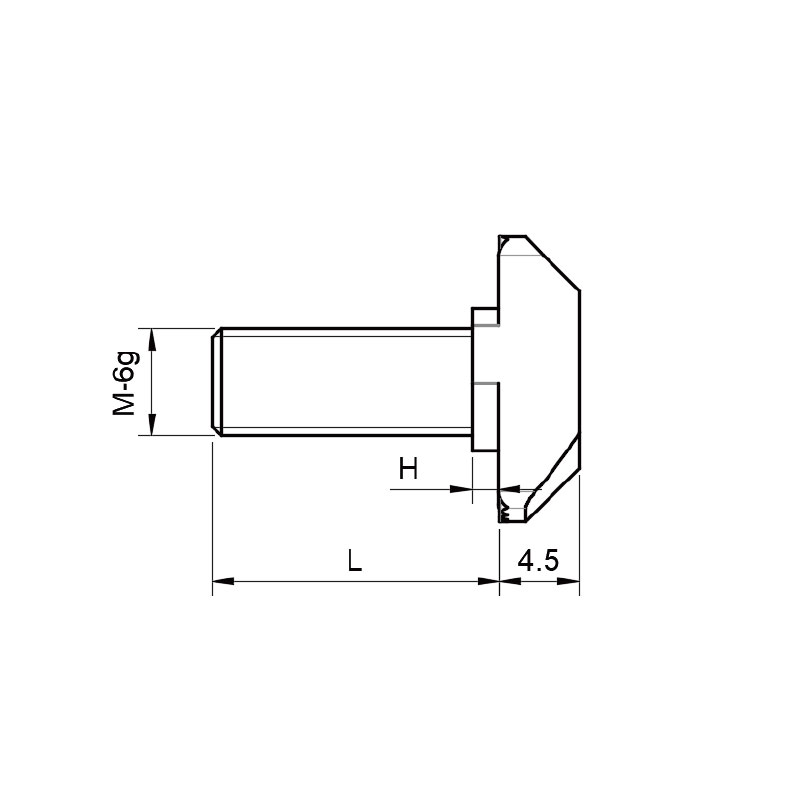

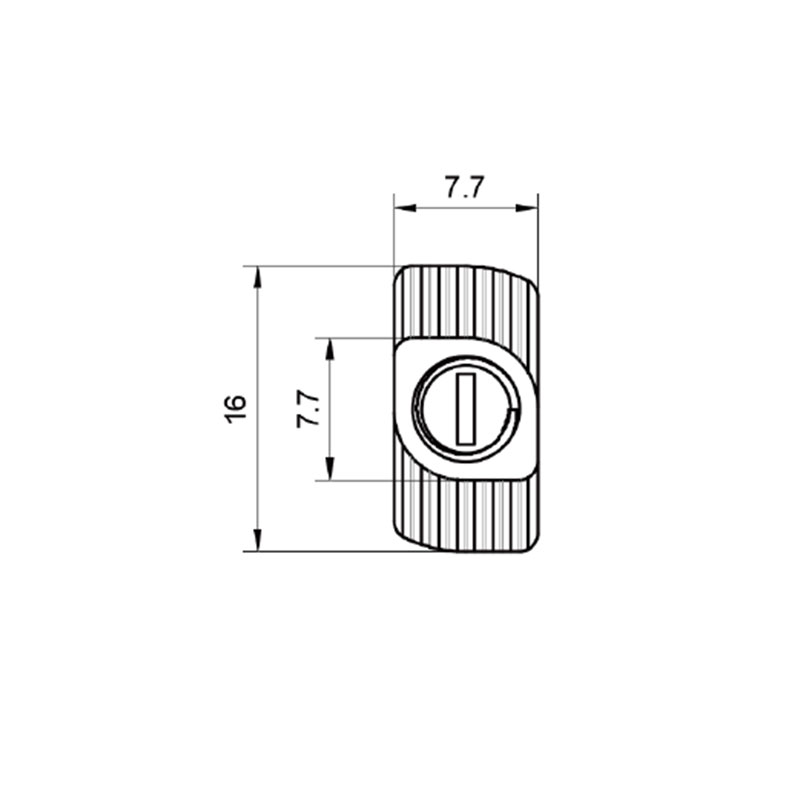

    Part No. Specification L H Surface Material Weight(g)
    2302.008.001 M6x16 16 1.5 Zinc plated Carbon steel8.8 7.00
    2302.008.002 M6x20 20 1.5 Zinc plated Carbon steel8.8 8.50
    2302.008.003 M6x25 25 1.5 Zinc plated Carbon steel8.8 10.00
    2301.008.001 M8x20 20 1.5 Zinc plated Carbon steel8.8 9.50
    2301.008.002 M8x25 25 1.5 Zinc plated Carbon steel8.8 11.50
    2301.008.003 M8x30 30 1.5 Zinc plated Carbon steel8.8 13.00
    2301.008.301 M8x20 20 3 Zinc plated Carbon steel8.8 10.00
    2301.008.302 M8x25 25 3 Zinc plated Carbon steel8.8 12.00
    2301.008.303 M8x30 30 3 Zinc plated Carbon steel8.8 13.50
    ×

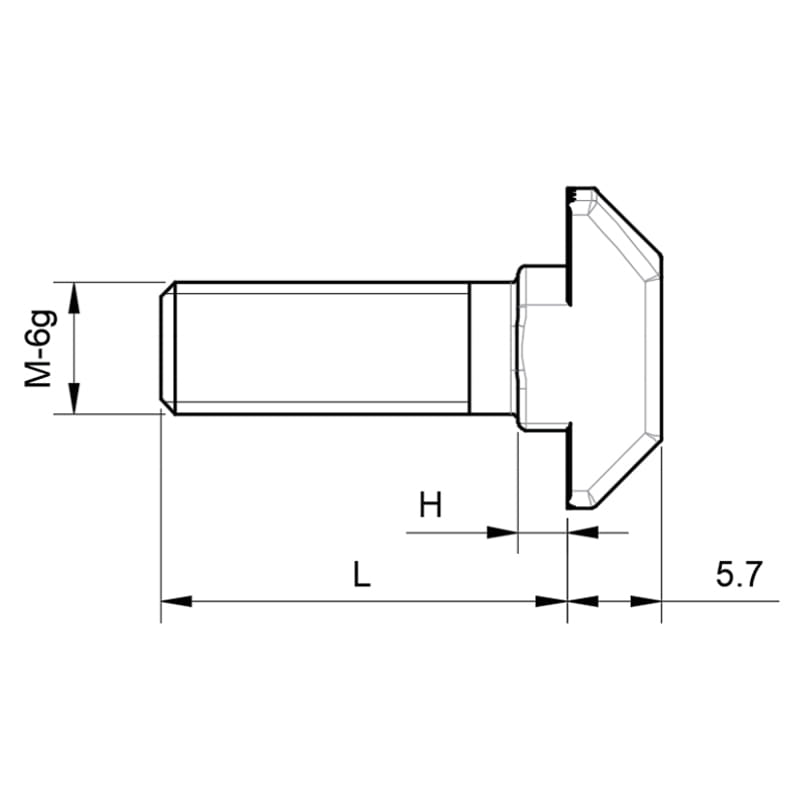

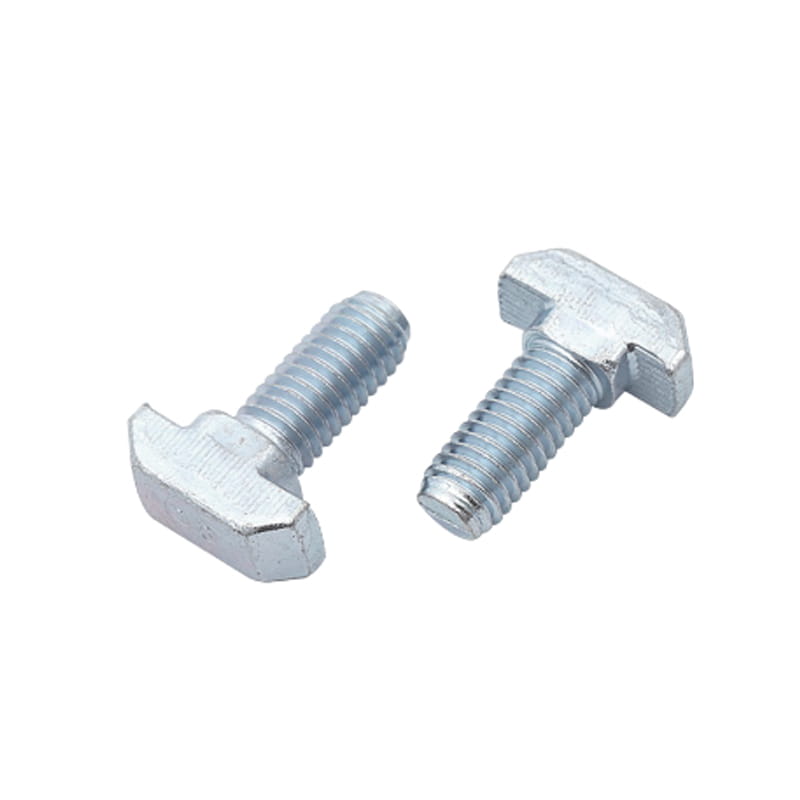

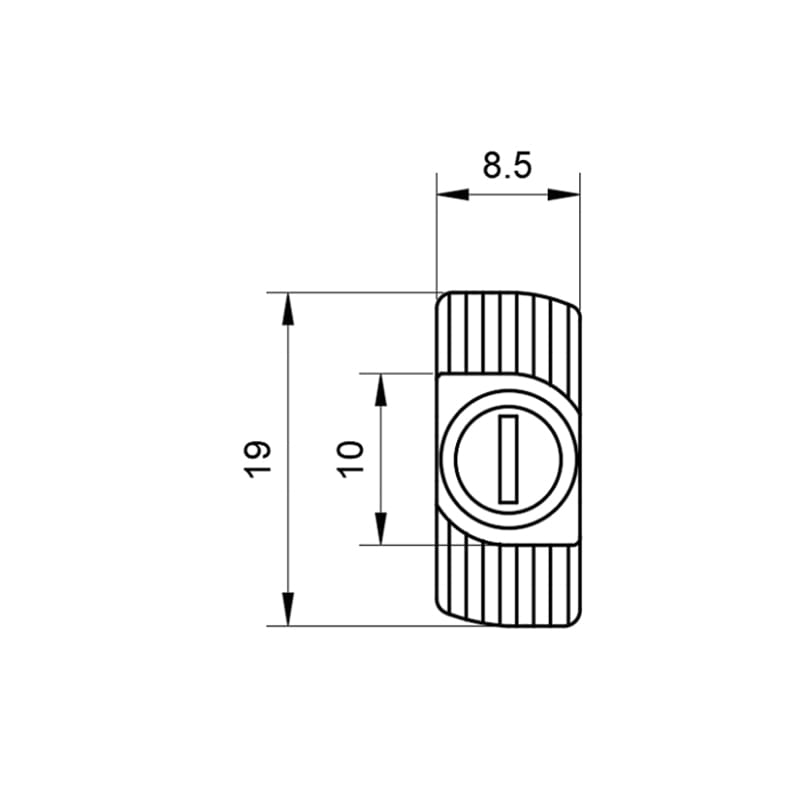

  • 2303.010.001
    2303.010.001
    2303.010.001

    2303.010.001

    2303.010.001 2303.010.001
    Contact us
    Part No.
    Thread
    L
    H
    Surface
    Material
    Weight(g)
    2303.010.001
    M8x20
    20
    3
    Zinc plated
    Carbon steel8.8
    13.00
    2303.010.002
    M8x25
    25
    3
    Zinc plated
    Carbon stee18.8
    14.50
    2303.010.003
    M8x30
    30
    3
    Zinc plated
    Carbon stee18.8
    16.00
    2303.010.004
    M8x40
    40
    3
    Zinc plated
    Carbon stee18.8
    19.00
    2303.010.005
    M8x60
    60
    3
    Zinc plated
    Carbon stee18.8
    25.00
    ×

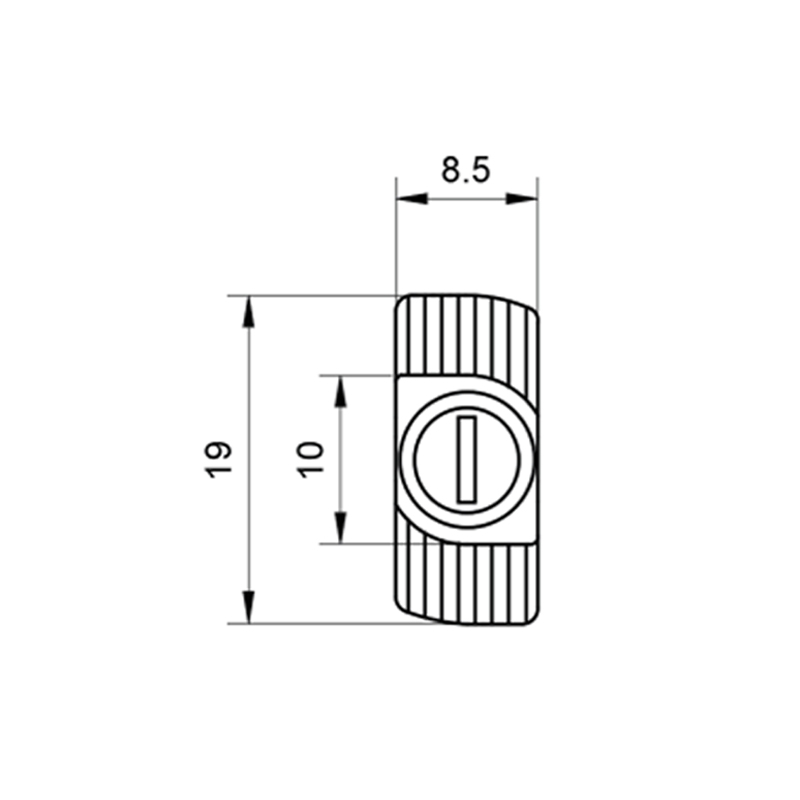

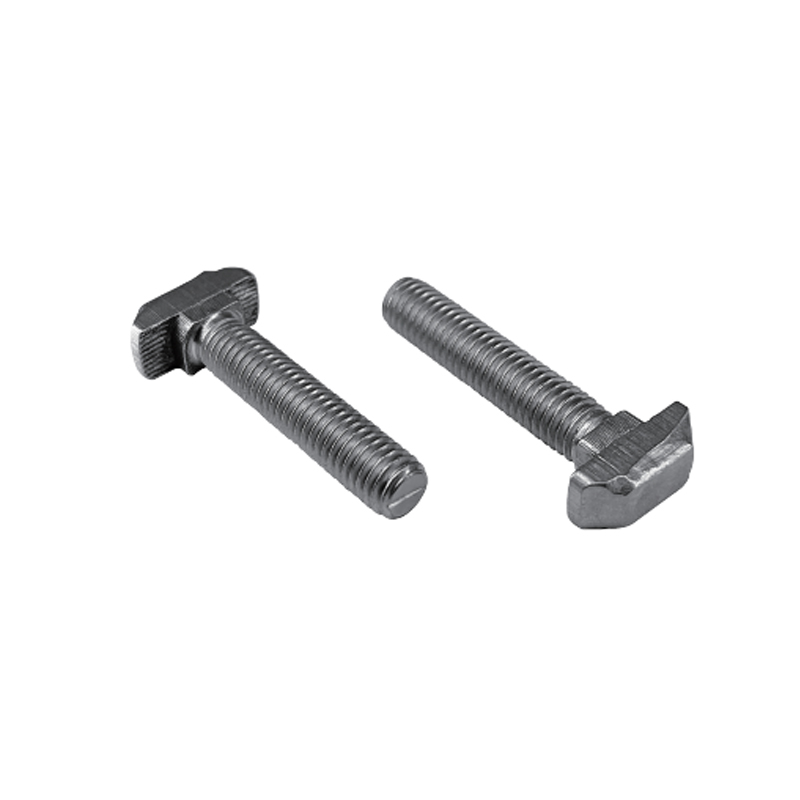

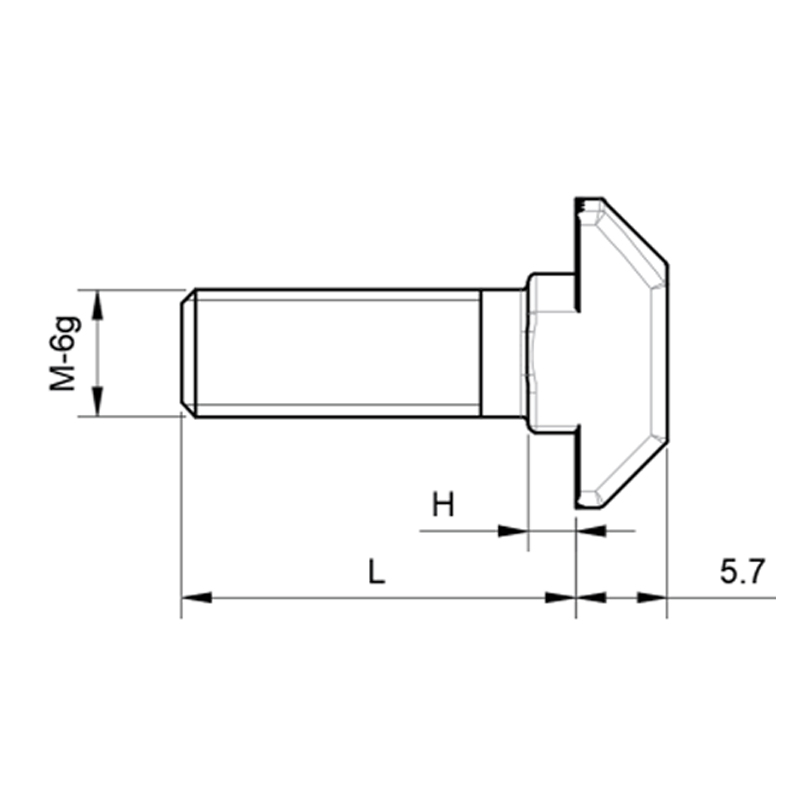

  • 2303.010.101
    2303.010.101
    2303.010.101

    2303.010.101

    2303.010.101 2303.010.101
    Contact us
    Part No.
    Thread
    L
    H
    Surface
    Material
    Weight(g)
    2303.010.101
    M8x20
    20
    4
    Plain
    SS304
    13.00
    2303.010.102
    M8x25
    25
    4
    Plain
    SS304
    14.50
    2303.010.103
    M8x30
    30
    4
    Plain
    SS304
    16.00
    ×

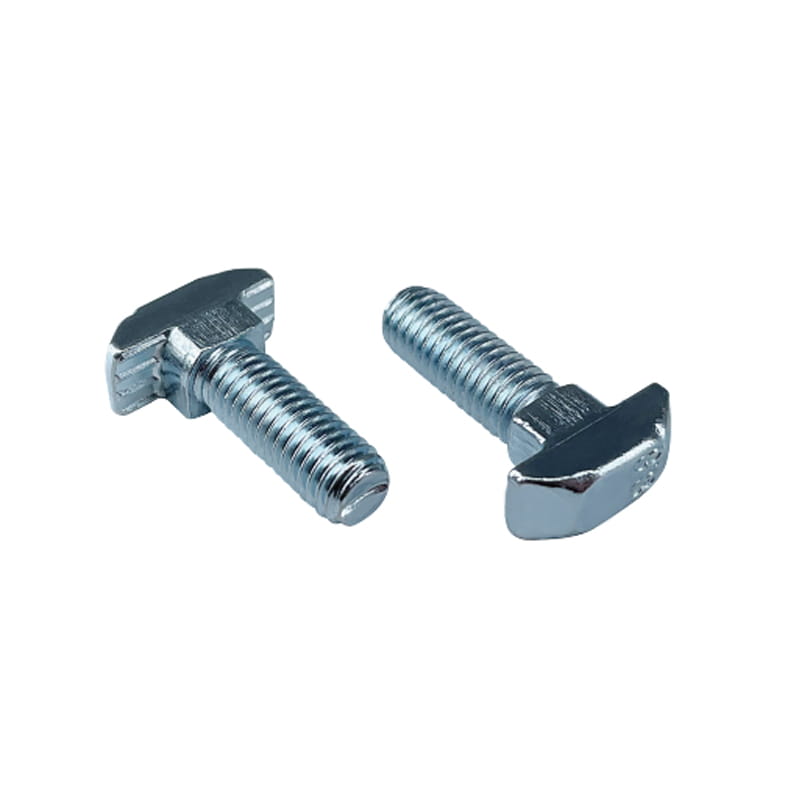

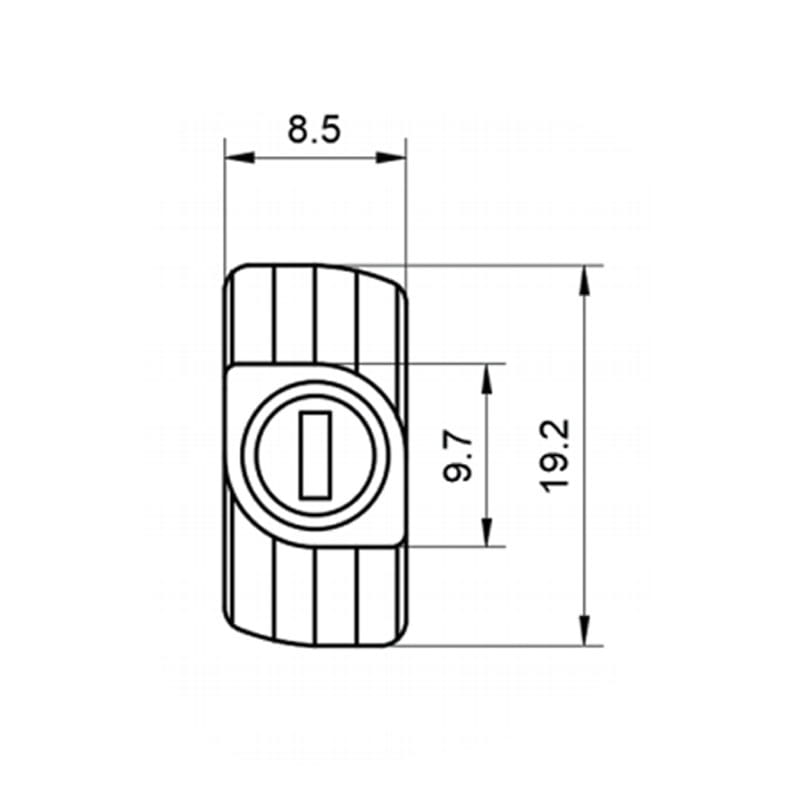

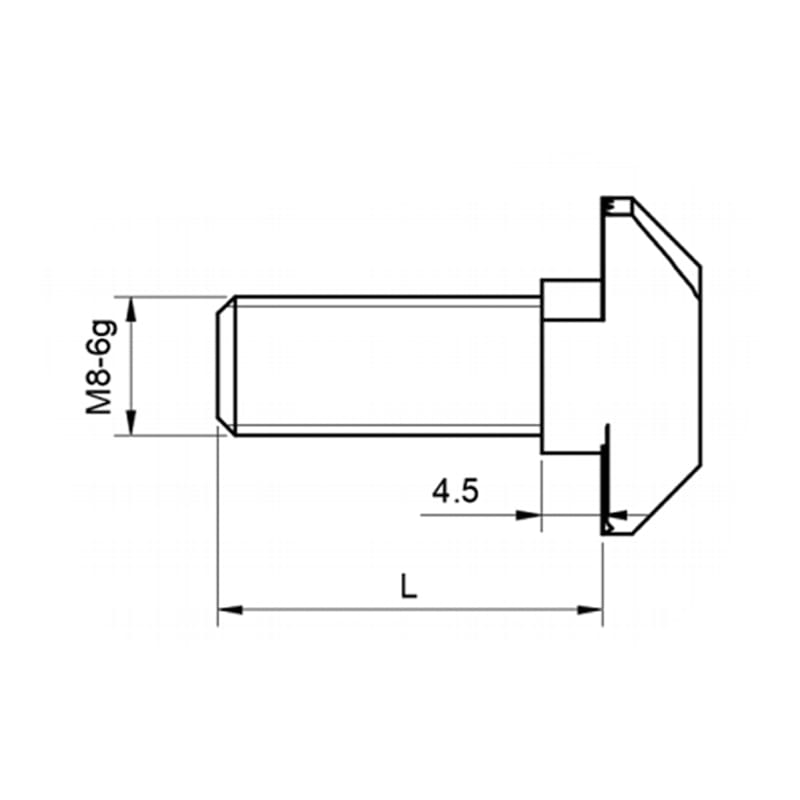

  • 2308.010.001
    2308.010.001
    2308.010.001

    2308.010.001

    2308.010.001 2308.010.001
    Contact us
    Part No.
    Thread
    Surface
    Material
    Weight(g)
    2308.010.001
    20
    Zinc plated
    Carbon steel
    12.30
    2308.010.002
    25
    Zinc plated
    Carbon steel
    14.30
    ×
Introducing Profile T Bolts—a cornerstone of modular assembly solutions crafted with over 19 years of expertise. Profile T Bolts are integral components designed to seamlessly integrate with T-slotted aluminum extrusion profiles, revolutionizing the way structures are built across diverse industries.
Application and Function:
Profile T Bolts are specifically engineered to provide secure and flexible connections within T-slotted profiles. These specialized bolts feature a T-shaped head that fits effortlessly into the T-slots, while the threaded shaft accommodates various fasteners. Their primary function is to anchor components within the profile, enabling the swift assembly and reconfiguration of structures. Industries such as manufacturing, automation, robotics, and beyond rely on Profile T Bolts for their versatile and efficient connection capabilities.
Core Performance and Advantages:
The core performance of Profile T Bolts lies in their precision engineering and impeccable adaptability. Designed to seamlessly align with T-slotted profiles, these bolts deliver robust connections that withstand a range of loads and forces. The streamlined design eliminates the need for intricate fastening methods, translating to significant time and labor savings during assembly.
The advantages of Profile T Bolts encompass:
Efficient Assembly: Profile T Bolts simplify the assembly process, reducing complexities and facilitating rapid construction.
Flexibility: Their design allows for easy reconfiguration, enabling quick adjustments and modifications to the structure.
Reliable Performance: Precision engineering ensures dependable and consistent performance, maintaining structural integrity over time.
Time and Labor Savings: The streamlined assembly process leads to reduced labor requirements, contributing to overall cost savings.
Versatility: Designed to cater to a multitude of applications, Profile T Bolts offer solutions across diverse industries.
At the heart of our Profile T Bolts is a blend of nearly two decades of experience and an unwavering commitment to professional quality control. Our state-of-the-art automated production process ensures consistency and precision in every bolt we manufacture. Rigorous 100% inspection before shipping is a testament to our dedication to delivering only the highest quality products to our customers.
Profile T Bolts epitomize the synergy of innovation and precision, honed by years of experience. Assembled with diligence and subjected to stringent quality control, these bolts redefine structural integrity and assembly efficiency while maintaining the highest standards of performance and functionality.
About Minde
Ningbo Minde Technology Co., Ltd.
Ningbo Minde Technology Co., Ltd.
The company was established in 2004 and has passed ISO9001, SGS, and RoHS certification. To create an ideal green enterprise, protect limited resources, and reduce waste and pollution, our products have passed SGS environmental testing and comply with the EU RoHS directive. As China Profile T Bolts / Hammer Head Bolts Suppliers and T Bolts / Hammer Head Bolts Factory, production area 12,000㎡, Two office areas 350㎡, Have 65 Experienced team-member. The major production process includes tooling designing & making, die casting, forging, stamping, precision machining, drilling, surface plating, Intelligent infrared detecting and automation packing, etc. Mostly exported to more than 35 countries and regions, major markets are the USA, Europe, the Middle East, and Southeast Asia.
Certificate Of Honor
  • SGS -RoHs testing 02 SHAEC22002232201
  • Environmental System
  • Health System
  • Quality System
  • Test Report
  • Test Report
News
Message Feedback
T Bolts / Hammer Head Bolts Industry knowledge
1. Structural design and material selection for profile T bolts / hammer head bolts
profile T bolts and hammer head bolts exhibit unique features in structural design and material selection that focus more on practicality and performance optimization than traditional bolts. Profile T Bolts get their name from the T-shape of their heads, a design that allows them to provide greater contact area and holding power when tightening. The head usually has grooves or grooves, which help prevent the bolt from turning when stressed, improving its tightening effect. In contrast, Hammer Head Bolts have a unique hammer head shape that allows the hammer head bolt to better transmit force when torque is applied, resulting in a higher tightening effect.
When it comes to choosing materials, Profile T Bolts and Hammer Head Bolts are typically made from materials like high-strength alloy steel or stainless steel. These materials have excellent mechanical properties and corrosion resistance, and can maintain stable performance in various harsh environments. In addition, according to specific engineering needs, special materials, such as high-temperature-resistant alloy steel or coating materials, can also be selected to meet the requirements for use in special environments. The choice of materials is not only related to the performance and durability of the bolts, but also directly affects the safety and reliability of the engineering project.
Therefore, the structural design and material selection of profile T bolts and hammer head bolts are important factors that need to be carefully considered in the engineering design. Through reasonable design and selection of high-quality materials, the bolts can be ensured to have stable performance and reliable fixing effects during use, thereby improving the quality and safety of engineering projects.

2. How to install and secure profile T bolts / hammer head bolts
How you install and secure profile T bolts / hammer head bolts is a critical step in ensuring their retention and longevity. Compared with ordinary bolts, due to its special structural design, more attention to details is required during the installation process, and appropriate methods are adopted to ensure that they are correctly fixed.
Before installing the bolts, you must carefully check the size and depth of the bolt holes to make sure they will match the bolts. The diameter and depth of the bolt hole should be consistent with the bolt specifications and requirements to ensure that the bolt can be fully embedded and provide sufficient holding force. In addition, you also need to ensure that the surface of the bolt hole is clean to prevent dust and impurities from affecting the bolt's fixing effect.
During the installation process, you need to use the appropriate tools and equipment to apply the appropriate torque and ensure that the bolts are installed correctly. The special head designs of Profile T Bolts and Hammer Head Bolts may require special securing tools or clamps to ensure they are secured correctly. During the tightening process, torque needs to be gradually applied and appropriate adjustments made as needed to ensure that the bolts achieve the desired fixing effect.
During the installation process, you also need to pay attention to the positioning and direction of the bolts to ensure that they fit well with other components and can provide effective support and fixation. After the installation is completed, the bolts need to be inspected and tested to ensure that their fixing effect and performance meet the requirements, and necessary measures are taken to adjust and improve.
The method of installing and fastening profile T bolts and hammer head bolts is an important aspect of a project that requires special attention. Through reasonable installation and fixation, the bolts can be ensured to achieve the best fixing effect and ensure the safety and reliability of the project.

3. Performance evaluation and standards compliance for profile T bolts / hammer head bolts
Performance evaluation of profile T bolts / hammer head bolts is a critical step in ensuring their quality and reliability. Through comprehensive evaluation and testing of bolt performance, potential problems can be discovered in time and corresponding measures can be taken to improve and optimize.
Performance evaluation typically includes testing and analysis of aspects such as the bolt's mechanical properties, corrosion resistance, and wear resistance. These tests can be completed through tensile tests, torsion tests, impact tests, etc. to verify the performance and performance of the bolts under various stress conditions. In addition, the material and surface treatment of the bolts need to be tested and analyzed to ensure that they comply with relevant standards and specifications.
During the performance evaluation process, it is necessary to refer to various international standards and industry specifications to ensure the scientificity and rigor of test methods and evaluation standards. Only through rigorous performance evaluation and standards compliance testing can the quality and reliability of profile T bolts / hammer head bolts be ensured to meet the requirements and standards of engineering projects.
When selecting suppliers and products, engineers and designers need to fully consider their performance evaluation and standard compliance, and choose high-quality products that meet the requirements. Through qualified suppliers and products, the quality and reliability of bolts can be ensured, ensuring the smooth progress and safe operation of engineering projects. Therefore, performance evaluation and standards compliance are important safeguards to ensure the quality and reliability of profile T bolts / hammer head bolts and need to be fully valued and applied in engineering projects.
