T Slot Profile Inner Connector Custom
Home / Products / Profile Connecting Systems / T Slot Profile Inner Connector

T Slot Profile Inner Connector Manufacturers

Product Categories

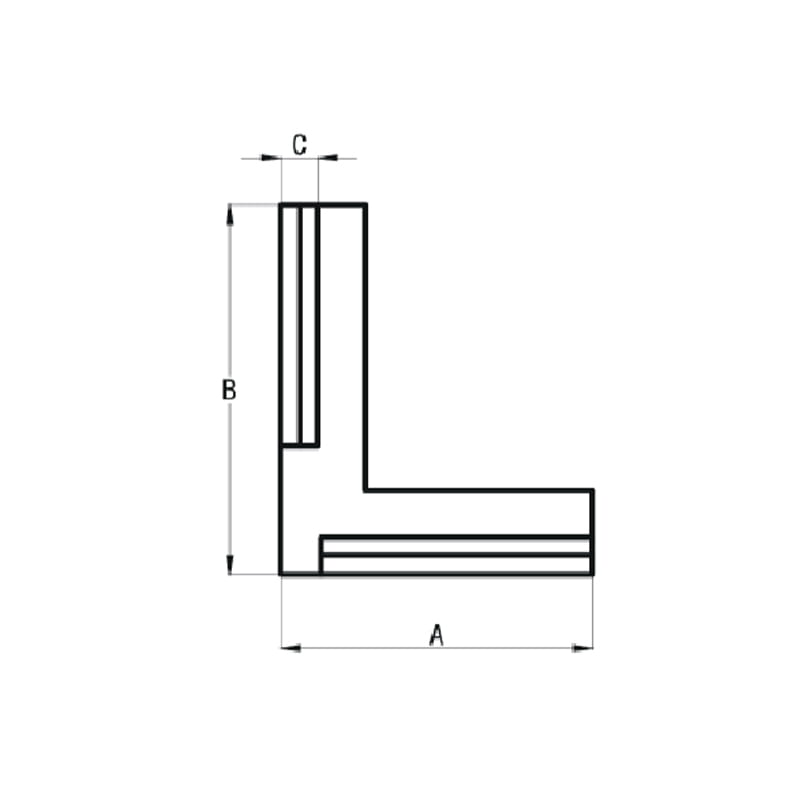

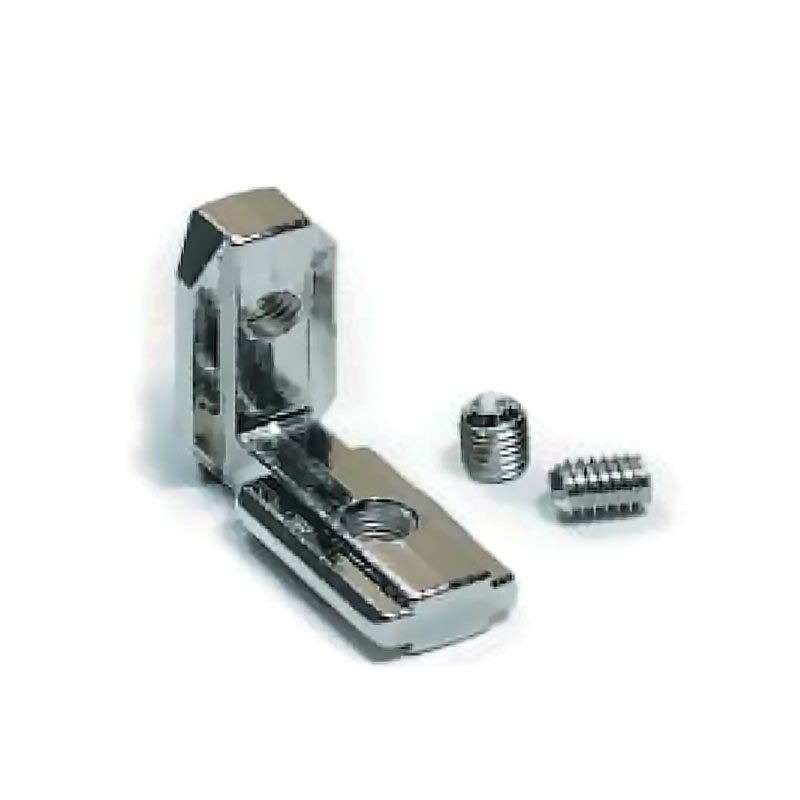

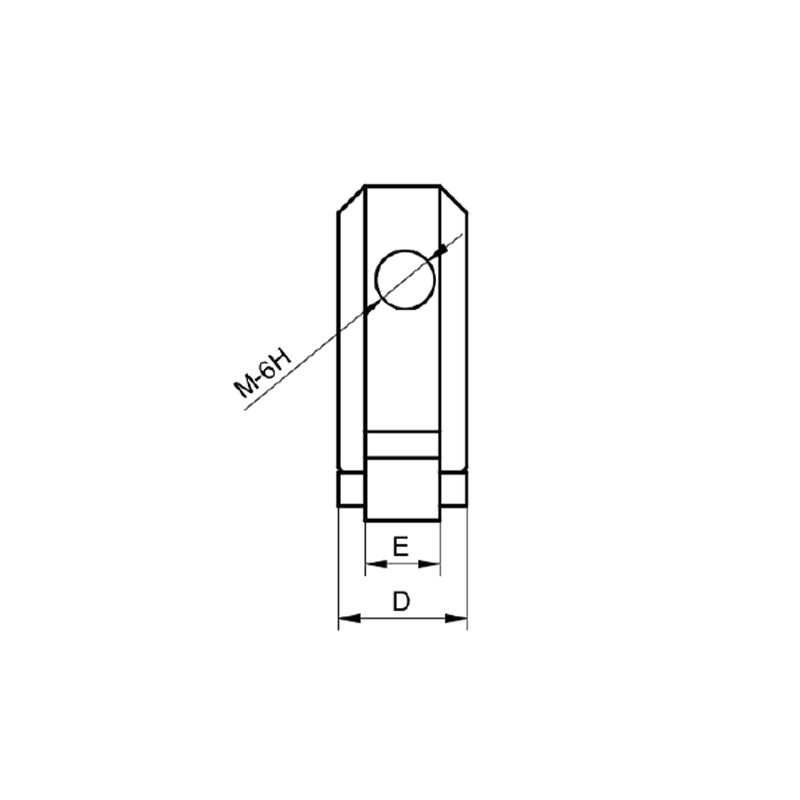

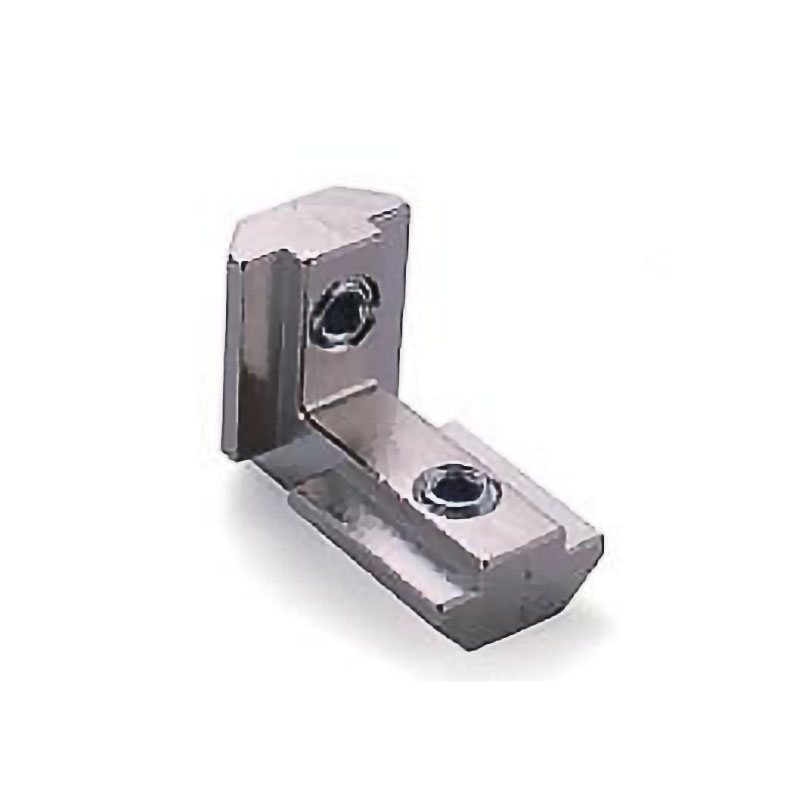

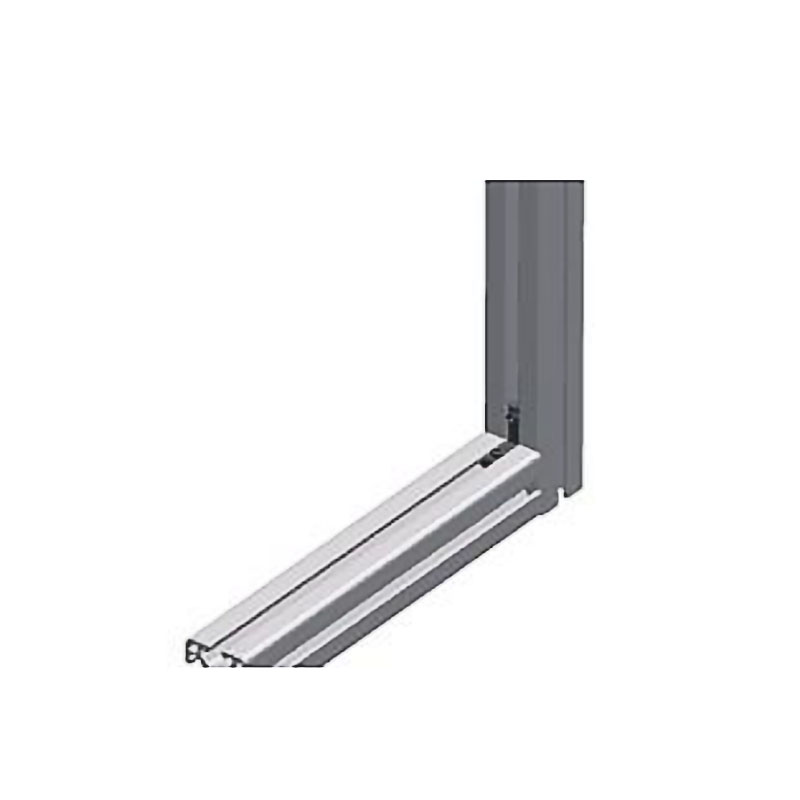

  • 3904.005.001
    3904.005.001
    3904.005.001

    3904.005.001

    3904.005.001 3904.005.001 3904.005.001
    Contact us

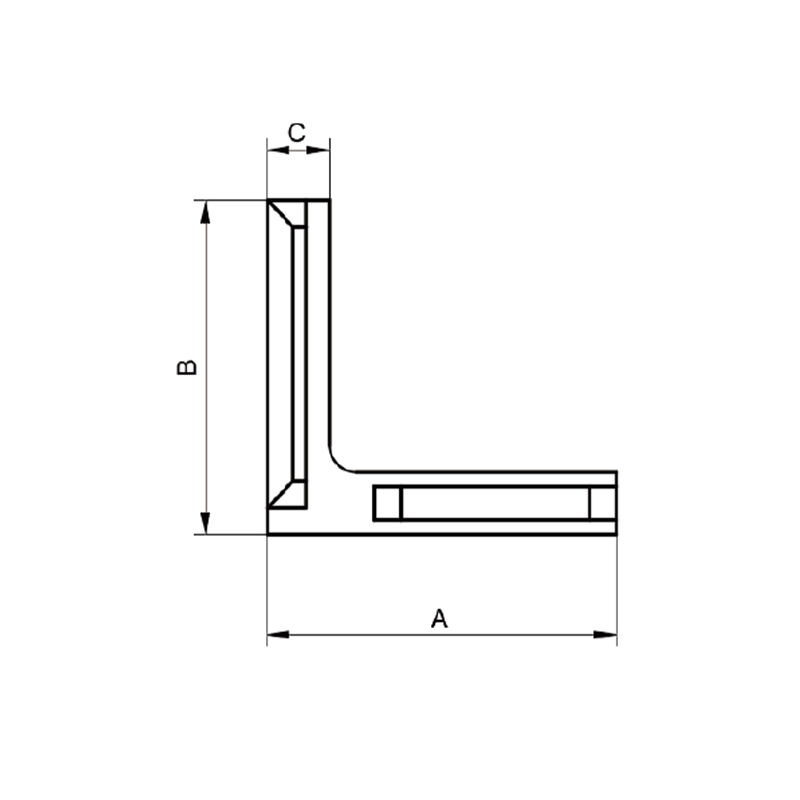

    Part No.
    A
    B
    C
    D
    E
    Surface
    Material
    Weight(g)
    3904.005.001
    25
    26
    4.7
    9.5
    5.8
    Zinc plated
    Zinc alloy
    8.60
    3904.006.001
    30.3
    35.5
    7.2
    14.5
    7.5
    Zinc plated
    Zinc alloy
    27.00
    3904.008.001
    30
    36
    8.6
    17.3
    7.8
    Zinc plated
    Zinc alloy
    33.00
    3904 010.001
    31.4
    37.9
    8.6
    18.9
    9.9
    Zinc plated
    Zinc alloy
    42.00
    ×

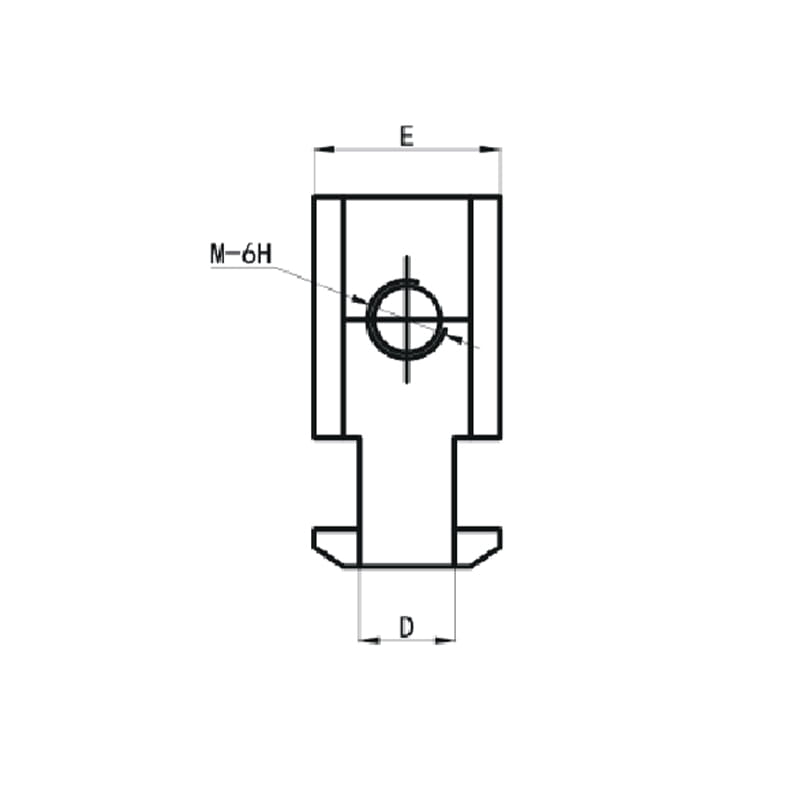

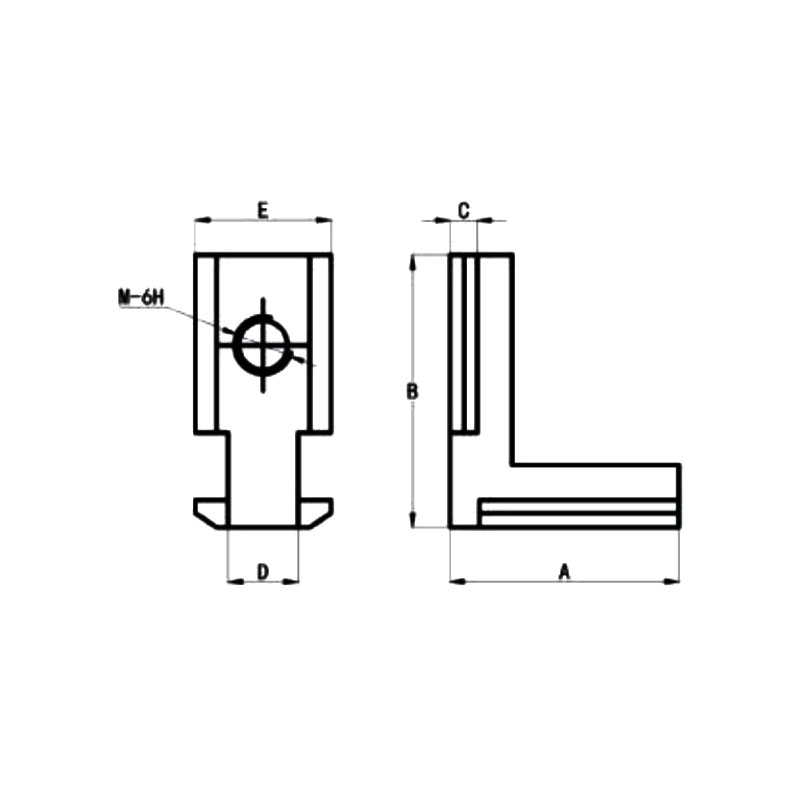

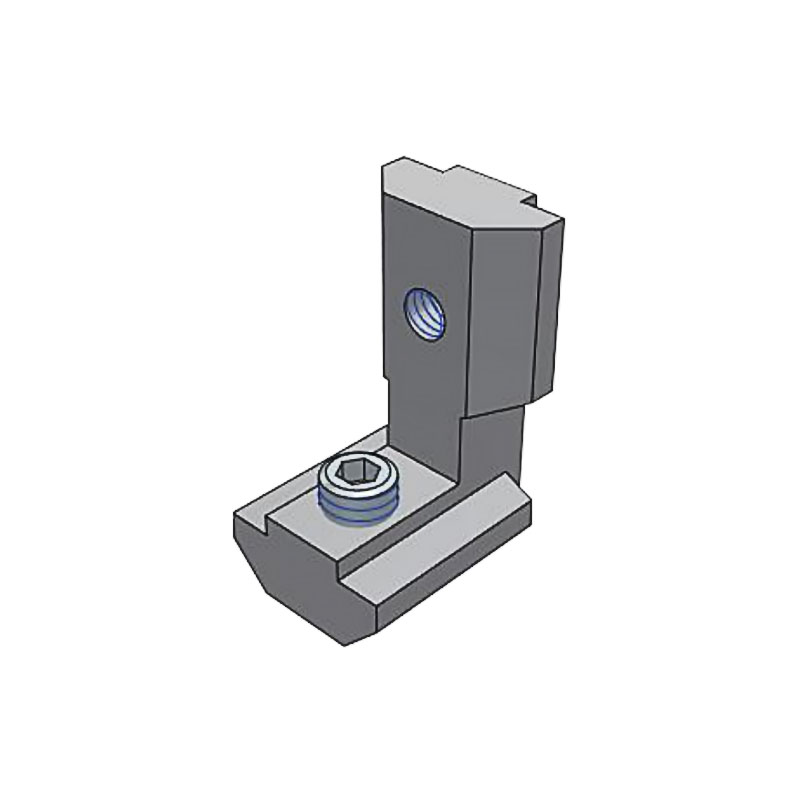

  • 3905.006.001
    3905.006.001
    3905.006.001

    3905.006.001

    3905.006.001 3905.006.001 3905.006.001
    Contact us
    Part No.
    A
    B
    C
    D
    E
    Surface
    Material
    Weight(g)
    3905.006.001
    21
    21
    3
    6
    11
    Zinc plated
    Zinc alloy
    7.90
    3905.008.002
    21
    30
    5.5
    8
    16
    Zinc plated
    Zinc alloy
    23.20
    3905.010.003
    32
    38
    4
    10
    19
    Zinc plated
    Zinc alloy
    43.50
    ×
  • 3904.005.001
    3904.005.001
    3904.005.001

    3904.005.001

    3904.005.001 3904.005.001
    Contact us
    Part No. A  B C D E Surface Material Weight
    3904.005.001 25 26 4.7 5.6 9.5 zinc plated zinc alloy 8.60
    3904.006.001 30.3   35.5  7.2 7.5  14.5 zinc plated zinc alloy 27.00
    3904.008.001 30 36 8.6 7.8  17.3 zinc plated zinc alloy 33.00
    3904.010.001 31.4 37.9 8.6 9.9 18.9 zinc plated zinc alloy 42.00
    ×
  • 3905.006.001
    3905.006.001
    3905.006.001

    3905.006.001

    3905.006.001 3905.006.001
    Contact us
    Part No. A  B C D E Surface Material Weight
    3905.006.001 21 21 3 6 11 zinc plated zinc alloy 7.90
    3905.008.002 21  30  5.5 8 16 zinc plated zinc alloy 23.20
    3905.010.003 32 38 4 10 19 zinc plated zinc alloy 43.50
    ×

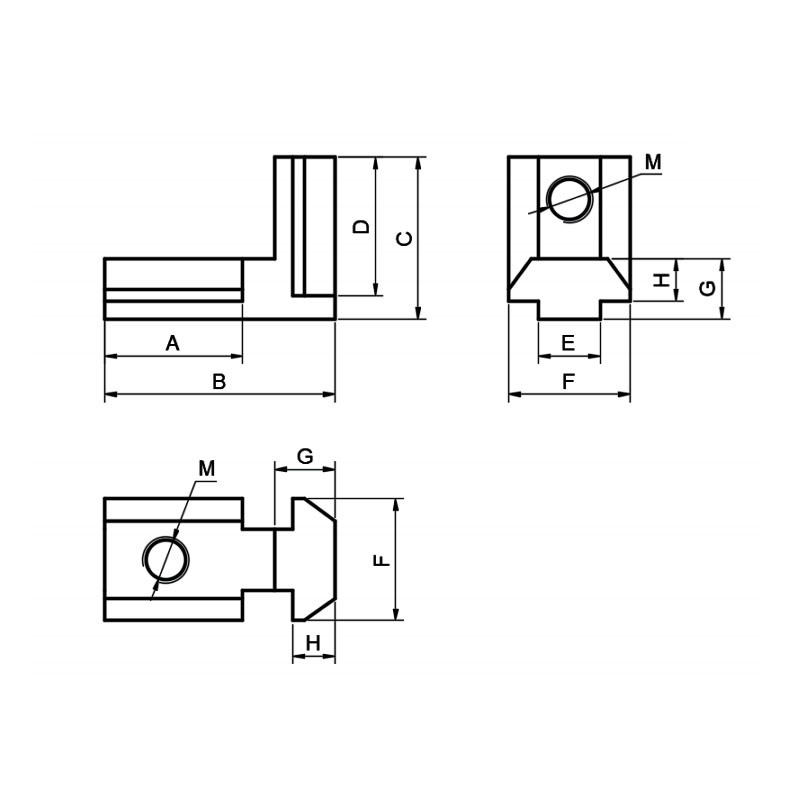

  • 3920.008.003
    3920.008.003
    3920.008.003

    3920.008.003

    3920.008.003
    Contact us
    Part No. A B C D E F G H M
    3920.008.003 18 30 21 18 8 15.8 7.8 5.5 M6
    3920.010.004 25 38 32 28 9.8 19 8.7 3.8 M8

    Part No. Specification Surface Material Weight
    3920.008.003 30*21*15.8-M6 zinc plated zinc alloy 24.00
    3920.010.004 38*32*19-M8 zinc plated zinc alloy 44.00
    ×
At Ningbo Minde Technology, our T-slot Profile Inner Connector is a pinnacle of precision engineering and versatility, designed to elevate the possibilities in modular structure assembly.

Precision Craftsmanship:
Our T-slot Profile Inner Connector embodies precision in every detail. Crafted with meticulous attention, these connectors ensure flawless alignment and assembly of T-slot aluminum profiles, facilitating the creation of robust and flexible structures.

Seamless Integration:
These connectors are engineered for seamless integration with T-slot aluminum profiles, offering a quick and hassle-free assembly process. Whether you are building frames, enclosures, workstations, or automation systems, our Inner Connectors guarantee secure and efficient connections.

Strength and Durability:
Strength is paramount in automation and manufacturing applications. Our Inner Connectors are built to withstand rigorous demands, ensuring that your structures remain stable and dependable over time.

Customization Options:
We understand that each project has unique requirements. Therefore, our team collaborates closely with you to provide Inner Connectors tailored to your exact specifications. Whether it's variations in dimensions, hole placements, or material preferences, we have the expertise to deliver customized solutions.

In-house Production Excellence:
Minde Technology takes pride in its in-house production capabilities. This ensures that every T-slot Profile Inner Connector undergoes strict quality control measures, resulting in consistent performance and reliability.

Endless Possibilities:
With the T-slot Profile Inner Connector from Ningbo Minde Technology, your projects gain access to limitless possibilities. Our connectors provide the foundation for constructing efficient, adaptable, and professional-grade structures in various industries.

In conclusion, our T-slot Profile Inner Connector is the cornerstone of precision, strength, and versatility in modular structure assembly. With our 19 years of experience and commitment to excellence, we empower your projects with the finest connectors available in the industry. Experience precision engineering at its with Minde Technology.
About Minde
Ningbo Minde Technology Co., Ltd.
Ningbo Minde Technology Co., Ltd.
The company was established in 2004 and has passed ISO9001, SGS, and RoHS certification. To create an ideal green enterprise, protect limited resources, and reduce waste and pollution, our products have passed SGS environmental testing and comply with the EU RoHS directive. As China T Slot Profile Inner Connector Manufacturers and T Slot Profile Inner Connector Suppliers, production area 12,000㎡, Two office areas 350㎡, Have 65 Experienced team-member. The major production process includes tooling designing & making, die casting, forging, stamping, precision machining, drilling, surface plating, Intelligent infrared detecting and automation packing, etc. Mostly exported to more than 35 countries and regions, major markets are the USA, Europe, the Middle East, and Southeast Asia.
Certificate Of Honor
  • SGS -RoHs testing 02 SHAEC22002232201
  • Environmental System
  • Health System
  • Quality System
  • Test Report
  • Test Report
News
Message Feedback
T Slot Profile Inner Connector Industry knowledge
1.Introduction to T Slot Profile Inner Connectors
T slot profile inner connectors form the cornerstone of contemporary modular framing systems, serving as indispensable components in a myriad of industrial and construction applications. At their essence, these connectors facilitate the seamless integration and assembly of T slot profiles, providing the structural foundation for versatile frameworks. In the realm of modular construction, T slot profile inner connectors have emerged as key enablers, fostering the creation of adaptive, scalable, and customizable structures. In the dynamic landscape of industrial design and construction, the role of T-slot profile inner connectors cannot be overstated. These connectors act as the linchpin, binding together individual T slot profiles to form robust, load-bearing frameworks. By seamlessly interfacing with the profiles, they ensure that the resulting structures possess the necessary strength and stability to withstand the rigors of diverse operational environments.

2.Structural Integrity and Stability of T-Slot Profile Inner Connectors
Central to the appeal of T slot profile inner connectors is their inherent ability to enhance structural integrity. This characteristic makes them instrumental in supporting frameworks subjected to various forces and loads. The connectors' design incorporates features that distribute and absorb stresses efficiently, minimizing the risk of deformation or failure. Engineers and designers can confidently rely on these connectors to deliver a level of stability that is paramount in critical applications, ranging from machinery frames in manufacturing plants to structural components in construction projects. The structural integrity provided by T slot profile inner connectors contributes to the longevity of assembled frameworks. In industries where the durability of structures is paramount, such as in manufacturing or heavy-duty machinery installations, these connectors play a pivotal role in ensuring that frameworks maintain their strength and stability over time.

3.Ease of Assembly and Disassembly
T slot profile inner connectors excel in streamlining the assembly and disassembly processes, providing a user-friendly experience for designers and engineers alike. The connectors are engineered with precision, featuring intuitive designs that simplify the construction phase. This not only expedites the initial assembly of frameworks but also facilitates subsequent modifications and adjustments. The ease of disassembly is equally crucial in dynamic industries where reconfigurations and modifications are frequent. T slot profile inner connectors enable swift dismantling without compromising the overall structural integrity. This flexibility in assembly and disassembly not only saves valuable time but also minimizes operational downtime during modifications, contributing to enhanced overall efficiency in industrial and construction settings. T slot profile inner connectors stand as the linchpin that seamlessly unites structural components, providing a foundation of stability and versatility. Their impact extends beyond mere connectivity, influencing the ease of assembly, structural robustness, and adaptability of frameworks in diverse applications. As industries continue to demand flexible and efficient solutions, the significance of T slot profile inner connectors in modern construction and industrial design is set to endure and evolve.
