Profile Threaded Base Plates/ End Cover Custom
Home / Products / T Slot Floor Elements / Profile Threaded Base Plates/ End Cover

Profile Threaded Base Plates/ End Cover Manufacturers

Product Categories

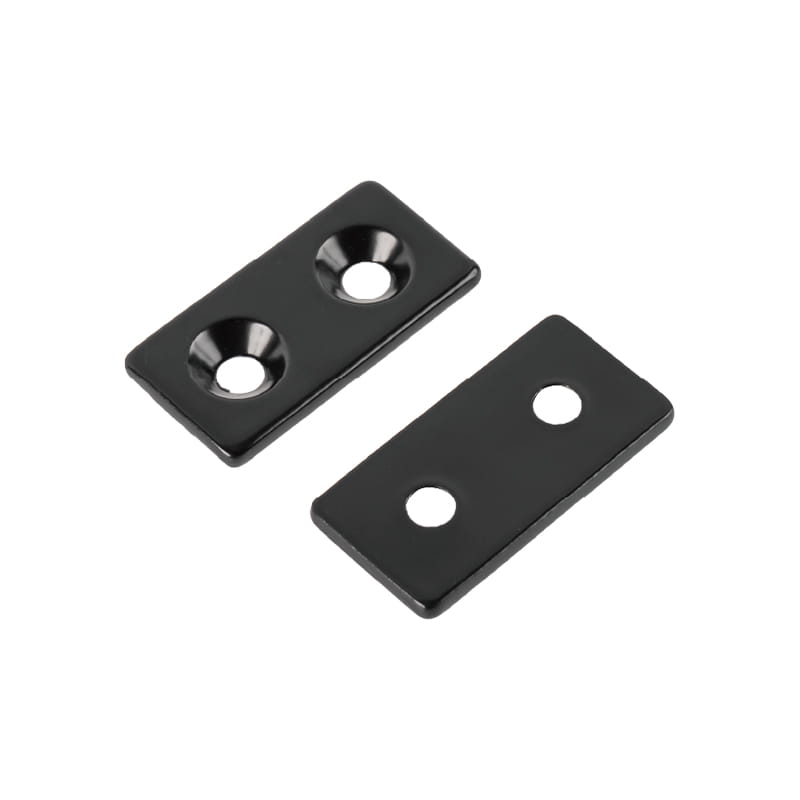

  • 3218.005.001
    3218.005.001
    3218.005.001

    3218.005.001

    3218.005.001 3218.005.001
    Contact us

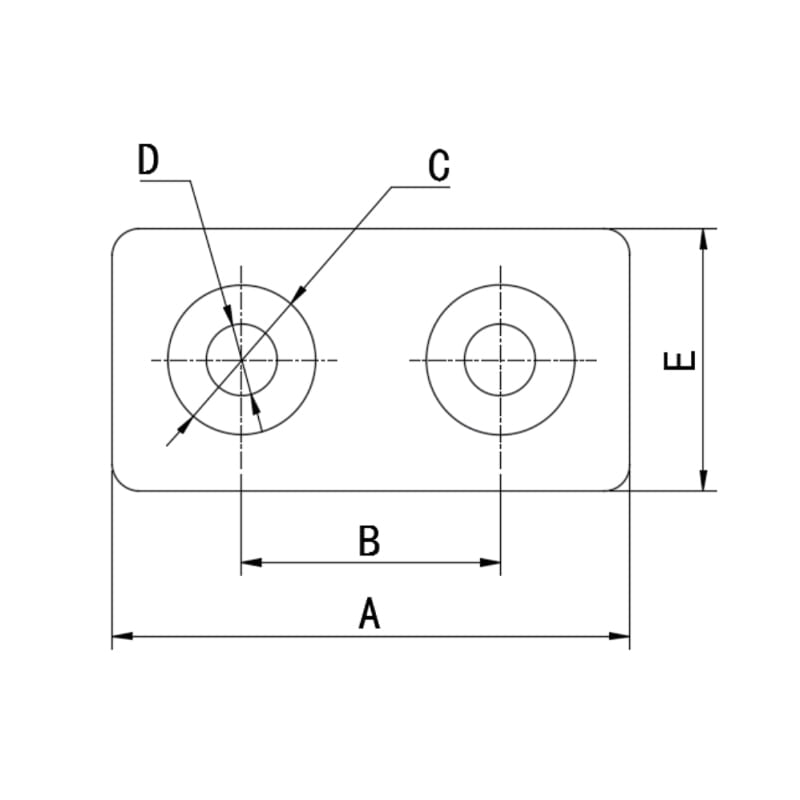

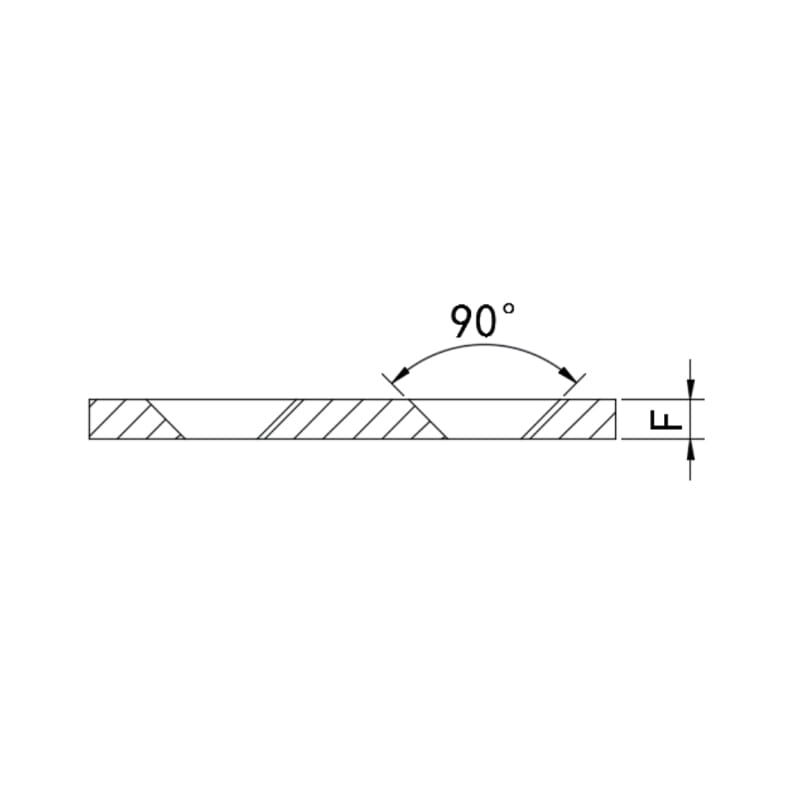

    Part No.
    A
    B
    C
    D
    E
    F
    Surface
    Material
    Weight(g)
    3218.005.001
    40
    20
    φ11.5
    φ5.5
    20
    3
    Black paint
    Carbon Steel
    16.02
    3218.006.002
    60
    30
    φ13
    φ6.6
    30
    3
    Black paint
    Carbon Steel
    38.74
    3218.008.003
    80
    40
    φ18
    φ 11
    40
    4
    Black paint
    Carbon Steel
    91.05
    3218.010.004
    90
    45
    φ19.2
    φ9.5
    45
    5
    Black paint
    Carbon Steel
    148.00
    ×

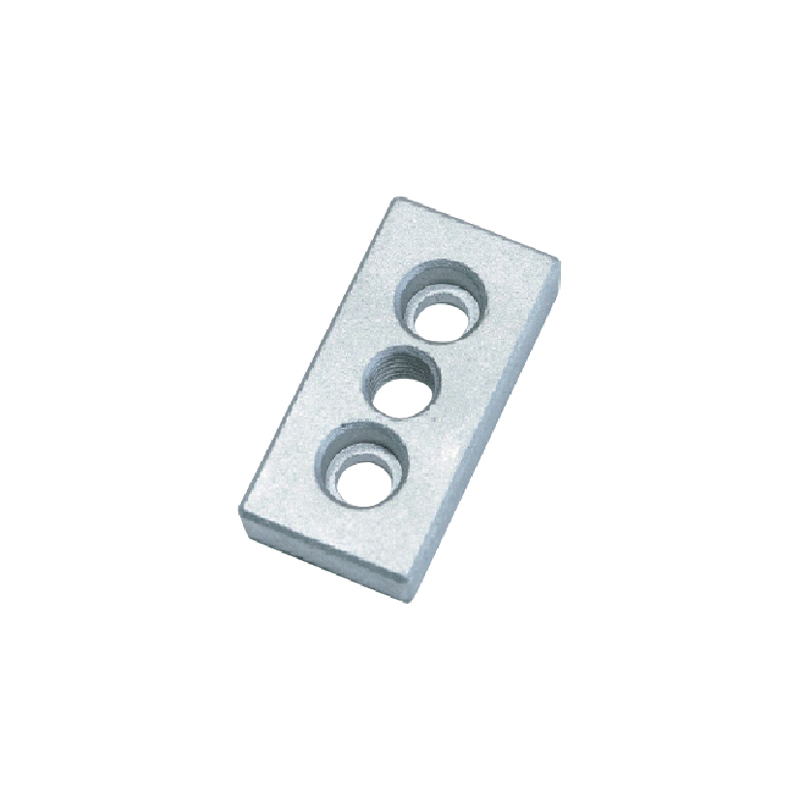

  • 3204.006.004
    3204.006.004
    3204.006.004

    3204.006.004

    3204.006.004 3204.006.004
    Contact us

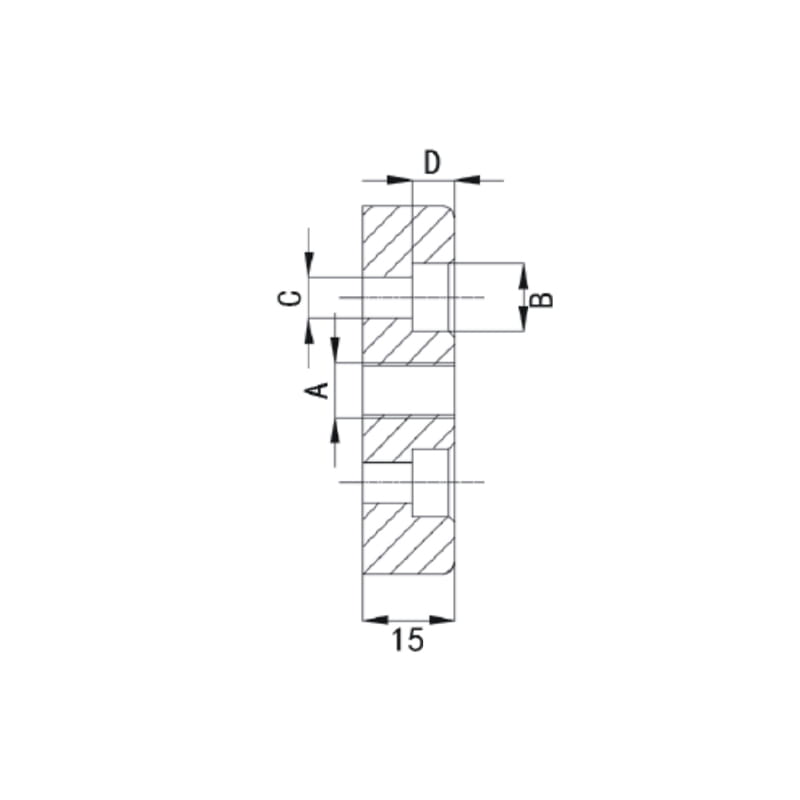

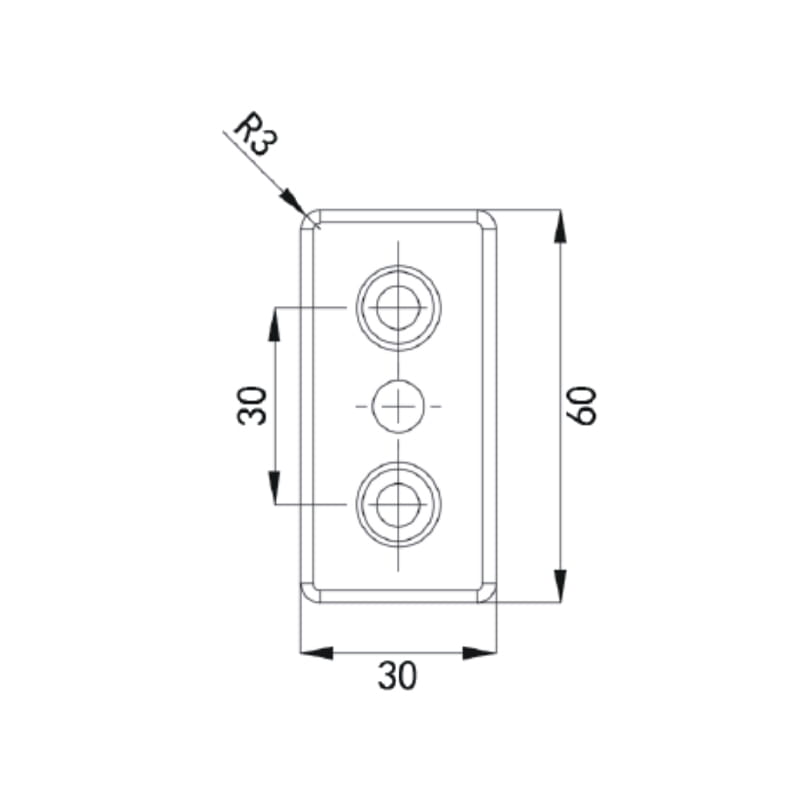

    Part No.
    A
    B
    C
    D
    Surface
    Material
    Weight
    3204.006.004
    M8
    φ11
    φ6.6
    7
    Shot Blasting
    Alu alloy
    48.50
    3204.006.005
    M10
    φ11
    φ6.6
    7
    Shot Blasting
    Alu alloy
    48.00
    3204.006.006
    M12
    φ11
    φ6.6.
    7
    Shot Blasting
    Alu alloy
    45.50
    3204.006.011
    M14
    φ11
    φ6.6
    7
    Shot Blasting
    Alu alloy
    44.30
    3205.006.004
    M8
    φ15
    φ9
    9
    Shot Blasting
    Alu alloy
    42.00
    3205.006.005
    M10
    φ15
    φ9
    9
    Shot Blasting
    Alu alloy
    40.50
    3205.006.006
    M12
    φ15
    φ9
    9
    Shot Blasting
    Alu alloy
    39.00
    3205.006.011
    M14
    φ 15
    φ9
    9
    Shot Blasting
    Alu alloy
    38.00
    ×
Ningbo Minde Technology is delighted to introduce our exceptional product, Profile Threaded Base Plates, renowned for their precision, efficiency, and uncompromising quality. These innovative solutions are tailored to meet the needs of clients in both the discerning European and US markets.

Efficiency through Aluminum Die Casting:
Our Profile Threaded Base Plates are manufactured using the highly efficient aluminum die-casting process. This process not only ensures precise results but also allows for cost-effective production, making it an ideal choice for your projects.

Rigorous Quality Testing:
Quality is our top priority. Each Profile Threaded Base Plate undergoes stringent testing to meet and exceed your expectations. Our commitment to quality guarantees that every base plate is of the standard, offering reliability and durability in diverse applications.

Precision Engineering for Global Excellence:
Our base plates are engineered with precision to uphold the standards of accuracy and performance. Crafted with meticulous attention to detail, they offer exceptional strength and durability, meeting the stringent requirements of clients across Europe and the United States.

Versatile Applications:
These base plates are designed to cater to a wide range of applications, making them suitable for industrial machinery, automation systems, assembly lines, and more. They provide a sturdy foundation for your projects.

Global Market Focus:
We understand the unique requirements and expectations of clients in both the European and US markets. Our Profile Threaded Base Plates are meticulously crafted to not only meet but surpass those expectations, ensuring they align with global quality standards.

Cost-Effective Solutions:
Our efficient aluminum die-casting process allows us to offer cost-effective solutions without compromising on quality. This ensures that you receive exceptional value for your investment.

In-House Production Excellence:
Minde Technology takes immense pride in its in-house production capabilities. This guarantees that every Profile Threaded Base Plate undergoes rigorous quality control measures, ensuring consistent performance and reliability.

Elevate Your Global Projects with Minde Technology:
With Profile Threaded Base Plates from Ningbo Minde Technology, you elevate the precision, efficiency, and quality of your global projects. Our solutions provide the foundation for constructing machinery, automation systems, and equipment that meet and exceed the expectations of clients in Europe and the United States.

In conclusion, our Profile Threaded Base Plates offer precision, efficiency, and reliability that cater to the exacting demands of both the European and US markets. With our 19 years of experience and unwavering commitment to excellence, we provide top-tier solutions that enhance the success of your global projects. Experience precision engineering at its with Minde Technology.
About Minde
Ningbo Minde Technology Co., Ltd.
Ningbo Minde Technology Co., Ltd.
The company was established in 2004 and has passed ISO9001, SGS, and RoHS certification. To create an ideal green enterprise, protect limited resources, and reduce waste and pollution, our products have passed SGS environmental testing and comply with the EU RoHS directive. As China Profile Threaded Base Plates/ End Cover Manufacturers and Profile Threaded Base Plates/ End Cover Suppliers, production area 12,000㎡, Two office areas 350㎡, Have 65 Experienced team-member. The major production process includes tooling designing & making, die casting, forging, stamping, precision machining, drilling, surface plating, Intelligent infrared detecting and automation packing, etc. Mostly exported to more than 35 countries and regions, major markets are the USA, Europe, the Middle East, and Southeast Asia.
Certificate Of Honor
  • SGS -RoHs testing 02 SHAEC22002232201
  • Environmental System
  • Health System
  • Quality System
  • Test Report
  • Test Report
News
Message Feedback
Profile Threaded Base Plates/ End Cover Industry knowledge
What are the installation procedures for Profile Threaded Base Plates/ End Cover?
The installation procedures for Profile Threaded Base Plates/End Covers may vary depending on the specific design and application. However, here is a general guide that you can follow:
Prepare the Work Area:Ensure that the work area is clean, well-lit, and free from any obstructions.Verify that all necessary tools and equipment are available.
Inspect Components:Before installation, inspect the Profile Threaded Base Plates/End Covers for any damage or defects.Check that the threads are clean and free from debris.
Verify Compatibility:Confirm that the Profile Threaded Base Plates/End Covers are compatible with other components in the assembly.
Apply Lubrication:If specified by the manufacturer, apply a suitable lubricant to the threads to facilitate smooth installation.
Align and Position:Align the Profile Threaded Base Plates/End Covers with the corresponding components.Carefully position the threaded portion in alignment with the receiving threads or anchor points.
Hand Tightening:Begin by hand-tightening the Profile Threaded Base Plates/End Covers into the designated location.Ensure that the threads engage smoothly without cross-threading.
Torque to Specifications:Once hand-tightened, use a torque wrench to tighten the Profile Threaded Base Plates/End Covers to the specified torque value.Follow the manufacturer's recommendations for torque settings to prevent over-tightening or under-tightening.
Check Alignment:Verify that the Profile Threaded Base Plates/End Covers are correctly aligned and seated in their intended position.Confirm that the installation meets any specified alignment tolerances.
Inspect for Deformities:Inspect the installed components for any signs of deformation or irregularities.Address and rectify any issues before continuing with the installation.
Secure Additional Components:If the Profile Threaded Base Plates/End Covers are part of a larger assembly, secure additional components as per the overall design.
Final Inspection:Conduct a final inspection of the entire installation to ensure that all components are properly installed, aligned, and torqued.

Address any discrepancies or issues as needed.
Documentation:Document the installation process, including torque values, alignment checks, and any deviations from the standard procedure.
Understand the Profile Threaded Base Plates/ End Cover
Let's delve into a better understanding of Profile Threaded Base Plates and End Covers:
Profile Threaded Base Plates:
Definition: Profile Threaded Base Plates are structural components used in various industries for connecting and anchoring threaded rods or other elements to a base or surface.Purpose: They provide a stable and secure base for threaded rods, bolts, or other fasteners, often used in structural frameworks, machinery, or equipment installations.
End Covers:
Definition: End Covers are protective components that cap the ends of structures, pipes, or threaded elements. In the context of threaded base plates, they are designed to cover and protect the exposed ends of threaded rods or bolts.Purpose: End Covers serve several purposes, including preventing corrosion, protecting against physical damage, and enhancing the aesthetic finish of the installation.
Key Features:
Threaded Design: Profile Threaded Base Plates have threaded holes or surfaces to accommodate threaded rods or bolts securely.Durable Materials: These components are typically constructed from materials such as steel, stainless steel, or other alloys for strength and durability.Corrosion Resistance: Many Profile Threaded Base Plates and End Covers are designed with coatings or materials that resist corrosion, ensuring long-term performance.
Applications:
Construction: Used in the construction industry for securing structural elements like beams and columns.Machinery: Employed in machinery installations to anchor components securely.Infrastructure: Applied in various infrastructure projects for stability and load distribution.
Variations:
Different Sizes: Available in various sizes to accommodate different thread dimensions and load-bearing requirements.Custom Configurations: Some manufacturers offer customization options to meet specific project needs.End Cover Designs: End covers may vary in design, including domed, flat, or even decorative styles.
Installation Considerations:
Torque Specifications: Proper torque application during installation is crucial for ensuring the stability and load-bearing capacity of the assembly.Alignment: Correct alignment of Profile Threaded Base Plates is essential to prevent issues during the installation process.Compatibility: Ensuring compatibility with other structural components is key for a seamless installation.
