T Slot Covers OEM/ODM
Home / Products / T Slot Covers

T Slot Covers Manufacturers

Product Categories

  • T slot Cover S6/S8/S10

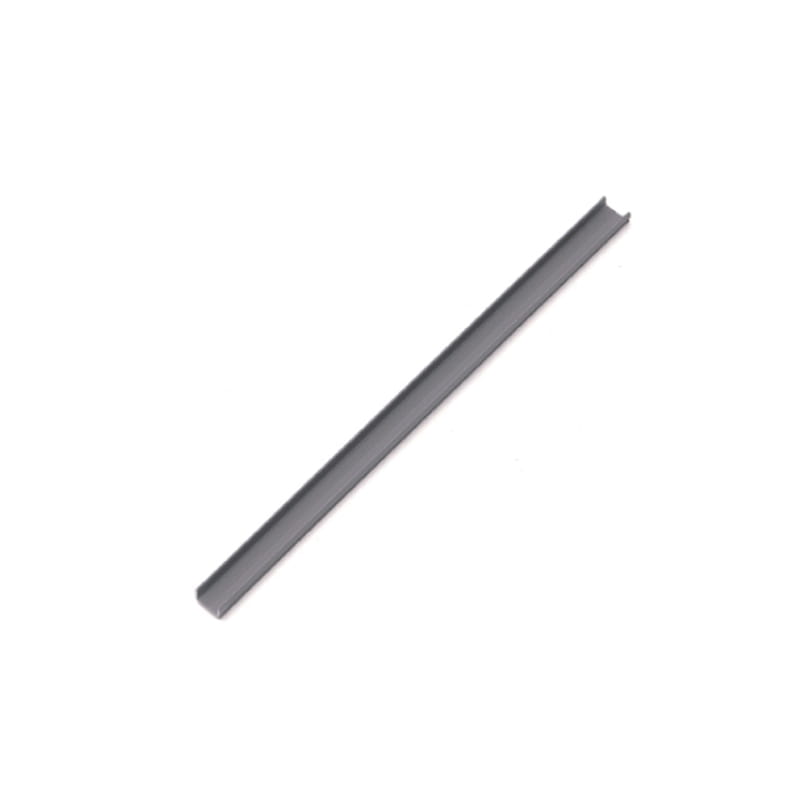

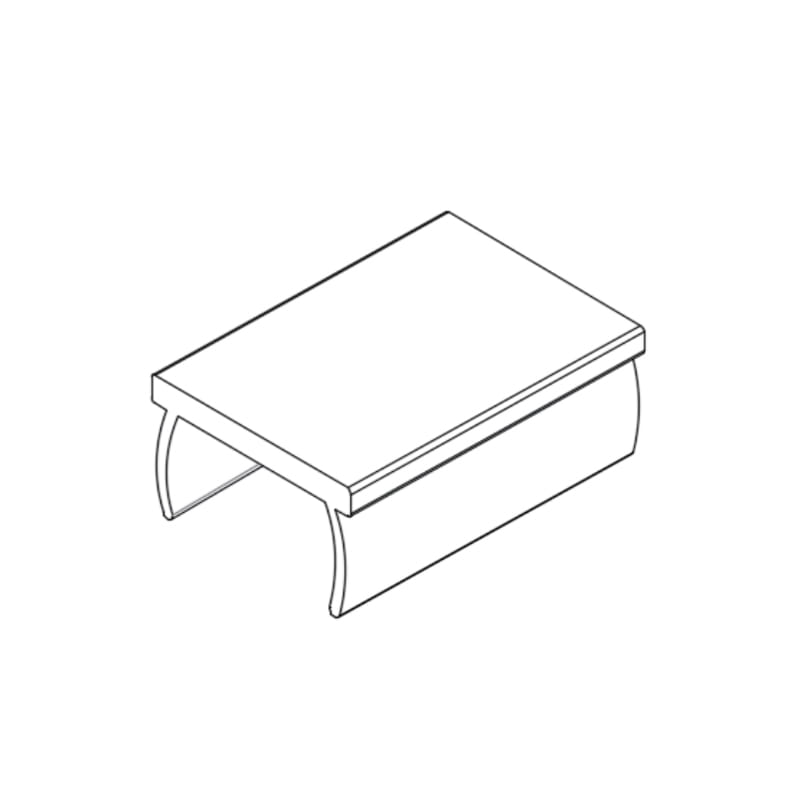

    T slot Cover S6/S8/S10
    T slot Cover S6/S8/S10

    T slot Cover S6/S8/S10

    T slot Cover S6/S8/S10 T slot Cover S6/S8/S10
    Contact us

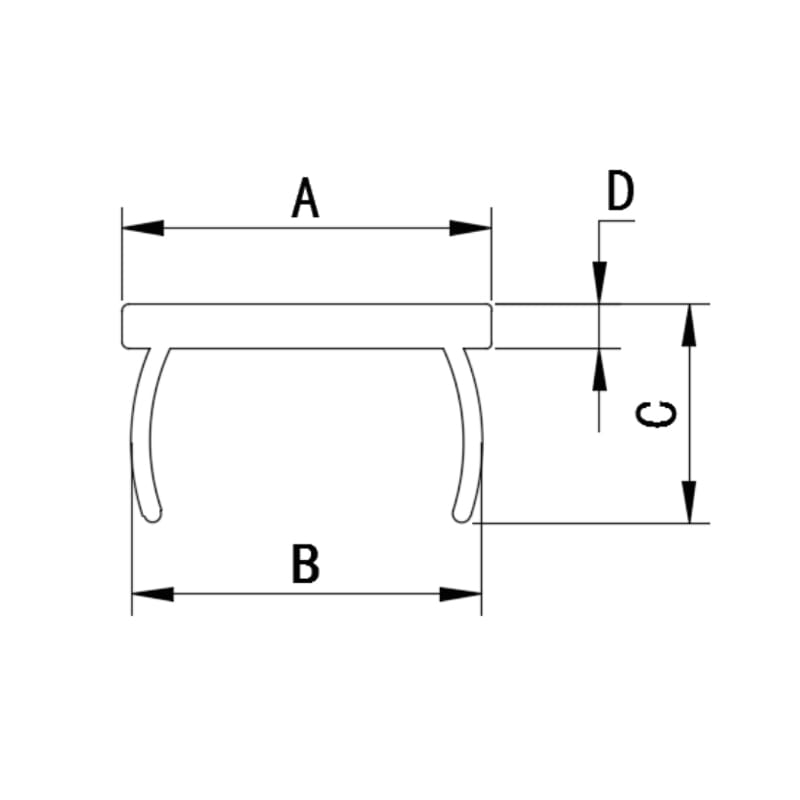

    Part No.
    A
    B
    C
    D
    Specification
    Surface
    Material
    Weight (g)
    2712.006.001
    7
    6.9
    4.4
    0.7
    S6
    Grey
    PE
    15.50
    2712.006.201
    7
    6.9
    5
    0.7
    S6
    Black
    PVC
    15.50
    2712.008.002
    10
    9.2
    6.4
    0.9
    S8
    Grey
    PE
    26.00
    2712.008.202
    10
    8.8
    5.2
    0.9
    S8
    Black
    PVC
    26.00
    2712.010.103
    11.9
    12.2
    6.9
    0.8
    S10
    Grey
    PE
    37.00
    2712.010.203
    11.7
    11.1
    6.2
    0.9
    S10
    Black
    PVC
    37.00
    ×
  • T slot Cover S8

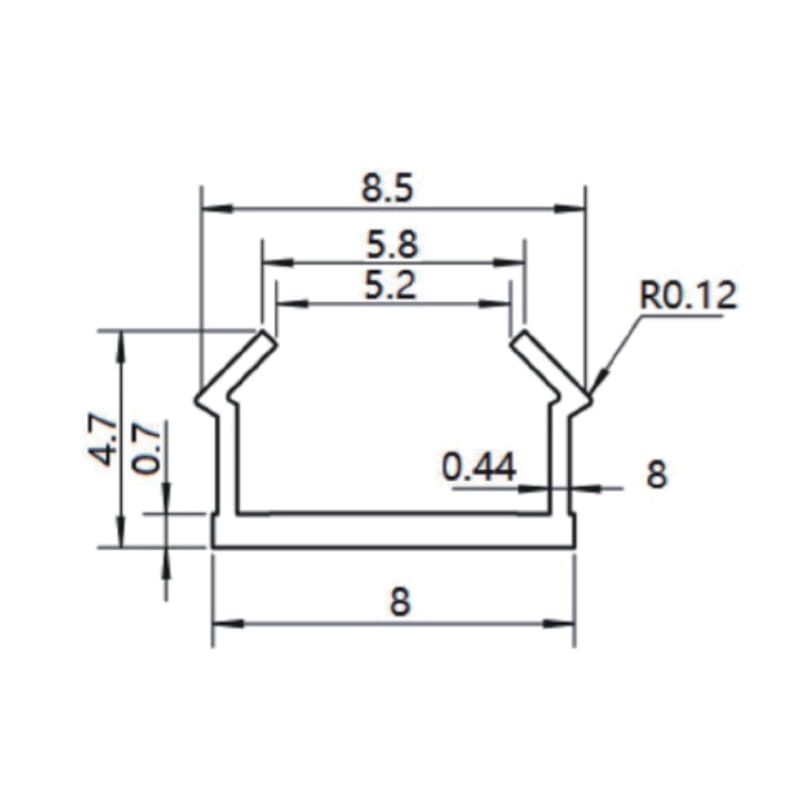

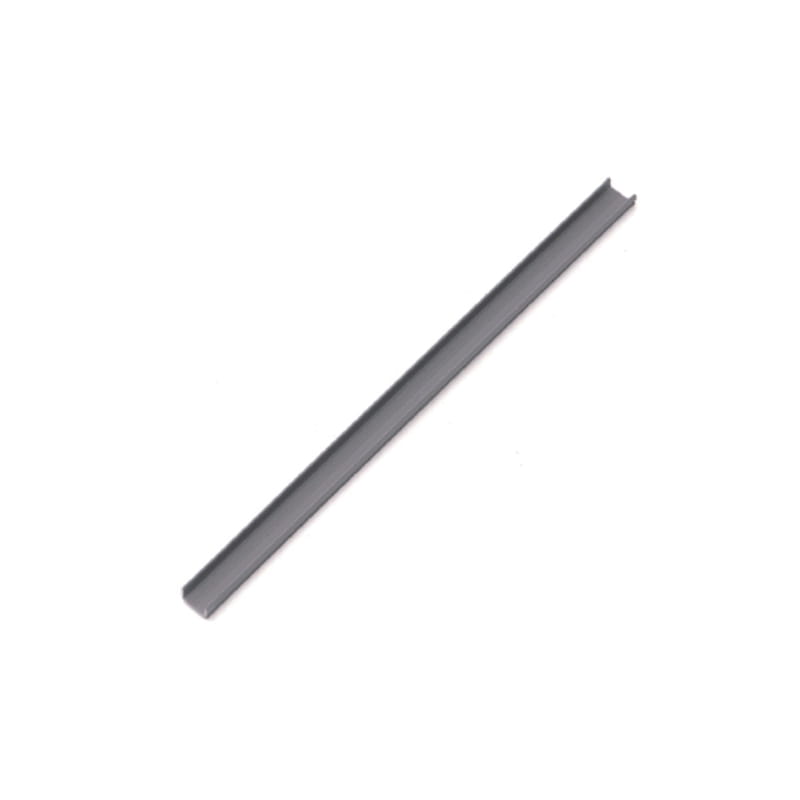

    T slot Cover S8
    T slot Cover S8

    T slot Cover S8

    T slot Cover S8
    Contact us
    Part No.
    Specification
    Surface
    Material
    Weight(g)
    2707.008.001
    S8
    Grey
    PVC
    17.10/M
    ×
At Ningbo Minde Technology, we take immense pride in our Slot Covers, which epitomize unmatched quality, adaptability, and exceptional value. Here's how we encourage clients to make us their top choice:

1. Premium Materials for Lasting Performance:
Our Slot Covers are expertly crafted from high-performance materials including PE, PVC, and TPV. These materials are chosen for their durability, resistance to environmental factors, and long-lasting performance, ensuring your investments are well-protected.

2. Customization for Precision Fit:
We understand that every project is unique. Our Slot Covers can be customized to meet your precise requirements, guaranteeing that they integrate seamlessly into your designs and provide protection.

3. Versatile Color Options:
We offer a range of color options, including black and grey, to complement different aesthetics and environments. Whether it's slot 6, slot 8, or slot 10, we have a Slot Cover that matches your specific needs.

4. Comprehensive Product Range:
Our wide variety of Slot Covers caters to different profiles and applications. No matter the profile size or environmental conditions, we have a solution tailored to your exact specifications.

5. Rigorous Testing and Quality Assurance:
Our Slot Covers undergo rigorous testing to ensure they consistently meet and exceed your expectations. Quality control measures are our priority to guarantee reliability and performance.

6. Global Reputation and Local Expertise:
Our global reputation for excellence extends to serving clients in Europe, the United States, and worldwide. Our Slot Covers are designed to excel in diverse markets, adhering to global quality standards.

7. Customer-Centric Approach:
We approach every project with your unique requirements in mind. Our team is dedicated to understanding your needs, providing personalized solutions, and delivering the level of service and support.

8. Competitive Pricing without Compromise:
We firmly believe in offering quality without an extravagant price tag. Our Slot Covers strike the balance between quality and affordability, ensuring exceptional value for your investment.

9. Proven Track Record:
With 19 years of experience, Ningbo Minde Technology has a well-established track record of exceeding client expectations. Our history of success underscores our unwavering commitment to excellence.

10. Elevate Your Projects with Minde Technology:
By choosing Slot Covers from Ningbo Minde Technology, you elevate the protection, reliability, and performance of your projects. Our solutions ensure that your investments are safeguarded for the long term.

In conclusion, we persuade clients to choose our Slot Covers by emphasizing our unwavering commitment to quality, customization options, comprehensive product range, rigorous testing, global reputation, customer-centric approach, competitive pricing, proven track record, and the ability to enhance the success of their projects. Our Slot Covers, made from high-performance materials and available in various colors and sizes, offer durability and performance that set them apart.
About Minde
Ningbo Minde Technology Co., Ltd.
Ningbo Minde Technology Co., Ltd.
The company was established in 2004 and has passed ISO9001, SGS, and RoHS certification. To create an ideal green enterprise, protect limited resources, and reduce waste and pollution, our products have passed SGS environmental testing and comply with the EU RoHS directive. As China T Slot Covers Manufacturers and T Slot Covers Factory, production area 12,000㎡, Two office areas 350㎡, Have 65 Experienced team-member. The major production process includes tooling designing & making, die casting, forging, stamping, precision machining, drilling, surface plating, Intelligent infrared detecting and automation packing, etc. Mostly exported to more than 35 countries and regions, major markets are the USA, Europe, the Middle East, and Southeast Asia.
Certificate Of Honor
  • SGS -RoHs testing 02 SHAEC22002232201
  • Environmental System
  • Health System
  • Quality System
  • Test Report
  • Test Report
News
Message Feedback
T Slot Covers Industry knowledge
Functions of T Slot Covers
T Slot Covers play a key role in mechanical engineering. Their functions cover many aspects, from protecting T-slots to improving the performance of mechanical systems, as follows:
Protective T-slot: T-slot is a common structure in mechanical systems and is used to install and move accessories, sliders, clamps, etc. However, these slots are often exposed and susceptible to external substances such as dust, moisture, metal shavings, etc. One of the main functions of the T-slot envelope is to provide protection and prevent these impurities from entering the slot, thereby reducing the risk of friction, wear and corrosion and extending the service life of the T-slot.
Improved performance: T-slot covers help keep accessories and slides moving smoothly within the T-slot. Envelopes effectively improve the performance of mechanical systems by reducing friction and preventing interference from impurities. This is critical for applications requiring high precision and high-speed operation, as friction and resistance are reduced, thereby increasing the accuracy and efficiency of the equipment.
Dustproof and waterproof: The material of the T-slot cover is usually dustproof and waterproof. This feature enables it to keep mechanical systems clean and dry in harsh working environments, further improving system reliability. Especially when it is necessary to prevent dust or moisture from causing damage to the equipment, the use of T-slot envelopes becomes particularly important.
Protect operator safety: T-slots in mechanical systems may be adjacent to personnel's operating areas. In this case, the T-slot envelope can also provide a physical barrier to prevent operators from accidentally touching mechanical parts, thereby improving work safety.
Adapt to diverse industrial needs: The material selection of T-slot envelopes is diversified and can be customized according to the needs of different industrial environments. The selection of materials such as wear-resistant plastics, rubber and metal alloys enables the T-slot envelope to perform well under various working conditions.

Design features of T Slot Covers
The design features of T Slot Covers are to fully meet the needs of mechanical systems in different working environments, providing protection, improving performance, simplifying maintenance and other functions. The following are common design features of T-slot envelopes:
Modular design: Many T-slot envelopes adopt a modular design, making installation and replacement easier. The modular nature means users can easily remove and replace damaged parts without the need for extensive repairs to the entire system.
Sealed design: In order to prevent external impurities such as dust and moisture from invading the T-slot, many T-slot envelopes adopt a sealed design. The sealing performance ensures a clean environment inside the envelope and reduces the risk of failure of the mechanical system due to contamination.
Corrosion-resistant materials: In view of the possible presence of corrosive chemicals in some industrial environments, some T-slot envelopes are made of corrosion-resistant materials, such as stainless steel or special alloys, to ensure the envelope's long-lasting performance in corrosive environments.
Self-lubricating design: In order to further reduce friction and extend service life, some T-slot envelopes adopt a self-lubricating design. This design feature allows the envelope to automatically provide the right amount of lubrication during operation, reducing friction loss.
